Description:

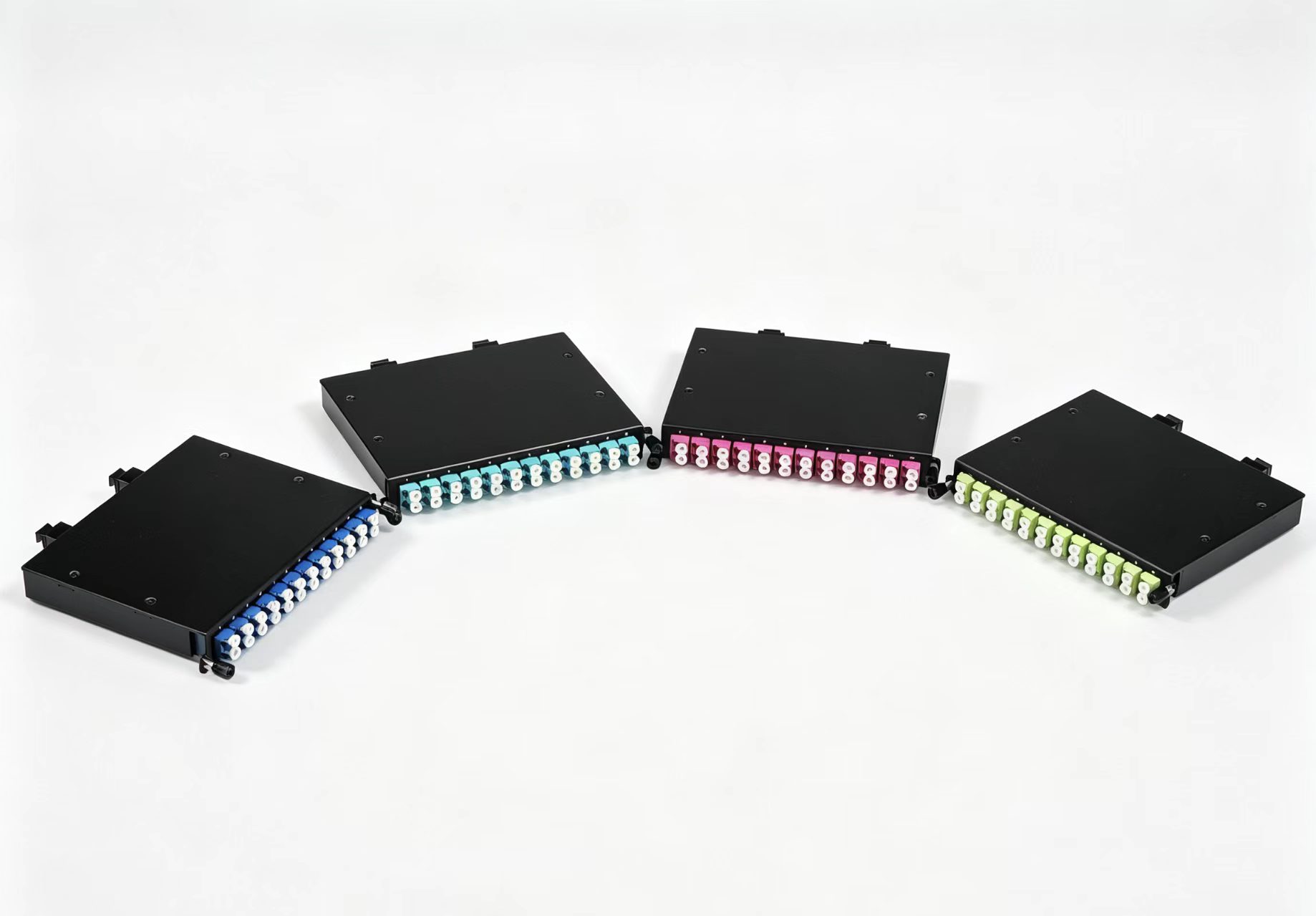

MPO/MTP Cassette Module possess optical fiber branching patch cords inside to split the 12-core
MPO / MTP connector into simplex connector. Simplex or duplex connectors are placed in front of the modules, and one or two or three MPO/ MTP connectors are placed at the back of the modules.The branching patch cord connect the front LC and the rear MPO/MTP connectors. This type of modules can be easily installed in Chassis
Features:
Factory pre-terminated, 100% tested to ensure the transmission performance
Modular design, easy for expansion
Reasonable of optical fiber cable route
Minimize structure and ensure fiber bending radius not less than 30mm
Rapid configuration, reduce installation time
Clear numbering on the panel.
Application:
Data center, Network room
Complied Standards :
Comply with TIA/EIA 604-5, IEC 61754 series standards.

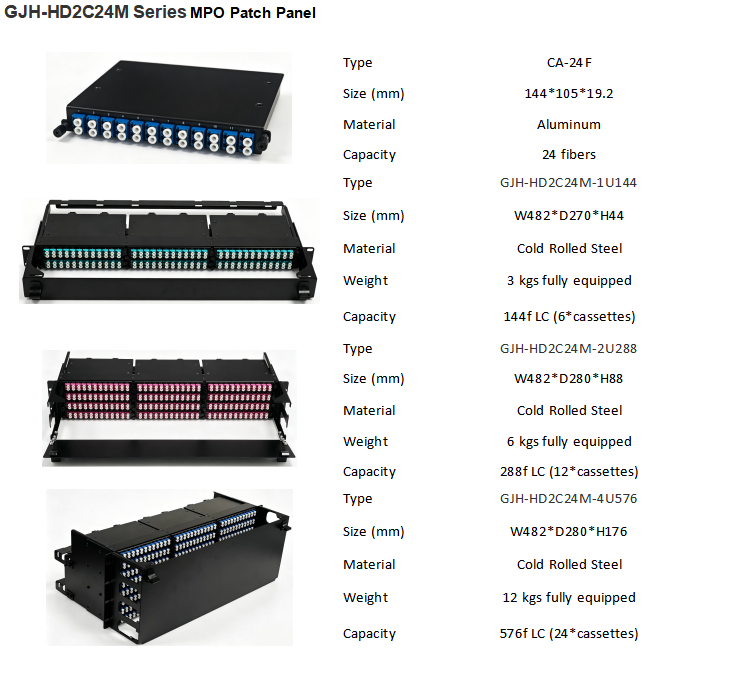

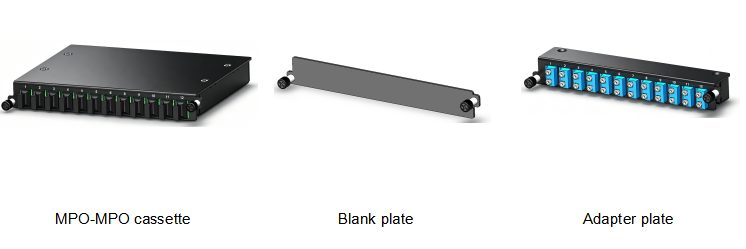

Available Options:

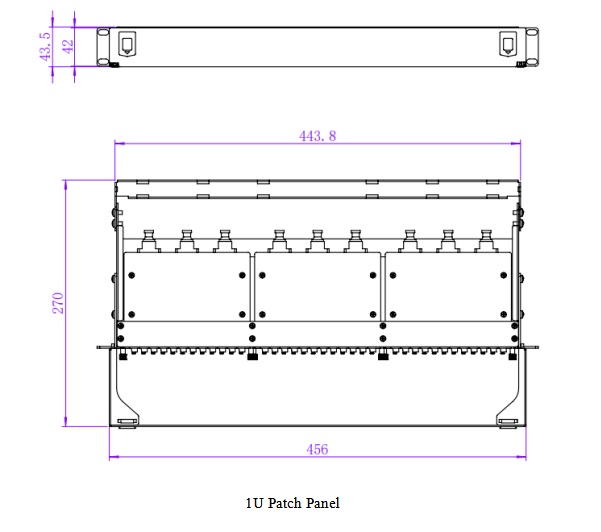

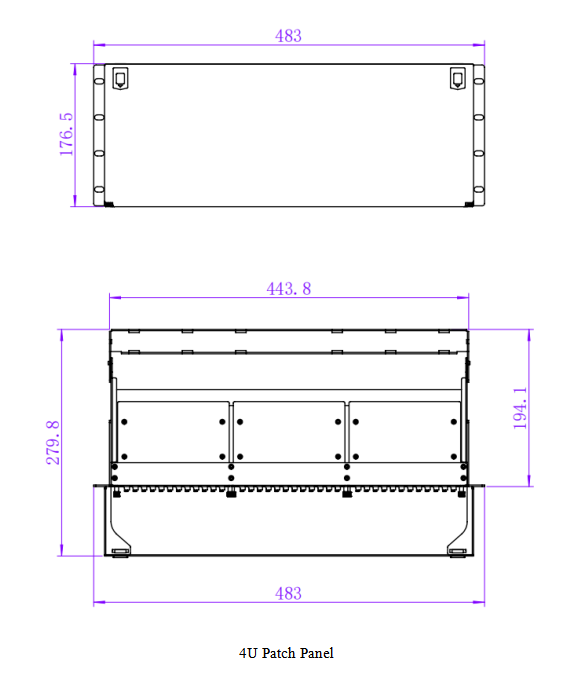

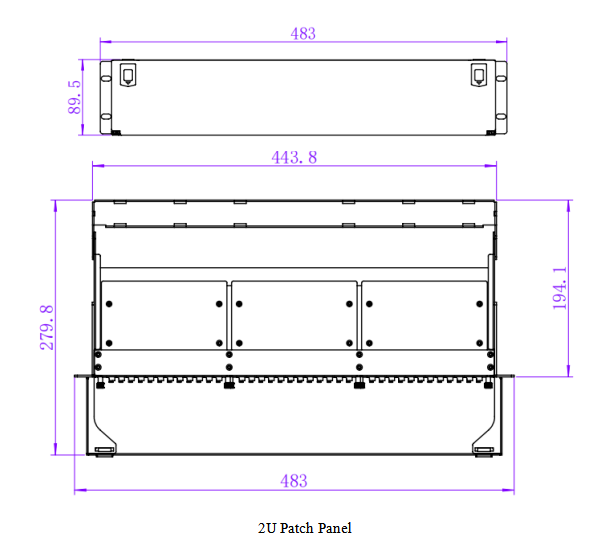

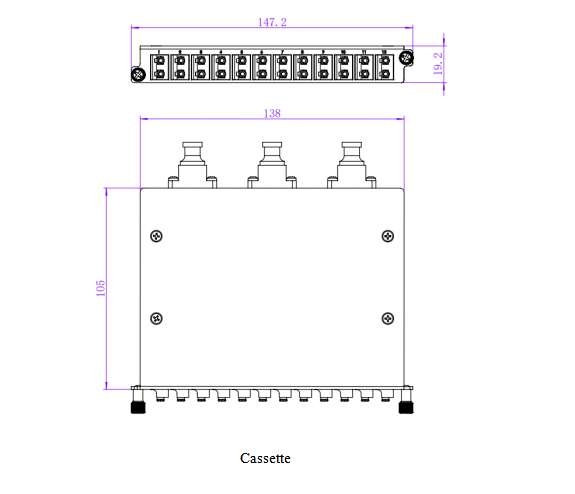

Drawing:

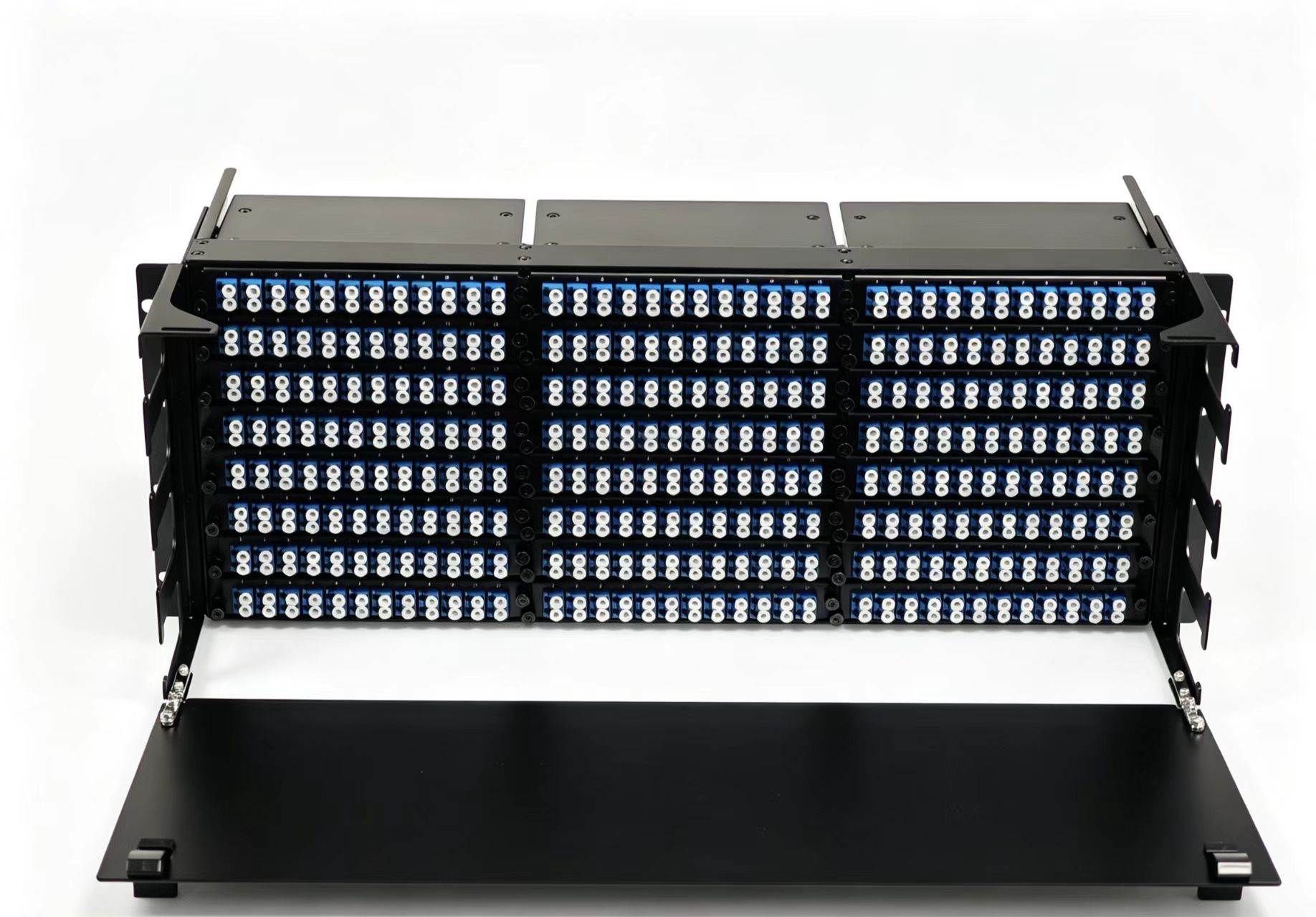

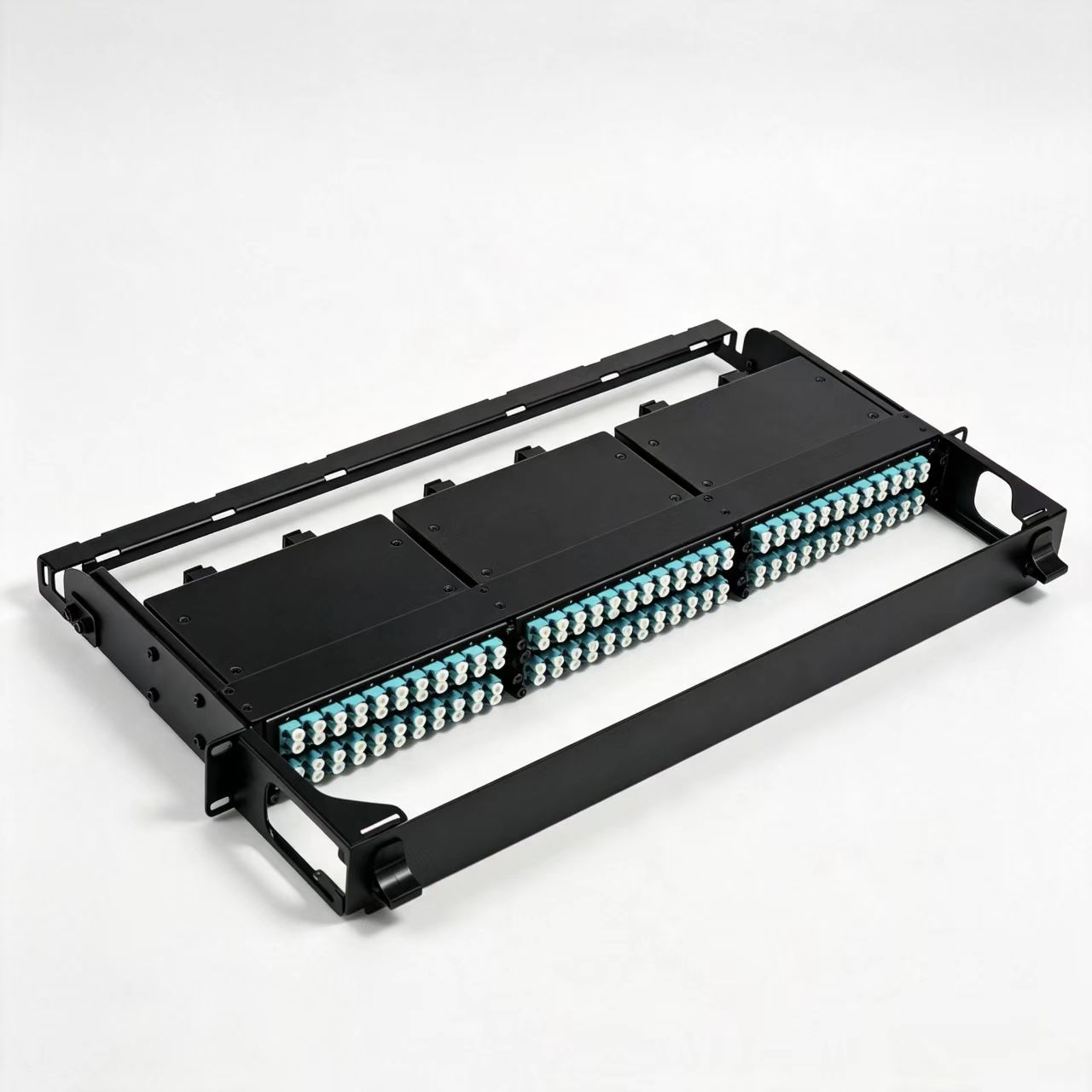

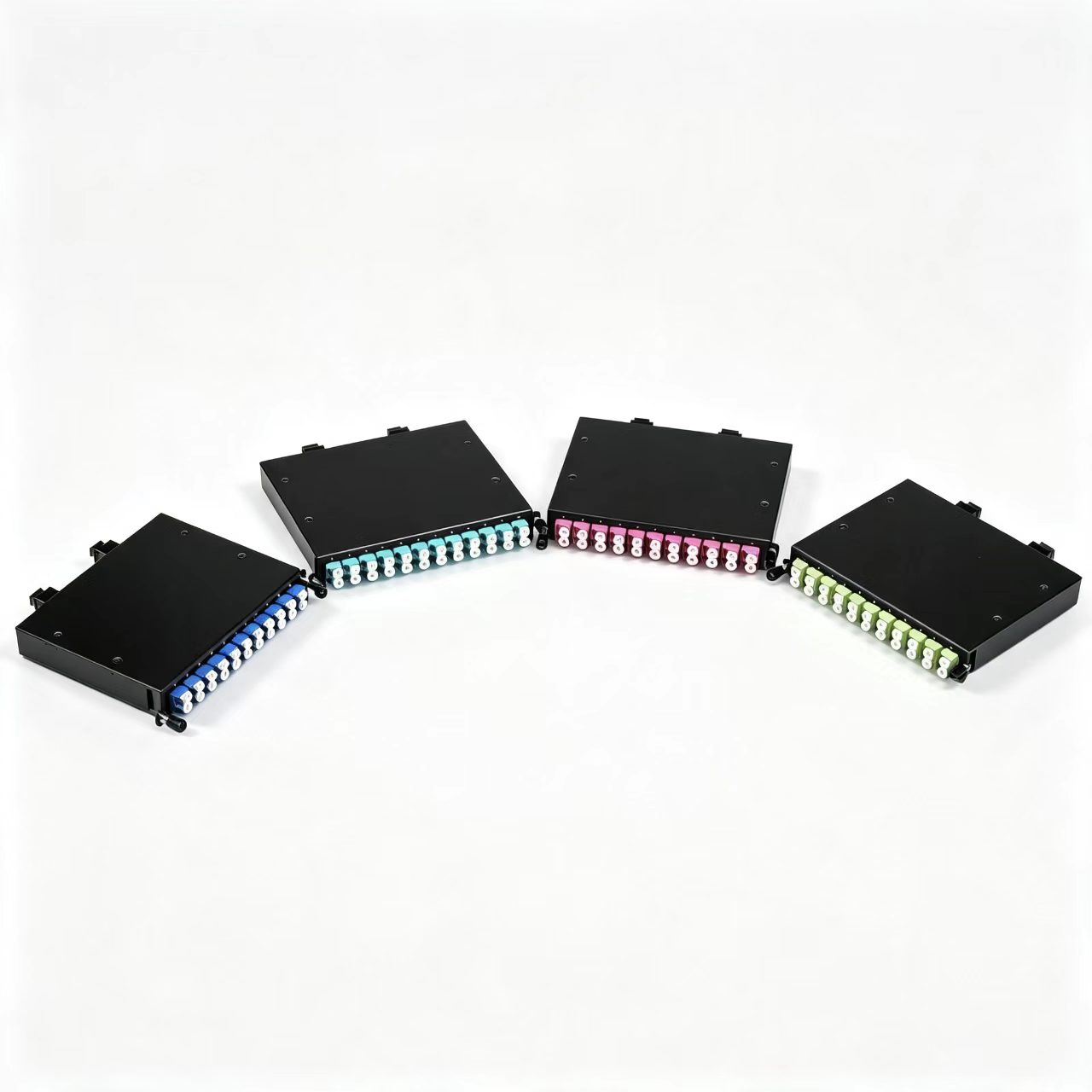

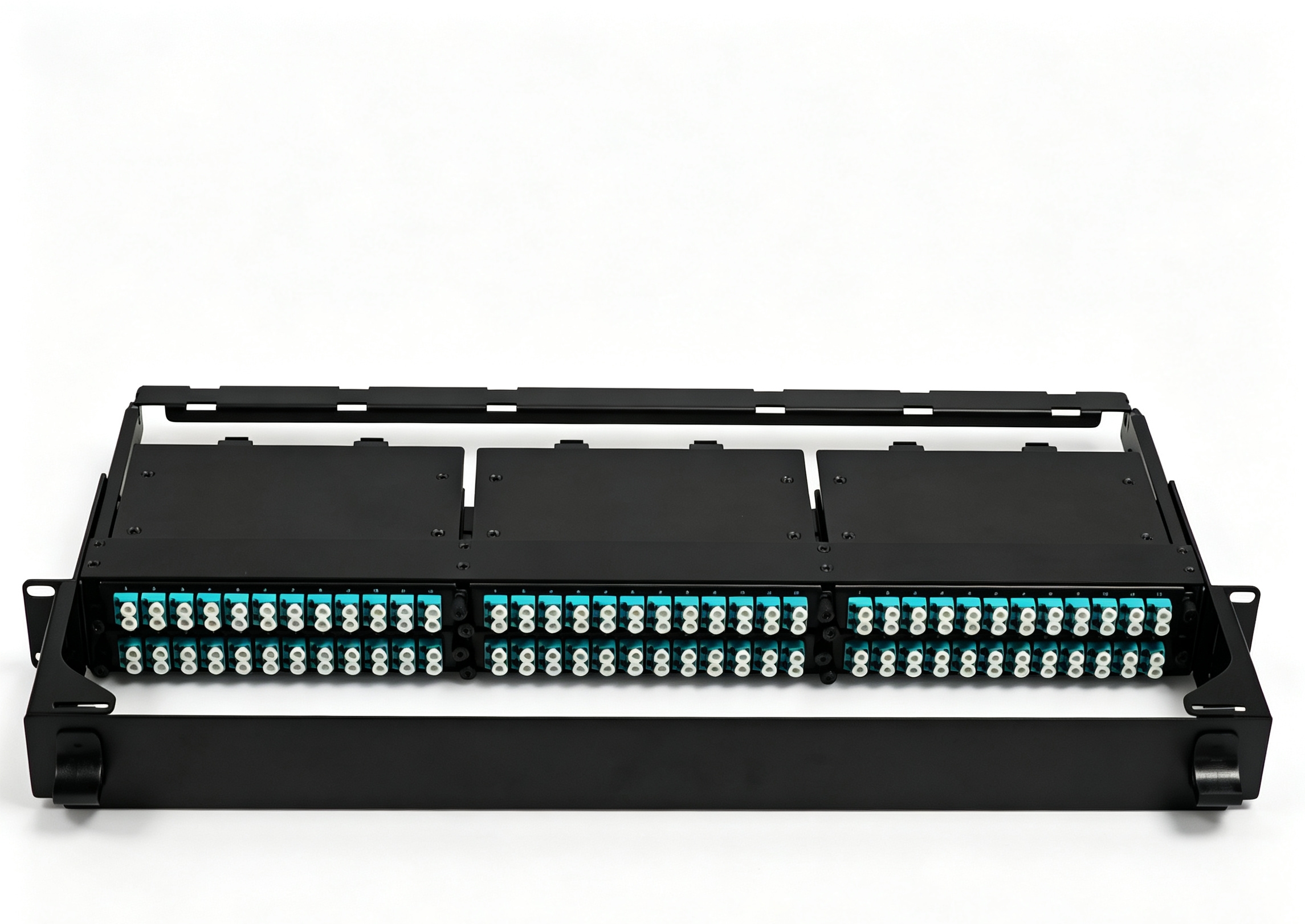

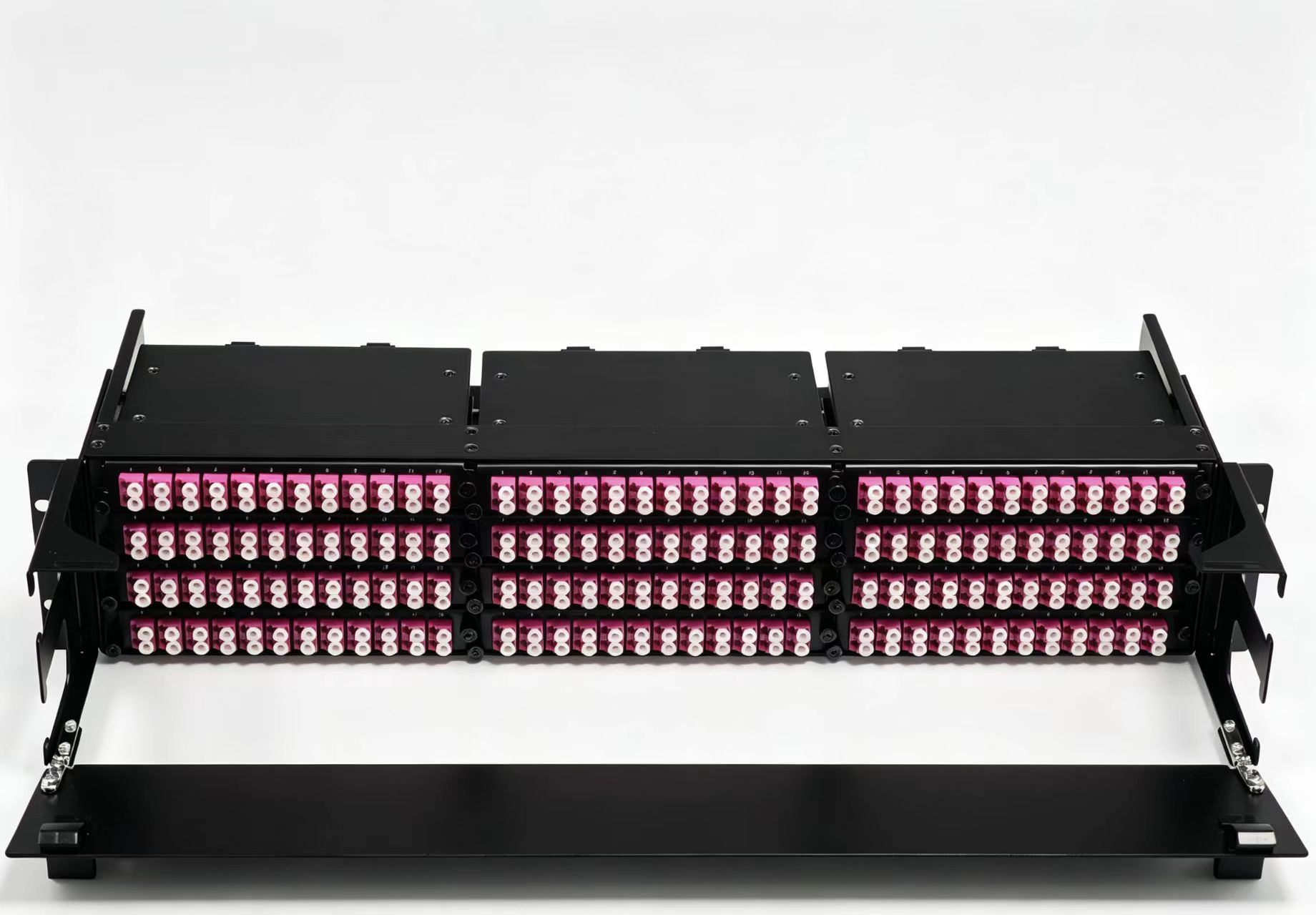

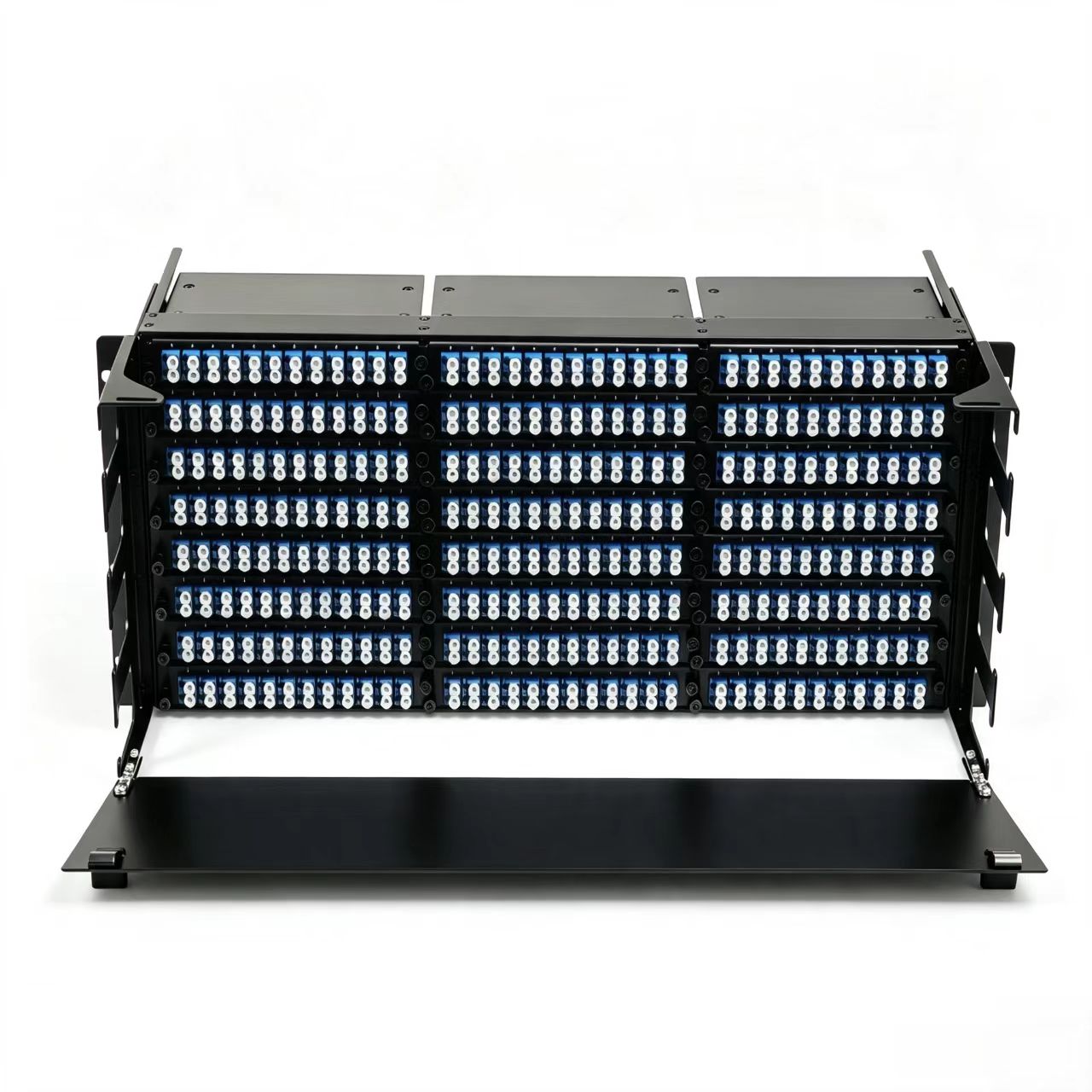

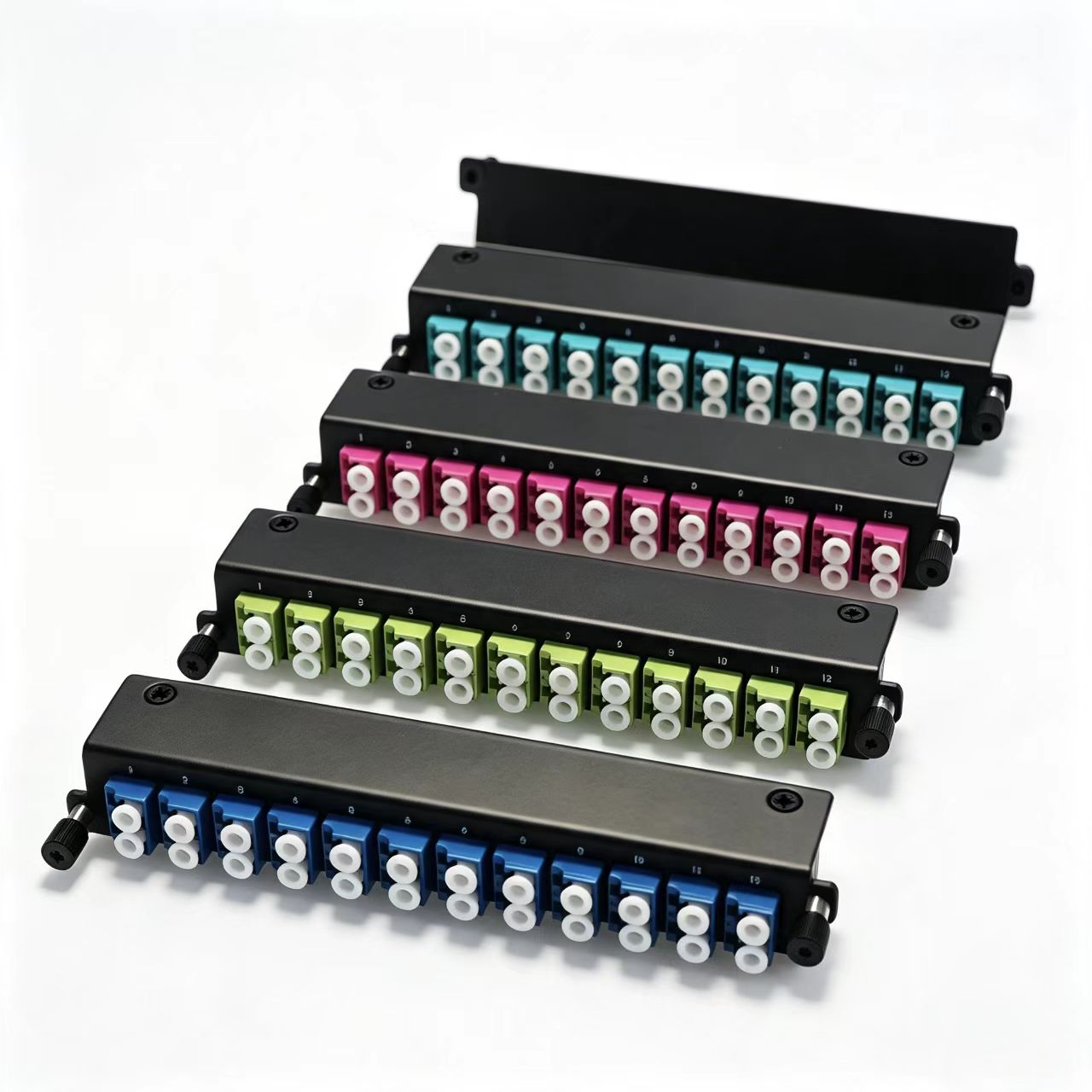

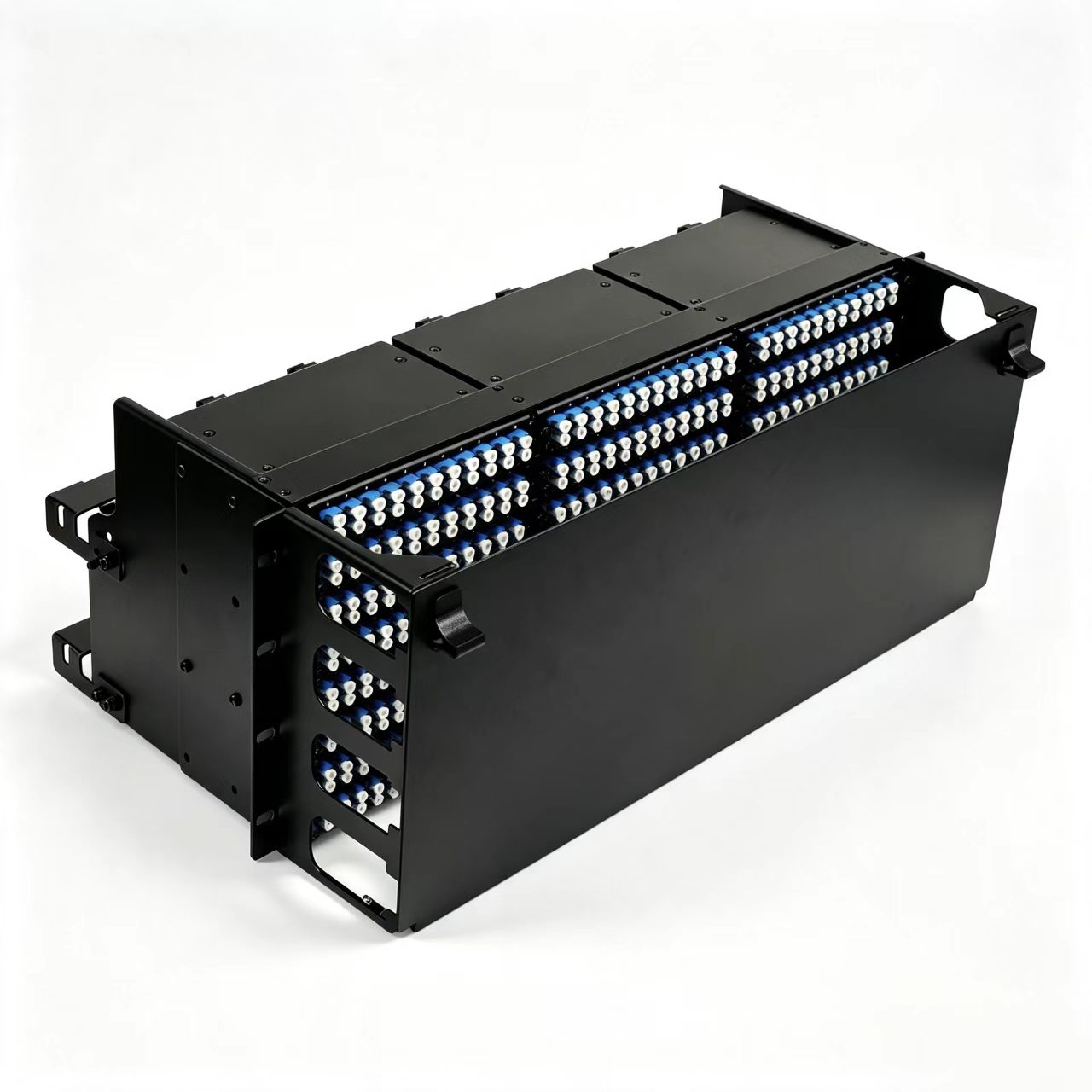

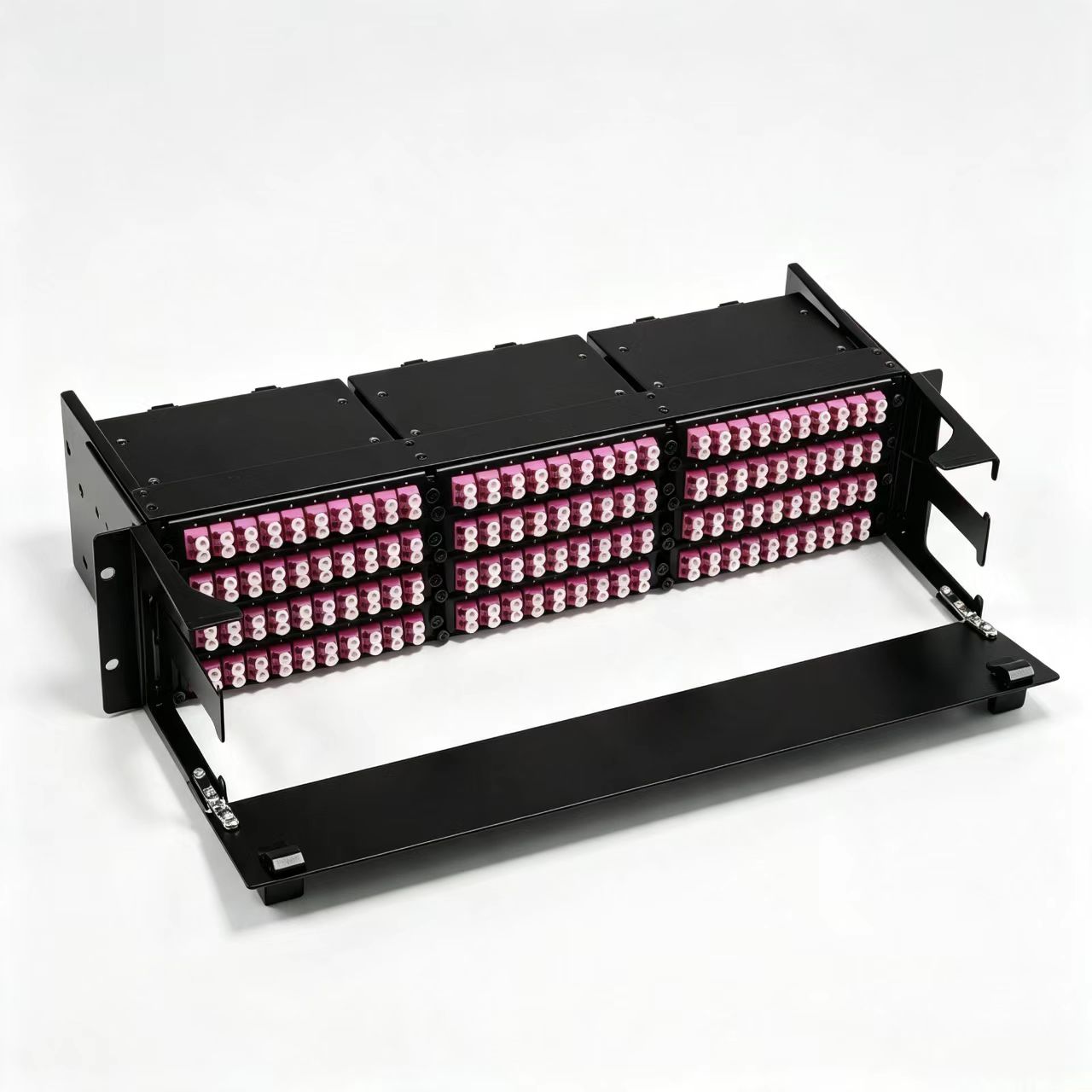

MINI Size&Multi-functional MPO Patch Panel,24F Metal Cassette,1U 144F LC&2U 288F LC&4U 576F LC
