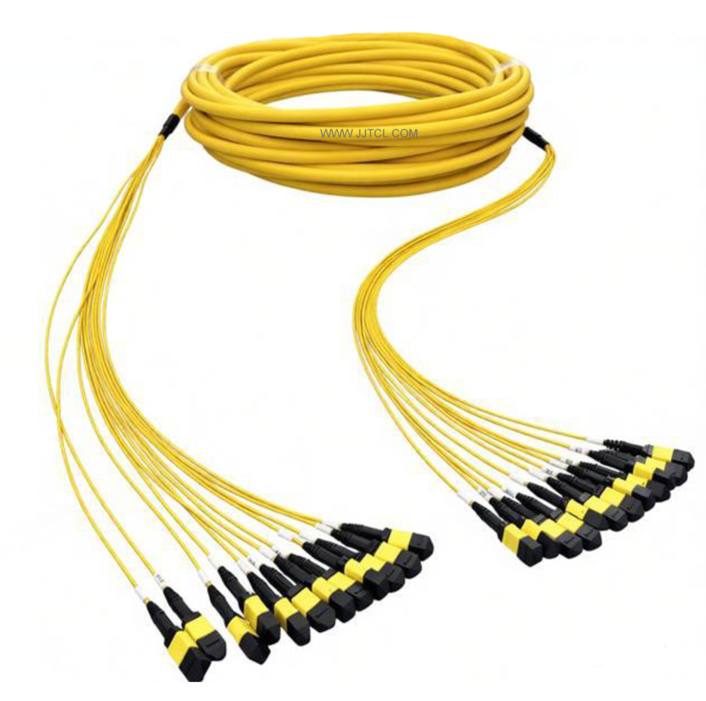

MPO-MPO 144F Trunk Cable
MTP/MPO trunk cabling connects MTP/MPO modules together as a permanent link. They facilitate rapid deployment of high-density backbone cabling in data centers and other high-density fiber environments, reducing network installation or reconfiguration time and cost. Its efficient plug-and-play structure greatly reduces the initial installation and routine maintenance costs. Pre-terminated trunk cables can also be used with plug-and-play modules or MTP/MPO connector panels to achieve multi-level connection. Pre-terminated trunk cable can also be extended by MTP/MPO panel with the plug-and-play module. They are used to interconnect module cassettes, panels or ruggedized MTP/MPO fanouts, spanning MDA, HDA and EDA zones.
Application:
● Data Center Interconnect
● High-Density Fiber Management
● Telecommunication Networks and CATV networks
● LAN/WAN Premises
Complied Standards
Comply with IEC 61754-7， TIA/EIA 604-5, Telcodia GR-1435-CORE Issue 2 standards.
Fire resistance comply with low smoking (IEC 61034), halogen free (IEC 60754-1), flame retardant (IEC 60332-1-2), and corrosion proof (IEC 60754-2)
General Specification
|
Connector A |
MTP/MPO |
Connector B |
MTP/MPO |
|
Fiber Mode |
G657A2 |
Wavelength |
1310/1550nm |
|
MPO Connector Low loss IL |
≤0.35dB Max (0.20dB Typical) |
MPO Connector Standard loss IL |
≤0.5dB Max(0.40dB Typical) |
|
MPO Connector RL |
≥50dB |
MPO Connector Brand |
Chinese Brand |
|
MPO Housing Color |
Green / yellow |
Jacket Color |
Yellow |
|
Bending Radius (mm) |
Static 10D / Dynamic 20D |
500Times Durability |
≤0.20dB |
|
Cable Jacket |
OFNR/OFNP/LSZH |
Fiber Count |
144 Fibers |
|
Jacket OD |
17mm |
Polarity |
A,B,C or Customized |
|
Storage Temperature |
-40 to +85°C |
Operating Temperature |
-20 to +70°C |
