OVERVIEW

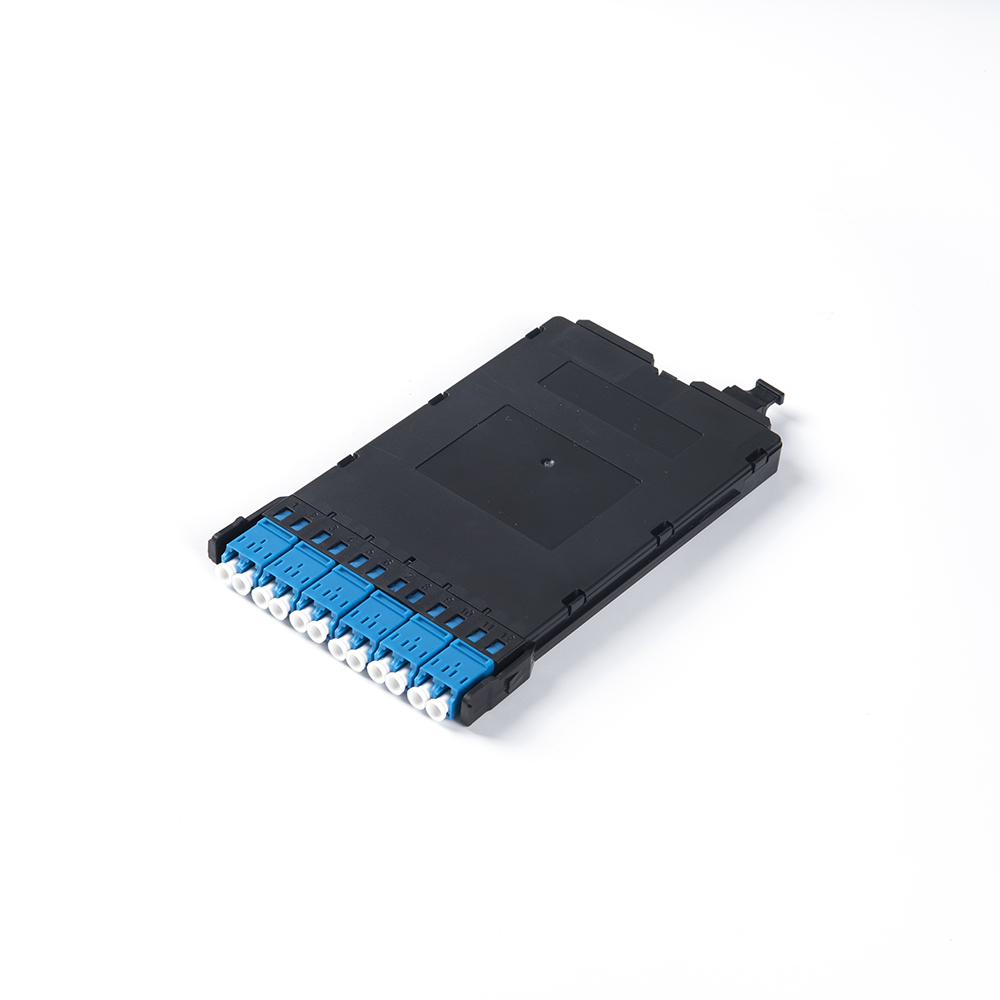

MPO/MTP Cassette possess optical fiber branching patch cords inside to split the 12-core/16-core MPO / MTP connector into simplex or duplex LC connector. Simplex or duplex LC connectors are placed in front of the cassettes, and one or two MPO/ MTP connectors are placed at the back of the cassettes. The branching patch cord connect the front LC and the rear MPO/MTP connectors. This type of modules can be easily installed in 1U 2U and 4U Patch panels.
APPLICATIONS
1.Data center infrastructure
2.High Density Fiber Management
3.Building telecommunication cabling system
4.LAN, WAN, CATV and metro Test equipment
FEATURES AND BENEFITS
1, Made of Aluminum ,light weight
2,Pre-terminated and 100% tested at factory
3, Modular design, easy for expansion
4, Reasonable of optical fiber cable route
5, Minimize structure and ensure fiber bending radius
6, Rapid configuration, reduce installation time
7, Rapid upgrading, support parallel transmission
COMPLIED STANDARDS
Comply with TIA/EIA 604-5, IEC 61754 series standards.Datasheet:Type：PP-1U 2D96FSize (mm)：W482*D436*H44 Material：AluminiumWeight：3 kgsCapacity：96f LC
Datasheet
| Type: | PP-1U 2D96F |
| Size (mm): | W482*D436*H44 |
| Material: | Aluminium |
| Weight: | 3 kgs |
| Capacity: | 96f LC |

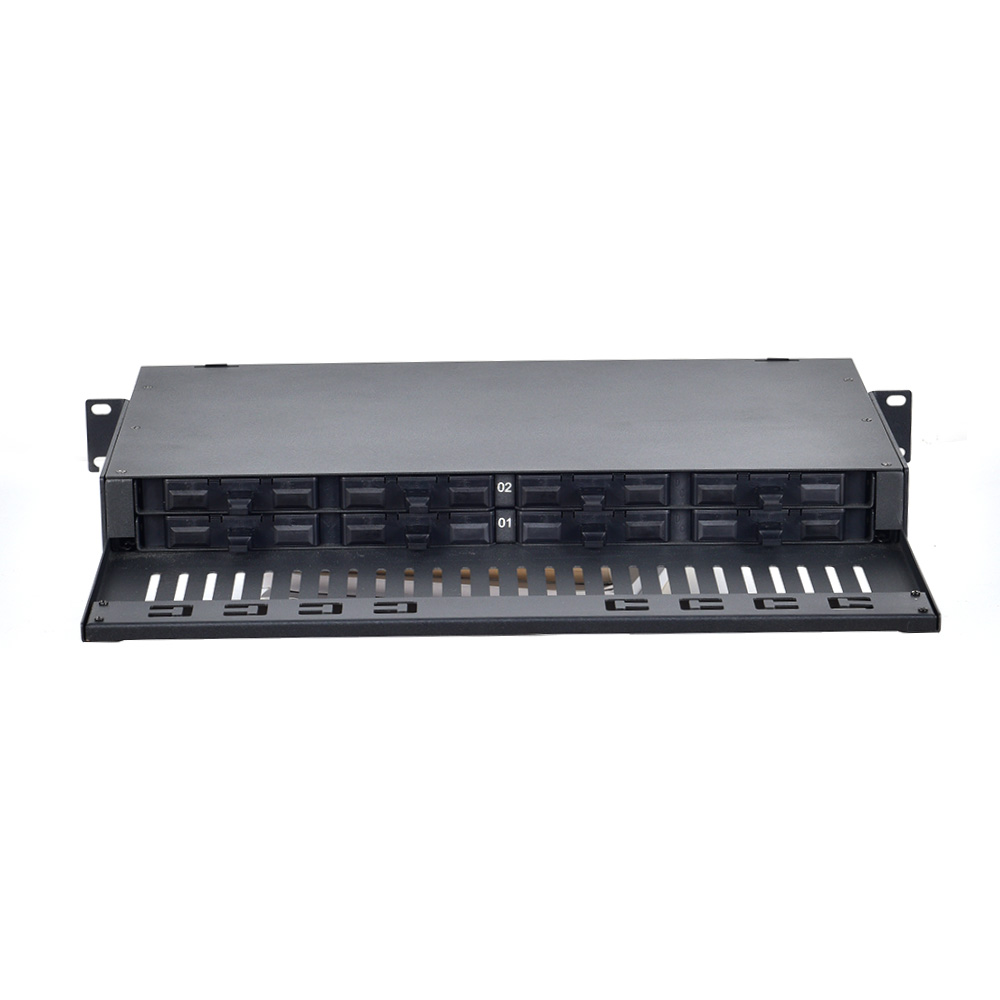

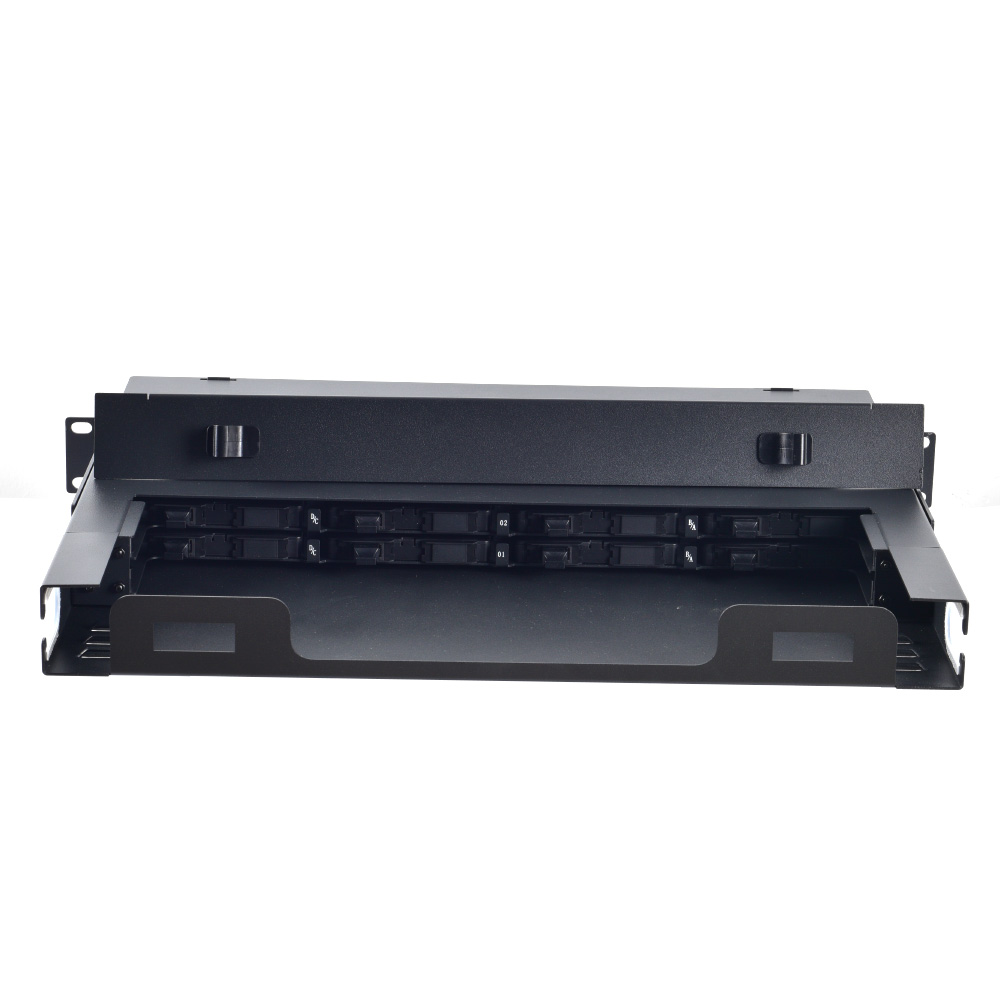

1U 96F Push-Pull High Density Patch Panels 2 layers
