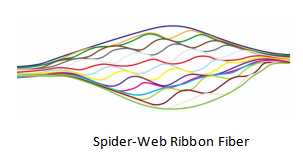

12F 3.0mm Spider-Web Fiber Cable
Application
* Used in indoor cabling.
* Used as access building cable.
* Used as interconnect lines of equipments, and used in
optical connections in optical communication rooms.
* Used in pigtails and patch cords.
Features
* Good mechanical and environmental characteristics.
* Flame retardant characteristics meet the requirements of relevant standards.
* The mechanical characteristics of jacket meet the requirements of relevant standards.
* Soft, flexible, easy to lay and splice, and with big capacity data transmission.
* Meet various requirements of market and clients.
Optical Fiber
|
Category |
Description |
Specification |
|
|
Before cable |
After cable |
||
|
Geometrical Characteristics
Geometrical Characteristics |
Cladding diameter |
125.0 ± 0.7 μm |
|
|
Cladding non-circularity |
≤0.7 % |
||
|
Core concentricity error |
≤0.5 μm |
||
|
Coating diameter(uncolored) |
245±10 μm |
||
|
Coating diameter(colored) |
250±15 μm |
||
|
Coating/cladding concentricity error |
≤12.0 μm |
||
|
Optical Characteristics
Optical Characteristics |
Mode field diameter at 1310 nm |
8.4 ~ 9.2 μm |
|
|
Mode field diameter at 1550 nm |
9.3 ~ 10.3 μm |
||
|
Attenuation at 1310 nm |
≤0.35 dB/km |
≤0.5 dB/km |
|
|
Attenuation at 1550 nm |
≤0.21 dB/km |
≤0.4 dB/km |
|
|
Point discontinuity at 1310nm and 1550nm |
≤ 0.05dB |
||
|
Zero dispersion wavelength |
1300 ~ 1324 nm |
||
|
Zero dispersion slope |
≤0.092 ps/(nm2·km) |
||
|
Cable cut-off wavelength (λcc) |
≤ 1260 nm |
||
|
Group Index of Refraction at 1310nm |
1.466 |
||
|
Group Index of Refraction at 1550nm |
1.467 |
||
|
Macro-bend loss (10 turns, 15mm,radius) |
£ 0.25 dB at 1550nm £ 1.0 dB at 1625nm |
||
|
Macro-bend loss (1 turn, 10mm radius) |
£ 0.75dB at 1550nm £ 1.5 dB at 1625nm |
||
|
Mechanical Specification |
Proof stress level |
≥100kpsi (0.69 GPa) |
|
|
Coating strip force (peak value) |
1.3~8.9N |
||
|
Dynamic Fatigue Parameter（nd） |
≥20 |
||
|
Fiber curl (Radius) |
≥4 m |
||
|
Other Characteristics Characteristics |
Conform to IEC 60793-2-50 |
||
Fibre Identification
The color code of fibers will be identification in accordance with the following color sequence, other sequence also is available.
|
Fiber Color |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
Blue |
Orange |
Green |
Brown |
Grey |
White |
Red |
Black |
Yellow |
Violet |
Pink |
Aqua |
Cable Parameters
|
Fiber count |
12F |
Fiber Type |
G657A1 ribbon |
|
Cable Weight |
8.0kgs |
Cable OD |
3.0±0.15mm |
|
Min.Bend Radius |
Dynamic 20D/ Static 10D |
Tensile (Long Term.) |
30N |
|
Jacket Material |
OFNR OFNP LSZH |
Tensile (Short Term.) |
100N |
|
Jacket Color |
12 colors |
Crush (Long term) |
100N/100mm |
|
Operating temperature |
-20～+70 ℃ |
Crush (Short term) |
500N/100mm |
12F SWR Mini Cable 12F 3.0mm Spider-Web Fiber Cable
