Multi Breakout Cable with Galvanized Steel Wire Braid
Fiber Characteristic ：
|
Fiber style |
Unit |
SM G652D |
MM 62.5/125 |
OM2/OM3/OM4 |
OM5 |
|
|
Condition |
nm |
1310/1550 |
850/1300 |
850/1300 |
850/1300 |
|
|
Attenuation |
dB/km |
0.36/0.23 |
2.4/0.6 |
2.4/0.6 |
2.4/0.6 |
|
|
Dispersion |
1550nm |
ps(nm·km) |
≤18 |
----- |
|
----- |
|
1625nm |
ps(nm·km) |
≤22 |
----- |
|
----- |
|
|
Overfilled Modal Bandwidth |
850nm |
MHZ·.km |
----- |
≥200 |
≥500/≥1500/≥3500 |
≥3500 |
|
1300nm |
MHZ. ·km |
----- |
≥500 |
≥500/≥500/≥500 |
≥500 |
|
|
Effective Modal Bandwidth |
850nm |
MHZ·.km |
|
|
≥950/≥2000/≥4700 |
≥4700 |
|
Support Distance on 40GBASE-SR4 / 100GBASE-SR101 |
850nm |
M |
|
|
-/140/170 |
200 |
|
Support Distance on 10GBASE-SR |
850nm |
M |
|
|
150/300/550 |
150 |
|
Support Distance on 1000BASE-SR |
850nm |
M |
|
|
750/1000/1100 |
440 |
Cable Specifications:
|
Item |
Description |
|
Fiber count |
4-16 |
|
Fiber Type |
OS2 G657A1 G657A2 OM1 OM2 OM3 OM4 |
|
Tight Buffer Material |
PVC LSZH Hytrel Nylon |
|
Tight Buffer Diameter |
0.9mm |
|
Sub unit Sheath |
PVC LSZH |
|
Sub unit Diameter |
2.0mm |
|
Strength Member |
Aramid Yarn |
|
Inner Sheath Material |
PVC LSZH PE |
|
Inner Sheath Diameter |
See table below |
|
Inner Sheath Thickness |
See table below |
|
Jacket Thickness |
See table below |
|
Armouring |
Galvanized Steel Wire Braid |
|
Braid Coverage |
>85% |
|
Outer Sheath Material |
PVC LSZH PE |
|
Outer Sheath Thickness |
See table below |
|
Outer Sheath Diameter |
See table below |
|
|
|
|
Nominal Weight |
See table below |
|
Tensile strength |
1500N |
|
Crush Load |
5000N/100mm |
|
Min Bending radius |
Static:15D, Dynamic:20D |
|
Operating temperature |
PVC OFNP -20℃～70℃,LSZH TPU PE -20℃～80℃ |
|
Storage temperature |
-40℃～+80℃ |
Table
|
Fiber No. |
Inner sheath (mm) |
Outer sheath (mm) |
Nominal Weight(kg/km) |
||
|
Thickness |
Diameter |
Thickness |
Diameter |
||
|
4 |
1 |
7 |
1.5 |
11 |
180 |
|
6 |
1 |
8 |
1.5 |
12 |
200 |
|
8 |
1 |
8.5 |
1.5 |
13.5 |
230 |
|
12 |
1 |
12 |
1.5 |
16 |
300 |
|
16 |
1 |
11.5 |
1.5 |
15.5 |
290 |

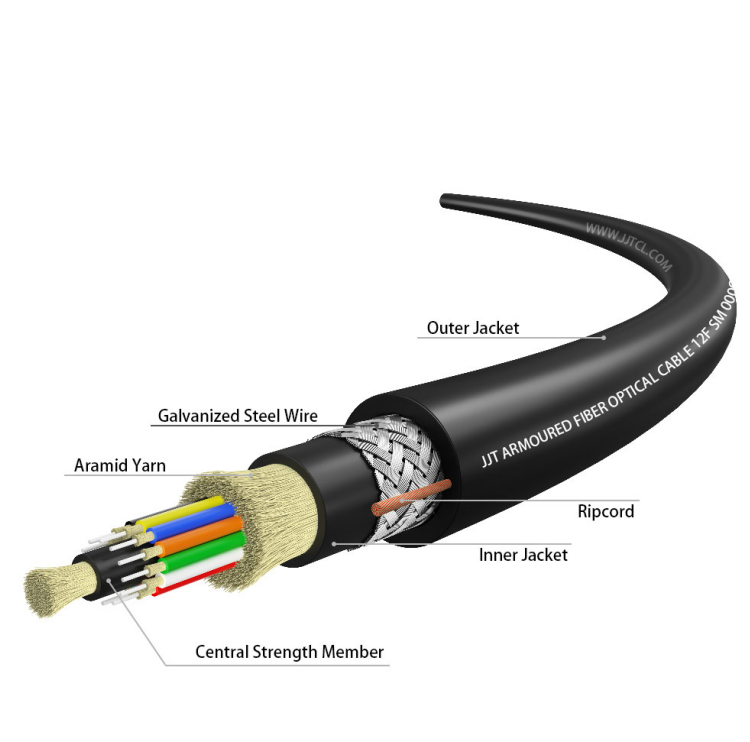

12F Multi Breakout Cable with Galvanized Steel Wire Braid
