4fiber 6.0mm Tactical Fiber Optical Cable

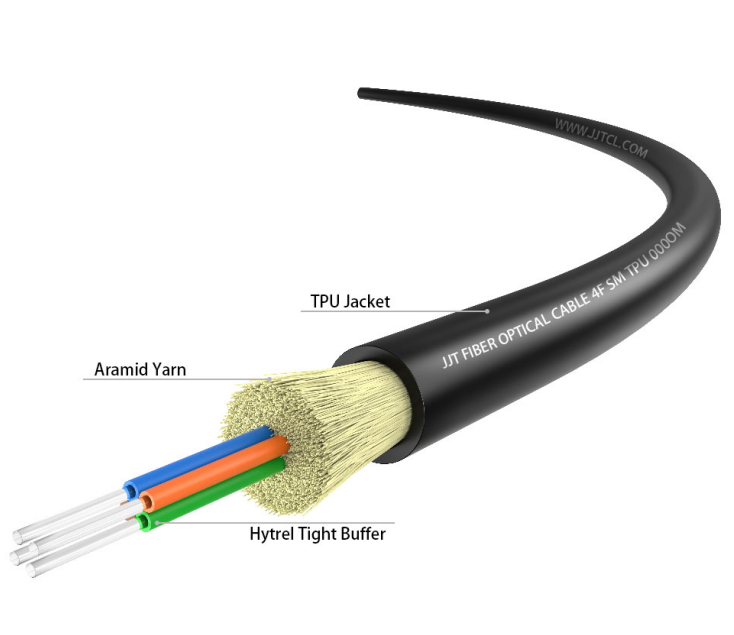

Description

1 – Fiber count

4

2 – Fiber characteristic

Color: original
OD: 242±7 um

3 – Characteristic of tight buffered

OD: 0.87±0.05㎜
Thickness of buffered jacket: 0.31±0.02 ㎜
Material: Hytrel

4 – Kevlar for round strength

5 – Out jacket

OD: 6.0 ±0.20㎜
Material: TPU

Other Demanding

1 – Appearance

Slickness，without color difference, bumps and color transparent.

2 – Package

Wooden drum

3 – Length per drum

More than 1000M per drum, nearly the same length per drum, other length upon customer demanding

Test report

Attached with the OTDR testing report，label with the style of fiber and the OD of out jacket

Fiber Characteristic：

Fiber style		Unit	SM G652D	MM 62.5/125	OM2/OM3/OM4	OM5
Condition		nm	1310/1550	850/1300	850/1300	850/1300
Attenuation		dB/km	0.36/0.23	2.4/0.6	2.4/0.6	2.4/0.6
Dispersion	1550nm	ps(nm·km)	≤18	-----		-----
Dispersion	1625nm	ps(nm·km)	≤22	-----		-----
Overﬁlled Modal Bandwidth	850nm	MHZ·.km	-----	≥200	≥500/≥1500/≥3500	≥3500
Overﬁlled Modal Bandwidth	1300nm	MHZ. ·km	-----	≥500	≥500/≥500/≥500	≥500
Effective Modal Bandwidth	850nm	MHZ·.km			≥950/≥2000/≥4700	≥4700
40GBASE-SR4 / 100GBASE-SR10¹	850nm	M			-/140/170	200
10GBASE-SR	850nm	M			150/300/550	150
1000BASE-SR	850nm	M			750/1000/1100	440

Application:

Temperature range		℃	-40℃-- +80℃
Nominal weight		‘g/m	30
Min. Bending Radius (mm)	Install	mm	20H
Min. Bending Radius (mm)	Static	mm	10H
Max. Tension (N)	Short-term	N	2000
Max. Tension (N)	Long-term	N	1000
Max. Crushing Resistance (N/100mm²)		N/100mm²	1000
