Product description
JJT-MT SERIES FTTH FIBER OPTICAL TERMINAL BOX





Description:
Used in the end termination of residential buildings and villas,to fix and splice with pigtails.
Features:
-small size,light weight,pleasing in apperance
-wall mounted with mechanical protection function
-max fiber capacity 4-16 fibers,4-16 adapter output
-available for FC,SC,ST,LC adatpers
-hinge and convenient press-pull button lock design
FTTH PRODUCTS Specifications:
|
Item
|

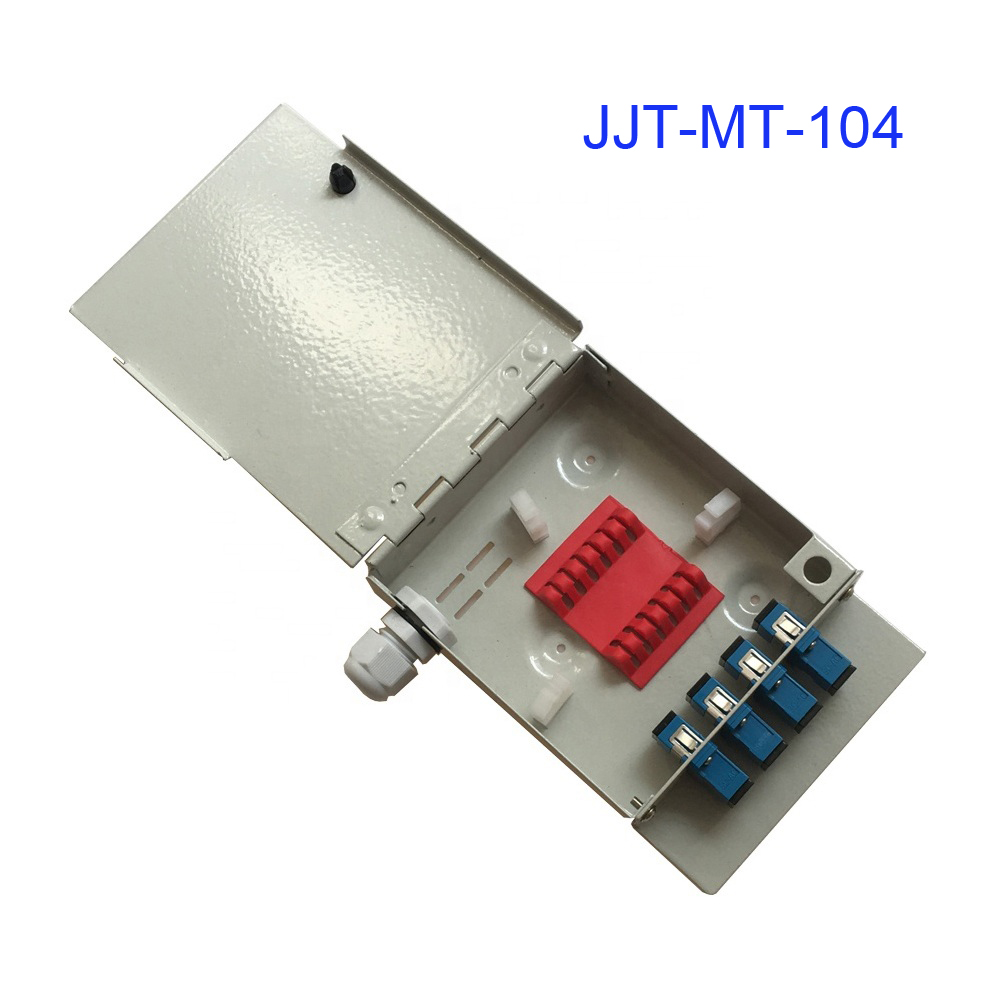

JJT-MT-104
|

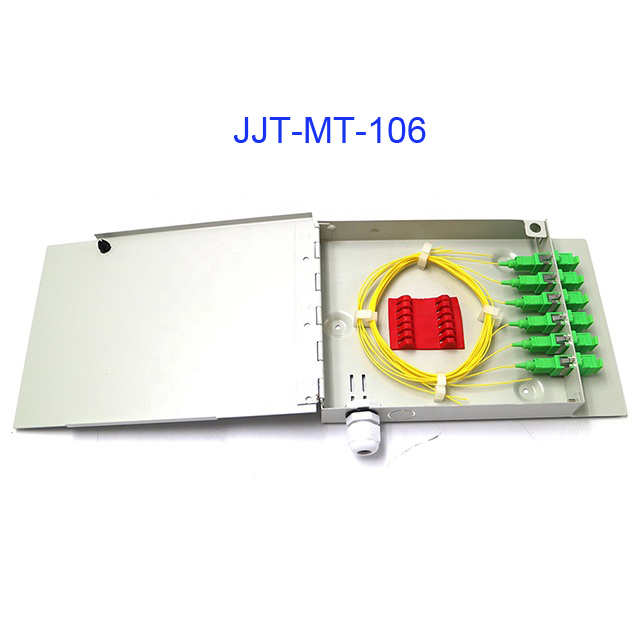

JJT-MT-106
|

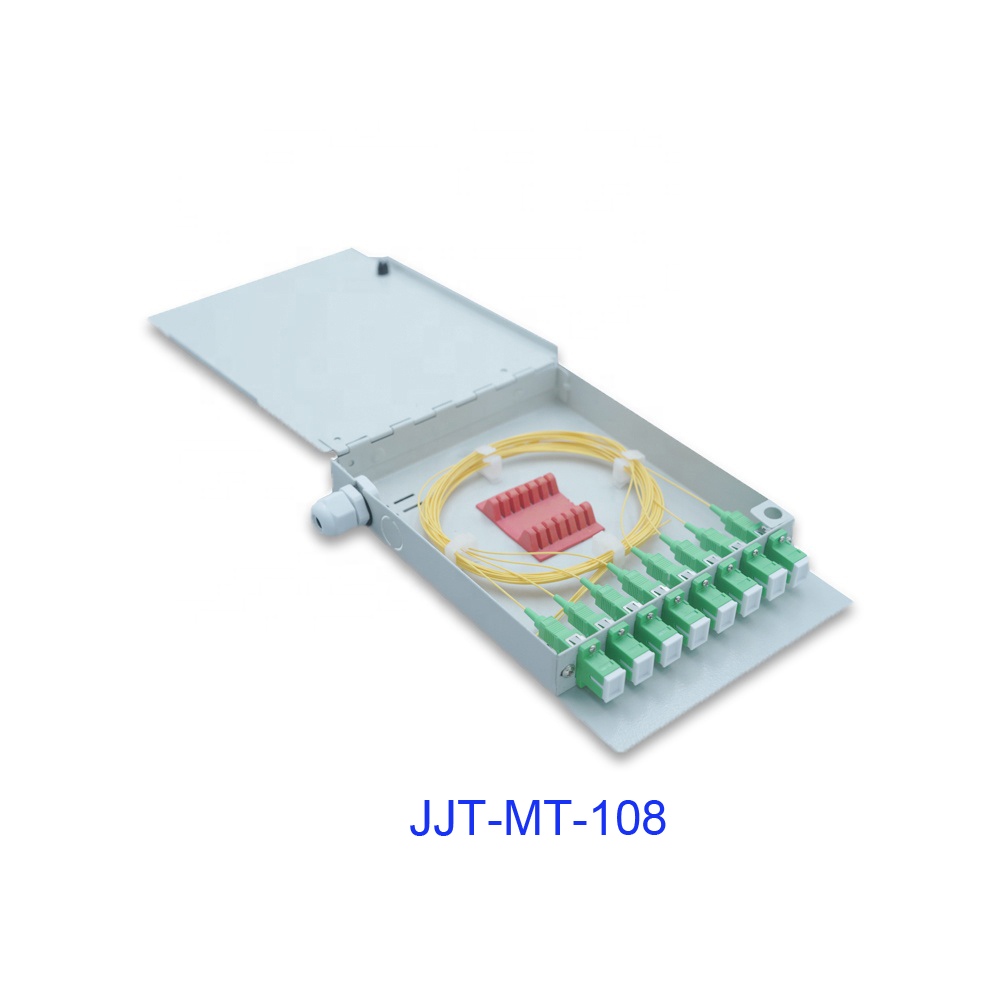

JJT-MT-108
|

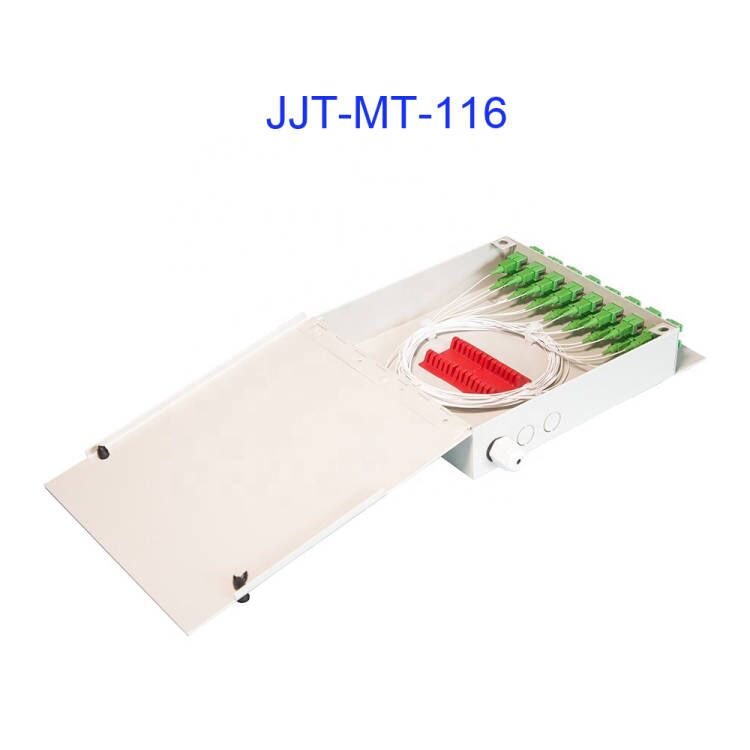

JJT-MT-116
|
|
Size(H*W*D)mm
|
140*130*36
|
200*165*40
|
200*165*40
|
245*200*60
|
|
Cable diameter(mm)
|
Ф5~Ф10
|
Ф5~Ф10
|
Ф5~Ф10
|
Ф5~Ф10
|
|
Cable ports
|
1 Port
|
2 Ports
|
2 Ports
|
3 Ports
|
|
Max capacity of splice
|
4 cores
|
6 cores
|
8 cores
|
16 cores
|
