| Model No. | SC Drop Cable patch cord |
|---|---|
| Brand Name | OEM |
| place of origin | China |
| Number of cores | 1 |
| Cable Jacket | LSZH |
| Fiber Count | 1F |
| Fiber Type | G652D/G657A |
| Strength Member | Steel Wire/FRP |
| Cable size (Height * width) | 2.0(±0.1) mm × 3.0(±0.2)mm |

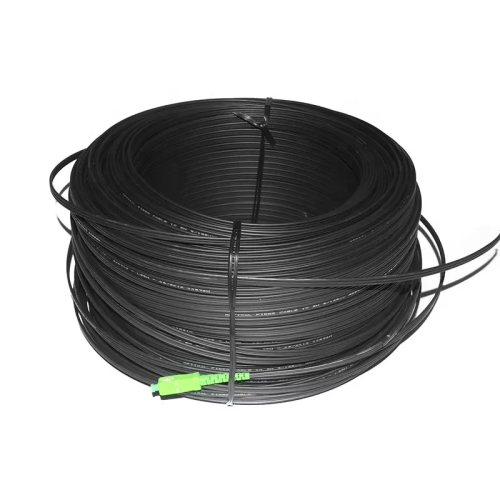

Product description
JJT provides FTTH fiber optic drop patch cord for indoor and outdoor optical network deployments.We offer different kind cable with different end connectors, cable available with flat type,round type and figure 8 type according to application requirements, connectors can be choose by SC, FC, LC, ST and etc with PC, UPC or APC polishing.
With connector pre-terminated at each end of cable to make connection which allow rapidly and conveniently plug the cable to optical transmitter, receiver, PON boxes and other telecommunication equipment during FTTH network constructions. It will decrease the loss of the optical distribution network and the installation time in FTTX projects.
Drop cable patch cords can be produced with different lengths such as 0.5, 1.0, 2.0, 3.0, 5.0 100, 200 m and etc, PVC and LSZH available,glass fiber core can be choose with G652D,G657A1 or G657A2 which are depend on various application demands from customer.
Application
FTTH network for indoor and outdoor
Local Area Network and Building Cabling Network
Interconnect between instruments,
terminal box and communication
Features
Low insertion loss, high return loss
Available FTTH Drop cable diameters: Φ2.0*5.0mm; Φ2.0*3.0mm
Connector Types: LC, FC, SC,ST for option
Fiber Mode: G652D, G.657A1, G657A2, G657B3
Ferrule Interface Type: UPC to UPC, APC to APC, APC to UPC
Compliant to IEC standard
Data sheet
| Type |
SM-UPC |
SM-APC
|
MM-UPC
|
|||
|
Typical |
MAX |
Typical | MAX | Typical | MAX | |
|
Insertion loss |
≤0.1 |
≤0.3dB |
≤0.15 |
≤0.3dB | ≤0.05 | ≤0.3dB |
|
Return loss |
≥50dB
|
≥60dB
|
≥30dB
|
|||
|
Durability |
500 mating cycles
|
|||||
|
Working temperature |
-40 to + 85℃ |
|||||
| Jacket | 3.1*2.0 or 5.0*2.0mm PVC or LSZH | |||||

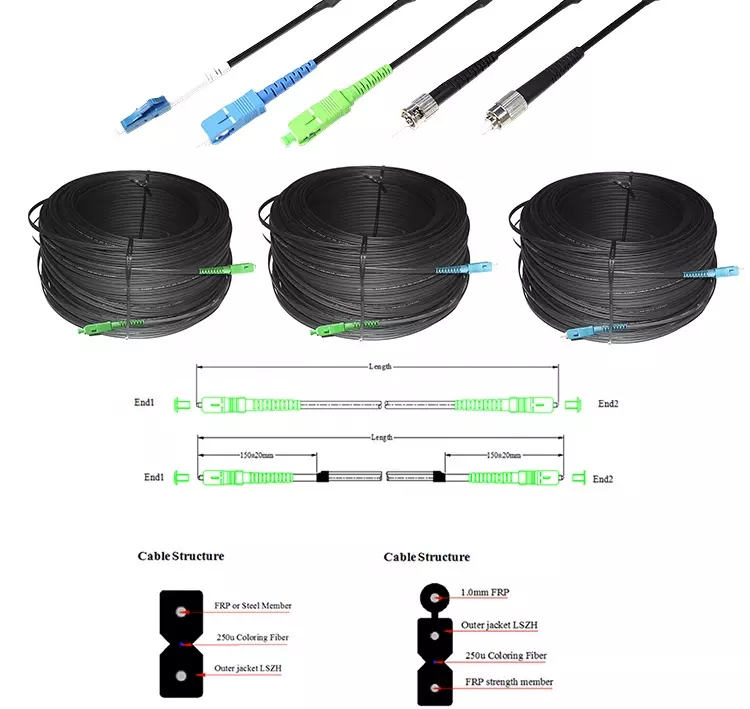

Cable Structure

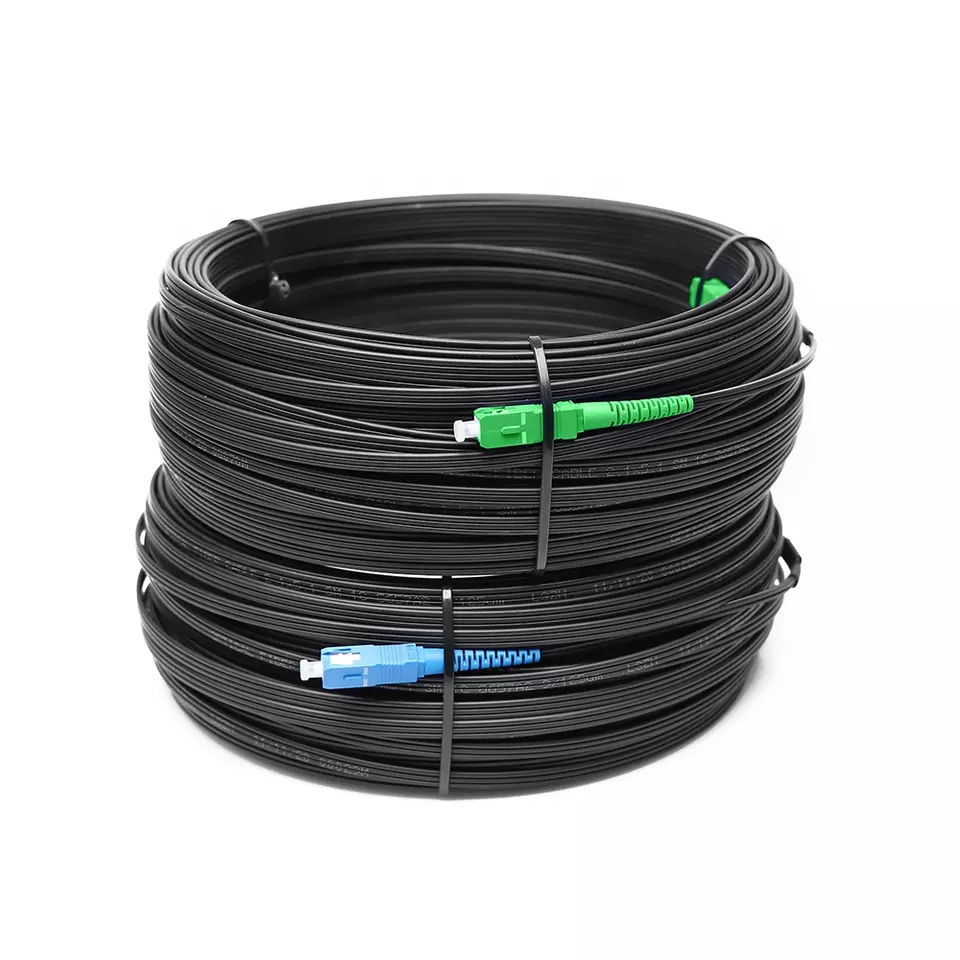

SC Indoor outdoor Drop Cable G657A patch cord
