Basic Info
| Model No. | JJT-PT-104 |
| Brand Name | OEM |
| Cable Size | 3.0x2.0mm drop cable or indoor cable |
| Fiber cladding diameter | 125um(G652&G657) |
| Dimensions(H*W*D) | 100mm*80mm*30mm |
| Material | ABS |
| Weight | 75g |
| Compliance | RoHS UL94-V0 |
| Fiber type | SM&MM |
| Tensile strength | > 50 N |
| Operating temperature | -40 ~ +85 C |
Product description

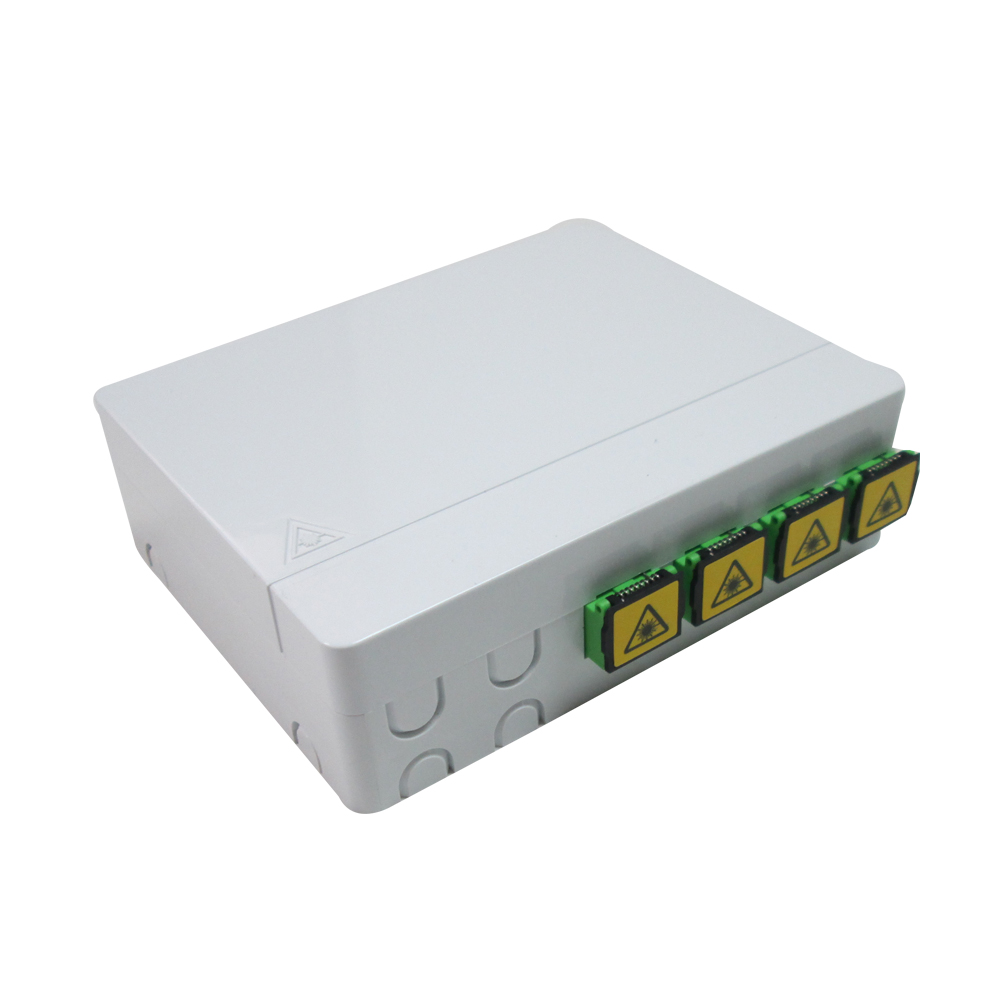

4 Port Wall Mounted Fiber Optic Face plate terminal box for FTTH
Description

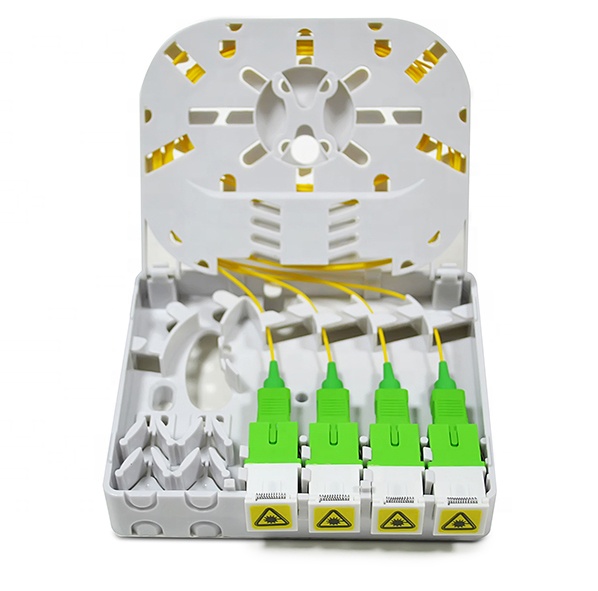

JJ4C-A02 series fiber rossette box is able to hold up to 4 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.
Features
- Dust-proof design with IP-45 Protection level.
- Integrated with splice cassette and cable management rods.
- Manage fibers in a reasonable fiber radius condition.
- Easy to maintain and extend the capacity.
- Suitable for the fusion splice or mechanical splice.
- Embedded type surface, easy for installation and removal.
- 4~8 ports cable entrance for patch cable.
|
Item |
Parameters |
|
Part Number |
JJT-PT-104 |
|
Cable Size |
3.0x2.0mm drop cable or indoor cable |
|
Fiber cladding diameter |
125um(G652&G657) |
|
Dimensions(H*W*D) |
100mm*80mm*30mm |
|
Material |
ABS |
|
Weight |
75g |
|
Compliance |
RoHS UL94-V0 |
|
Fiber type |
SM&MM |
|
Tensile strength |
> 50 N |
|
Operating temperature |
-40 ~ +85 C |
|
Insertion loss |
<0.2dB |
|
Return loss |
>50dB(UPC),>60dB(APC) |
4 Port Wall Mounted Fiber Optic Face plate terminal box for FTTH
