Basic Info
| Model No. | Waterproof Mini SC/APC |
|---|---|
| Brand Name | OEM |
| place of origin | China |
| Number of cores | 1 |
| Cable Jacket | LSZH |
| Fiber Count | 1F |
| Fiber Type | G652D/G657A |
Product description

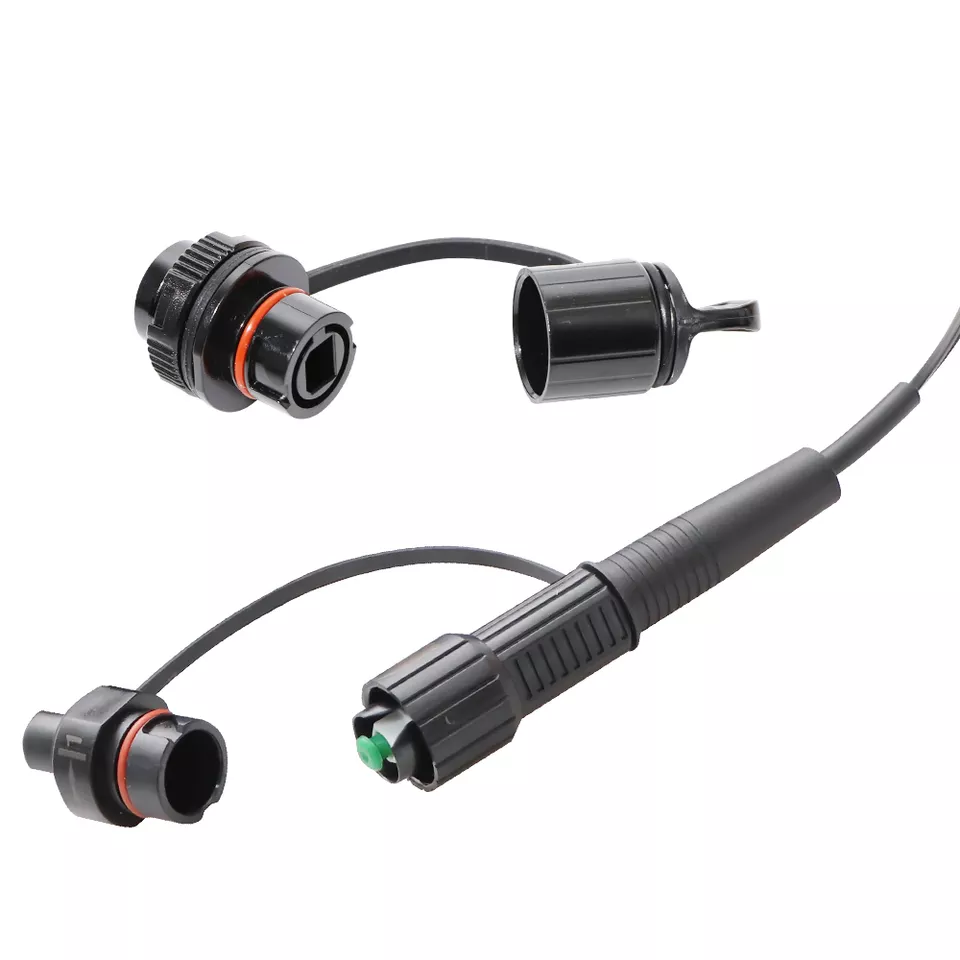

Waterproof Mini SC/APC optic HUAWEI connector Fiber Optic Patch Cord.The mini SC connector is factory-terminated, environmentally sealed and hardened connectors to reduce the cost and the time of drop cable deployment in optical access networks.
The Mini SC cable assembly is specifically designed to significantly reduce required drop cable installation.
Mini SC assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
Mini SC pre-terminated OSP drop cables provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps.
The Ruggedized Connector, an outside plant Mini SC/APC, is compatible with industry standard ISP terminals.
APPLICATION
Fiber optic communications in harsh outdoor environments
Outdoor communication equipment connection
waterproof fiber equipment SC port
Remote wireless base station
FTTx wiring project
FEATURES AND BENEFITS
1. Provides superior weather resistance for FTTA and other outdoor applications.
2. 2. Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
3. Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments
4. Can be installs without special tooling
5. Threaded style coupling
6. Provides bend protection for installation and long term use
7. Faster network roll out and customer installations
8. 100% tested assemblies built in a controlled environment
9. Lower cost deployment by utilizing plug and play solutions
10. Custom built solutions with quick turnaround timesSeal design: It is waterproof, dust-proof, anti-corrosion and so on.
Specification
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||

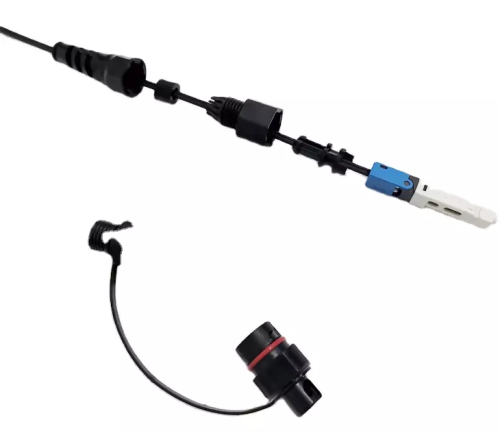

Cable Structure
Waterproof Mini SCAPC Fiber Optic Patch Cord
