Basic Info
| Model No. | H Connector Optic SCAPC |
|---|---|
| Brand Name | OEM |
| place of origin | China |
| Number of cores | 1 |
| Cable Jacket | LSZH |
| Fiber Count | 1F |
| Fiber Type | G652D/G657A |
Product description
H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptacle.
The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications.
Benefits
Allows flexibility to use factory terminated assemblies
Provides superior weather resistance for FTTH and other outdoor applications
Ensures functionality in harsh weather environments
Can be used with industry standard cable designs
Easily installs without special tooling
Threaded style coupling
Provides bend protection for installation and long term use
Features
Single fiber, SC-based connector
Bird proof and rodent resistant
IP68 water and dust protection
Low profile in-line receptacle available
No installation tools required
100 minimum mating cycles
In-line connection available
Operating temperature: -40° to 85°C
Cable Diameter Range: 2.0mm, 3.0mm, 4.8mm .
33 lb. axial cable retention (150N)
Applications
FTTH
Outdoor Areas
Harsh Environment
Specification
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||

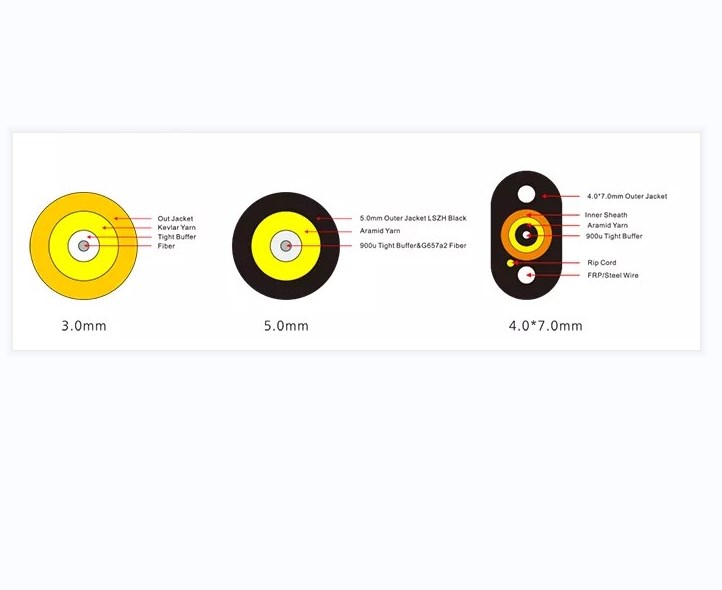

Cable Structure

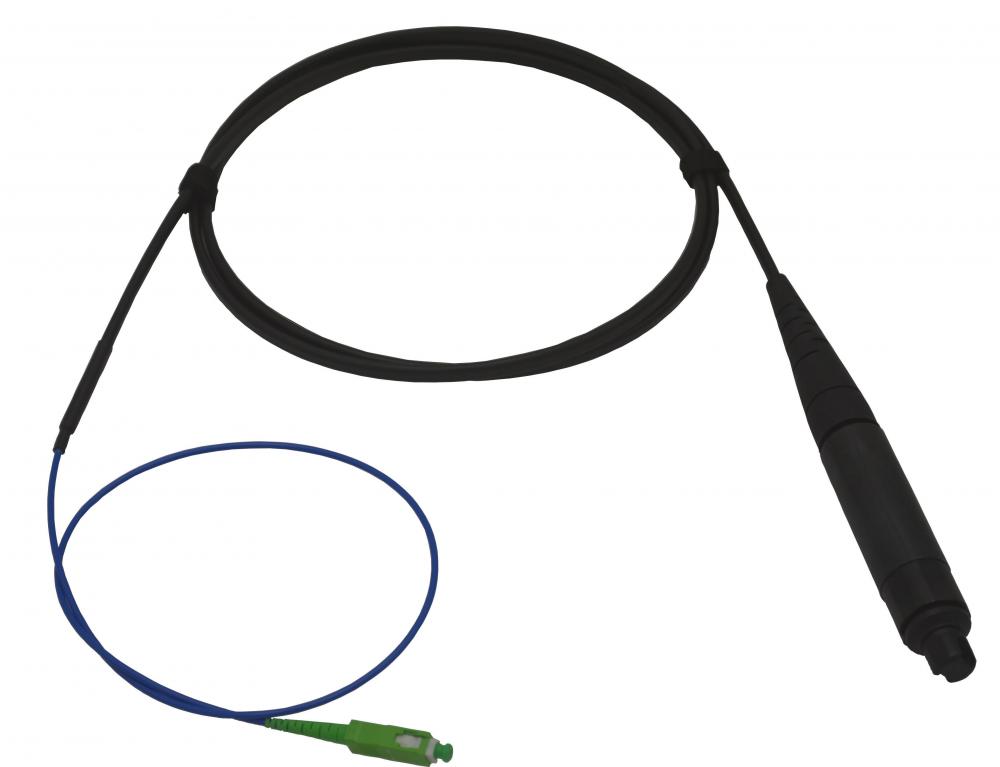

H Connector Optic SCAPC Outdoor Cable Assembly
