Basic Info
| Model No. | IP SC APC |
|---|---|
| Brand Name | OEM |
| place of origin | China |
| Number of cores | 1 |
| Cable Jacket | LSZH/PE |
| Fiber Count | 1F |
| Fiber Type | G652D/G657A |
Product description
IP SC APC Outdoor Fiber Optic Cable Assembly used for Fiber optic communications in harsh outdoor environments,Outdoor communication equipment connection,waterproof fiber equipment SC port,Remote wireless base station,FTTx wiring project.
APPLICATION
Fiber optic communications in harsh outdoor environments
Outdoor communication equipment connection
waterproof fiber equipment SC port
Remote wireless base station
FTTx wiring project
FEATURES AND BENEFITS
1. Provides superior weather resistance for FTTA and other outdoor applications.
2. 2. Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
3. Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments
4. Can be installs without special tooling
5. Threaded style coupling
6. Provides bend protection for installation and long term use
7. Faster network roll out and customer installations
8. 100% tested assemblies built in a controlled environment
9. Lower cost deployment by utilizing plug and play solutions
10. Custom built solutions with quick turnaround timesSeal design: It is waterproof, dust-proof, anti-corrosion and so on.
Specification
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||
Cable Structure

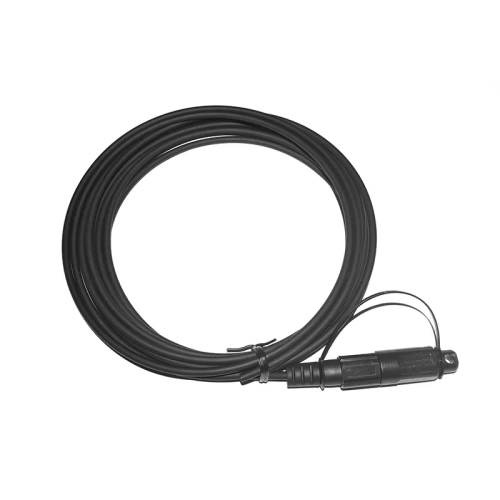

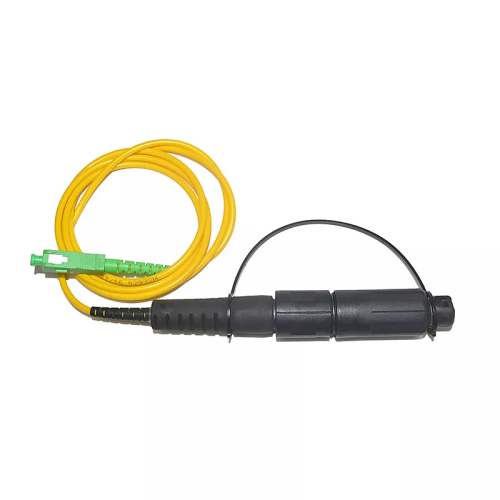

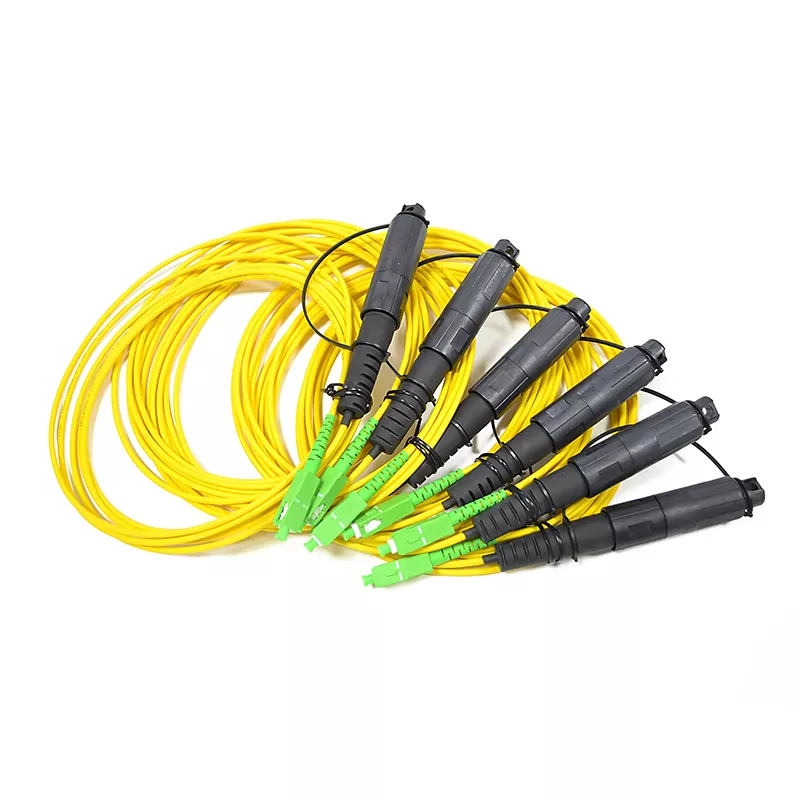

IP SC APC Outdoor Fiber Optic Cable Assembly
