Basic Info
| Brand Name | OEM |
| Dimensions(LxWxH) | 210x105x93mm(4Core) 283x105x95mm(8Core) |
| Ingress Protection | IP68 |
| Working Temperature | -40~85℃ |
| Cable Strength Member | Armoured or Non-armoured |
| Cable Type | Hybrid or non-hybrid |
| Round Cable OD | 5.0mm to 14.0mm |
| Flat Cable Dimension | 4.6x8.9mm |
| Cable Jacket Material | LSZH,PE or TPU |
| Bending Radius | 20D |
| UV Resistance | ISO 4892-3 |
Product description
FTTH Waterproof IP68 6core Optitap H connector MST Box Fiber Optical Distribution Terminal Box
Description
FTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.
MST FTTX Fiber enclosure waterproof box 4/6/8/12/24 port Optitap MPO SC fiber Optic FTTH terminal box IP68 with adapter input
Features

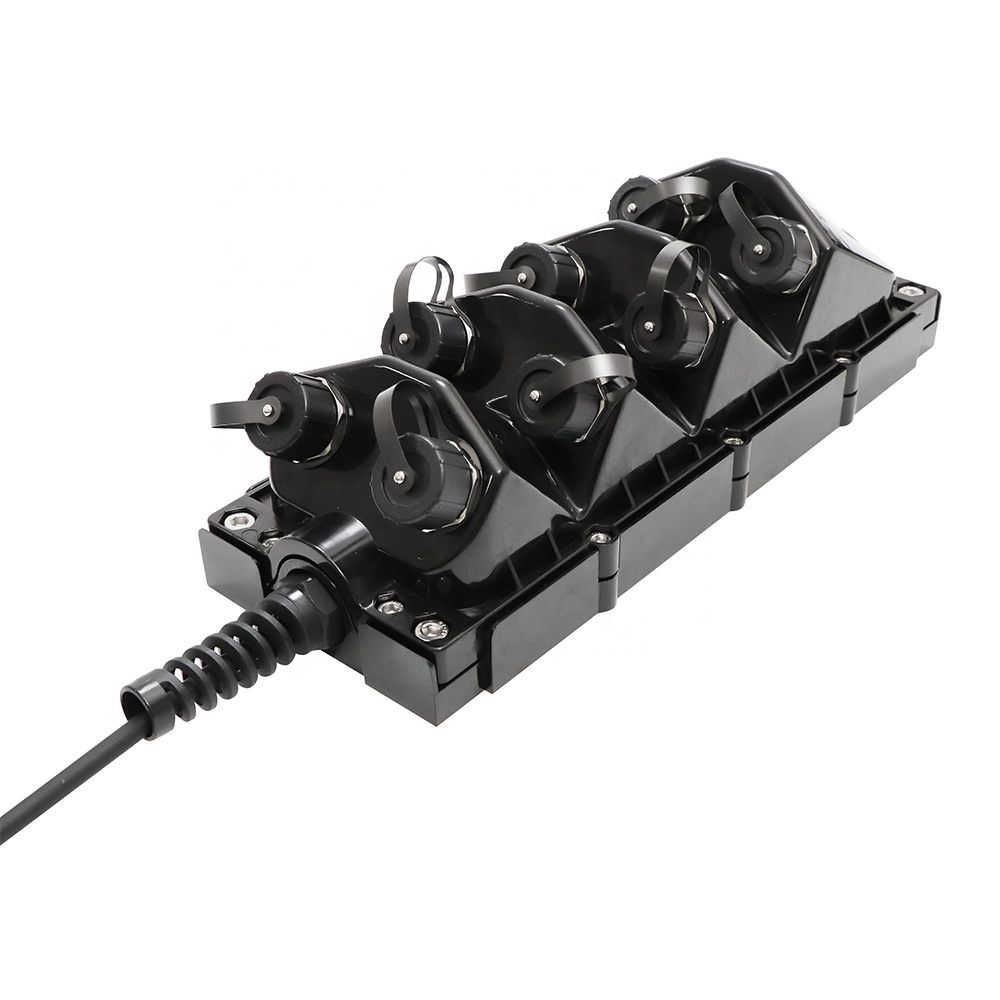

*High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PDLC, PDMPO.
*Factory-sealed or field assembly.
*IP68 water and dust protection
*Strong enough: working under 1200N pulling force long term.
*From 2 to 12 ports for single or multifiber harsh connectors.
*IP68 waterproof rating.
*Wall-mounting, aerial installation or holding pole installation.
*Decreased angle surface and height make sure no connector interfering when operating.
*Meet IEC 61753-1 standard.
*Cost effective: save 40% operating time.

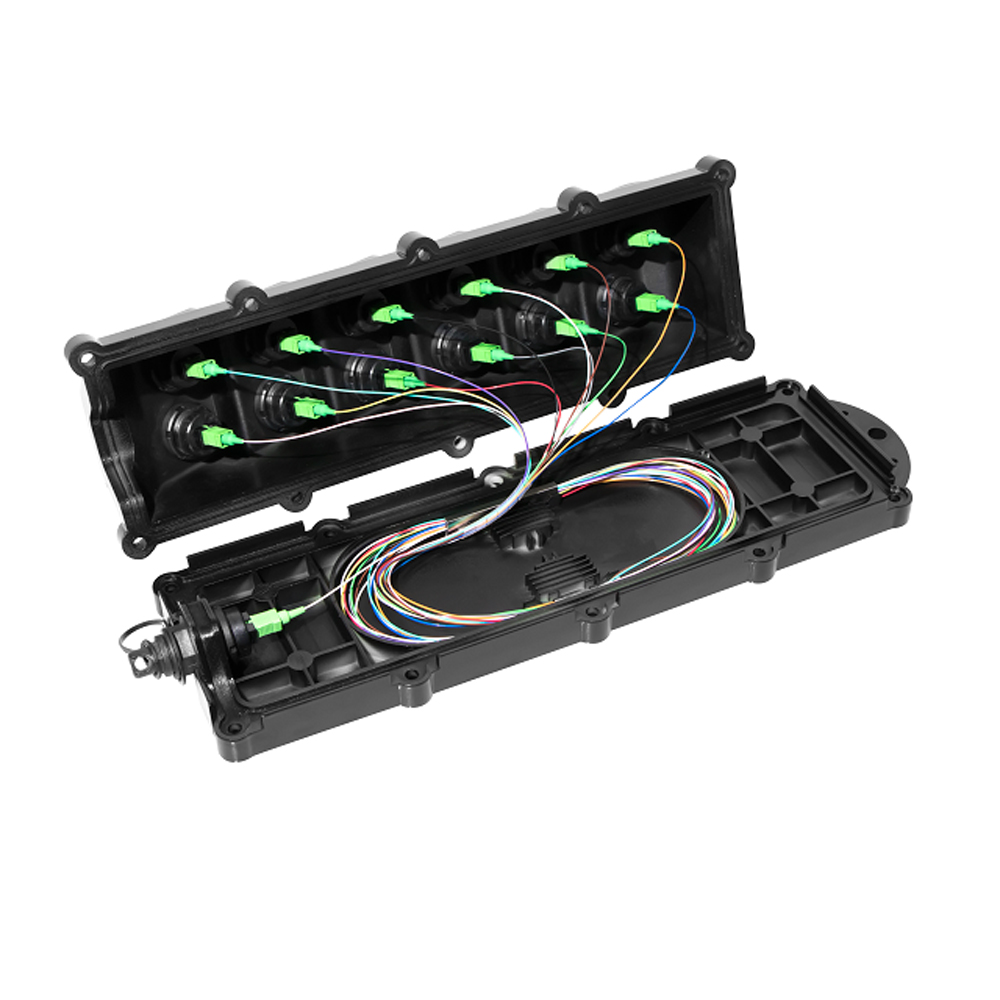

*Available with PLC or splice sleeve for fiber divide .
Applications
1.Outdoor Fiber Optic Transmission
2.Optical System Access network
3.Storage area networking fiber channel
4.Data communication network, 5G tower
5.High density architectures
6.FTTA, FTTP, FTTX, WIMAX
|
Dimensions(LxWxH) |

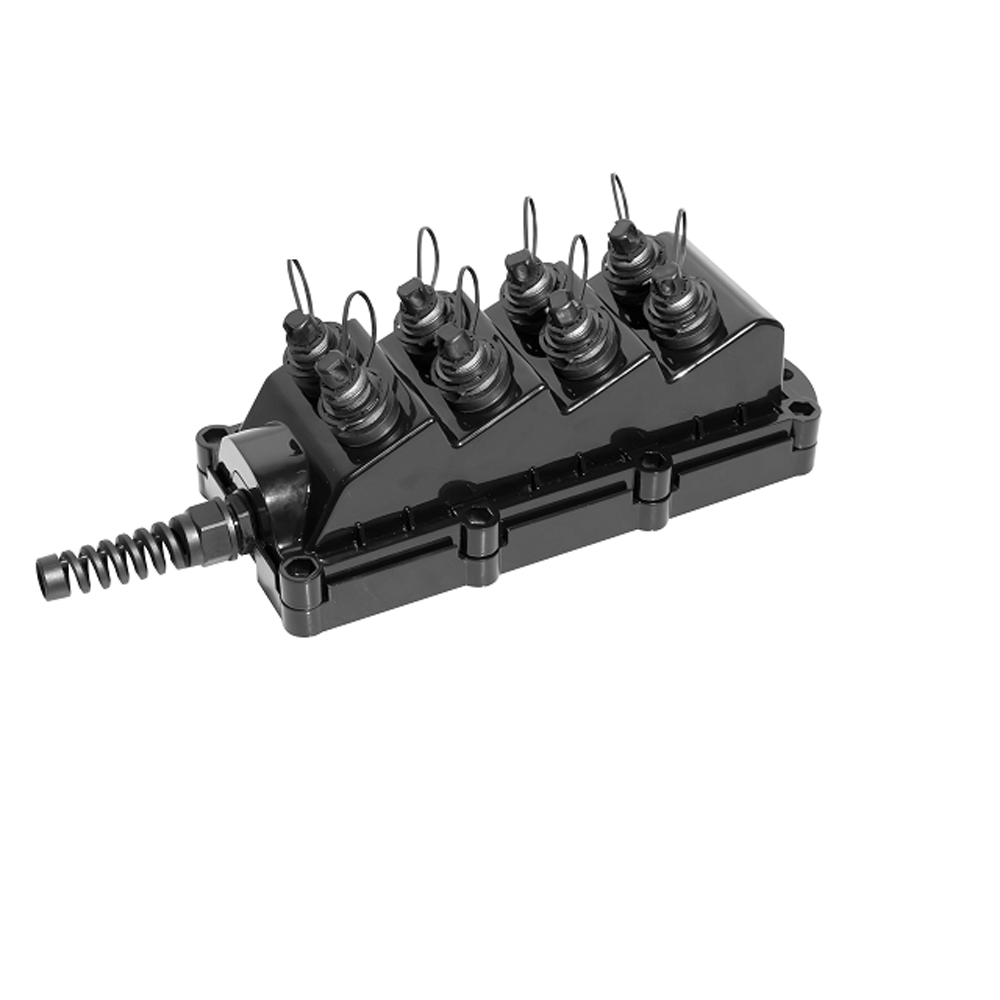

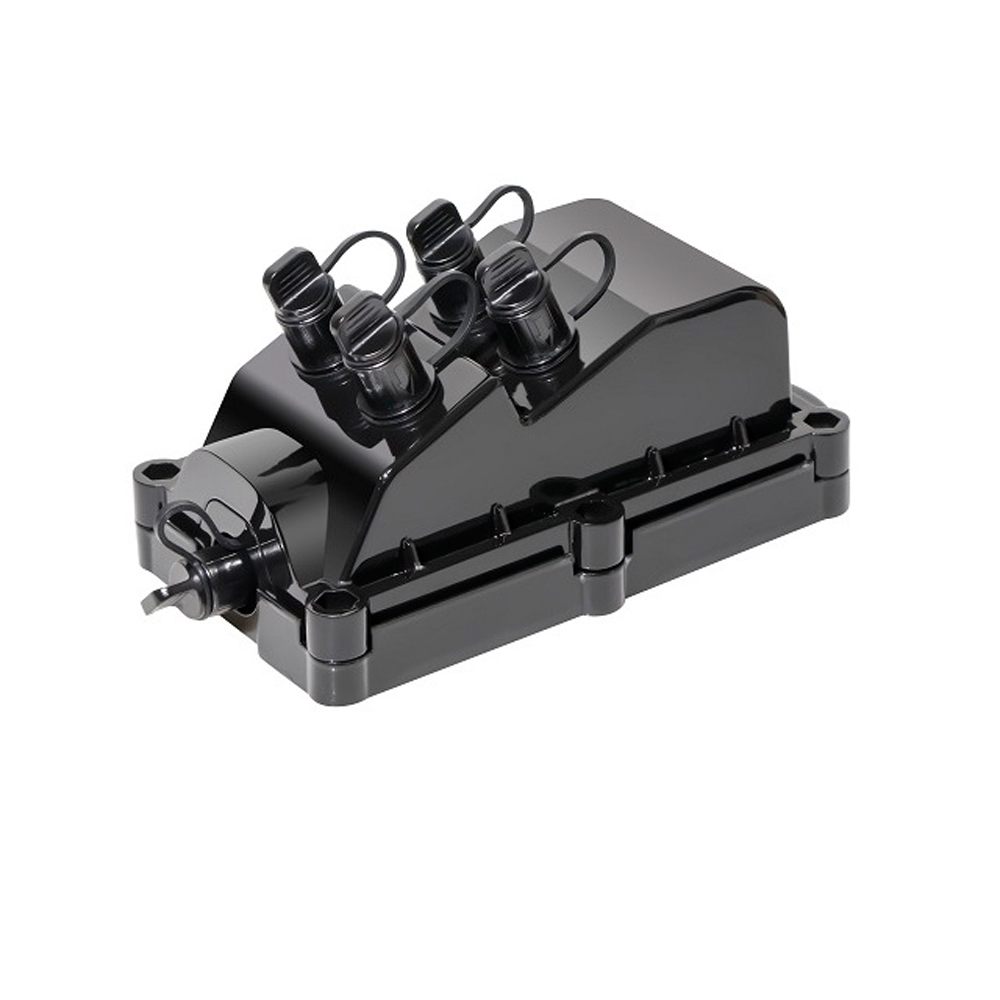

210x105x93mm(4Core) 283x105x95mm(8Core) |
|
Ingress Protection |
IP68 |
|
Working Temperature |
-40~85℃ |
|
Cable Strength Member |
Armoured or Non-armoured |
|
Cable Type |
Hybrid or non-hybrid |
|
Round Cable OD |
5.0mm to 14.0mm |
|
Flat Cable Dimension |
4.6x8.9mm |
|
Cable Jacket Material |
LSZH,PE or TPU |
|
Bending RadiuS |
20D |
|
Cable Crush Resistance |
200N/cm long term |
|
Tensile Strength |
1200N long term |
|
UV Resistance |
ISO 4892-3 |
|
Fire Protection Rating
|
UL94-V0
|
| Number of PLC |
1~2pcs |
|
Number of Fusion Protection Sleeves |
1~24pcs |
| Configuration | ||
|
|
Standard |
Optional |
|
Input Hole |
PG13.5 |
MINI SC, H Connectors(OptiTap), OptiTap-MPO, ODVA or Customized |
|
Output Hole |
MINI SC,H connector |
MINI SC, H Connectors(OptiTap), OptiTap-MPO, ODVA or Customized |
|
Extend Hole |
Closed |
MINI SC, H Connectors(OptiTap), OptiTap-MPO, ODVA or Customized |
FTTH Waterproof IP68 6core Optitap H connector MST Box Fiber Optical Distribution Terminal Box
