OTDR launch cable

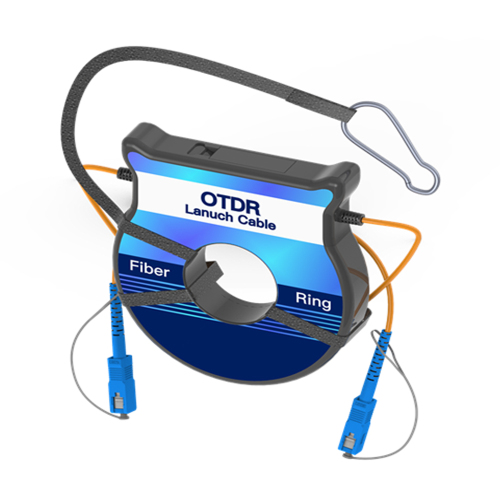

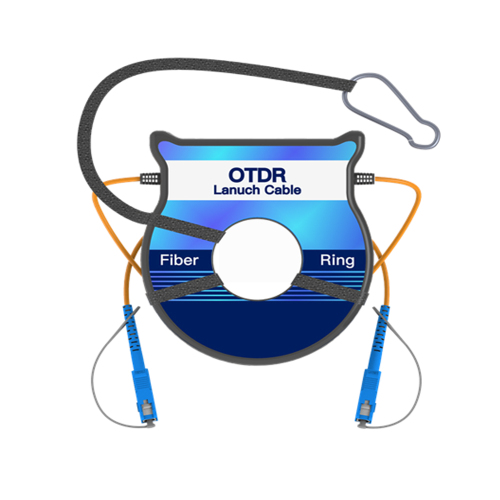

OTDR optical fiber launch cable is used to measure the loss and reflectivity of the proximal connection and remote con-corrupt insertion of the optical fiber line using OTDR. Each OTDR launch cable can be used as an OTDR transmitting and receiving cable, both of which were necessary to eliminate blind spots when measuring the complete line loss of the optical fiber with OTDR. OTDR launch cable adopts coiled design,easy to carry,compact and light. Various length options, very suitable for short, medium,long distance fiber network test applications.
How to generate a baseline trace using fiber rings
1. Use the fiber ring as a launch cable the fiber ring between your OTDR and the fibre link under test. This will allow you to measure the loss of the near end connection.
2. Use the fibre ring as a receive cable connect the fiber ring to the far end connector of your fibre link under est. This will allow you to measure the loss of the far end connection.
3. By using the jump cable as a transmitting and receiving cable. You can measure the total insertion loss of the fiber link.
Features :
1. Compact,rugged,light weight
2. 150/300/1000 meter length standard
3. Available with a variety of connector options
4. Compact fits easily in ODR cases
5. Adapters special storage bin design
6. For use as OTDR launch receive cable
7. Measure insertion loss and reflectance of near-and far -end connections of a fiber optic link using an OTDR.
8. Use to test link loss with an OTDR.
Product Model
|
Configuration |
Fiber Type |
Length |
Model |
|
Standard ,coupler |
SM |
150 M |
OS2-150M,9/125um |
|
Standard ,coupler |
SM |
300 M |
OS2-300M,9/125um |
|
Standard ,coupler |
SM |
500M |
OS2-500M,9/125um |
|
Standard ,coupler |
SM |
1KM |
OS2-1KM,9/125um |
|
Standard ,coupler |
MM |
500M |
Om1-500m,62.5/125um |
|
Standard ,coupler |
MM |
1KM |
Om1-1km,62.5/125um |
|
Standard ,coupler |
MM |
1KM |
Om2-500M,50/125um |
|
Standard ,coupler |
MM |
500M |
Om2-1KM,50/125um |
|
Standard ,coupler |
MM |
100M |
Om3-100M,50/125um |
|
Standard ,coupler |
MM |
300M |
Om3-300M,50/125um |
