Fiber Spool for Launch Cable

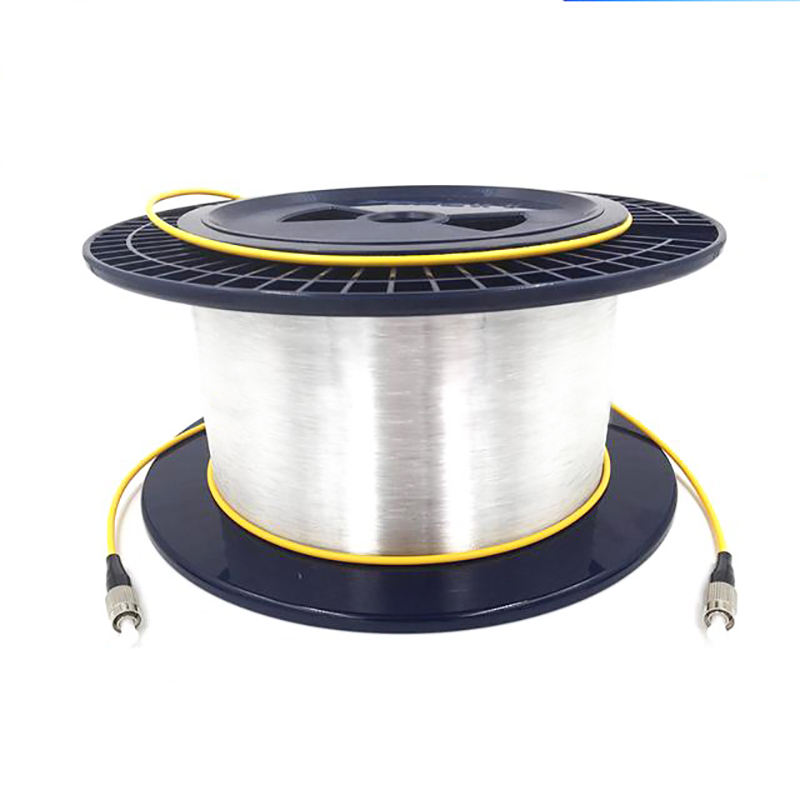

Measuring an insertion loss of the near-end and / or far-end connection of a fiber optic link with an OTDR requires a launch and / or receive test cable. A launch cable, which connects the OTDR to the link under test, reveals the insertion loss and reflectance of the near-end connection. A receive cable, which connects to the far-end of the link, reveals the insertion loss and reflectance of the far-end connection. Launch and receive test cables can range from 1km to 20km (or longer) in length. Because very long test cables are impractical to transport and use, We offer coiled lengths of 50μm multimode, 62.5μm multimode, or single-mode fiber packaged in compact rings. Fiber Rings of 1 km of single-mode fiber are designed for broadband, long-haul fiber network test applications.
· For use as OTDR launch cable
· For use as OTDR receive cable
· Measure insertion loss and reflectance of near- and far-end connections of a fiber optic link using an OTDR
· Use to test link loss with an OTDR
|
Fiber Type |
Length (KM) |
Input Connector Type |
Output Connector Type |
|
S: SM fiber |
1 |
FC: FC/PC |
FC: FC/PC |
|
M6: MM fiber (62.5/125μm) |
2 |
SC: SC/PC |
SC: SC/PC |
|
M5: MM fiber (50/125μm) |
3 |
ST: ST/PC |
ST: ST/PC |
|
|
4 |
LC: LC/PC |
LC: LC/PC |
|
|
5 |
FCA: FC/APC |
FCA: FC/APC |
|
|
... |
SCA: SC/APC |
SCA: SC/APC |
|
|
|
STA: ST/APC |
STA: ST/APC |
|
|
|
LCA: LC/APC |
LCA: LC/APC |
|
|
|
Other types on request |
|
Bare Fiber Optic OTDR Launch Cable
