Product description

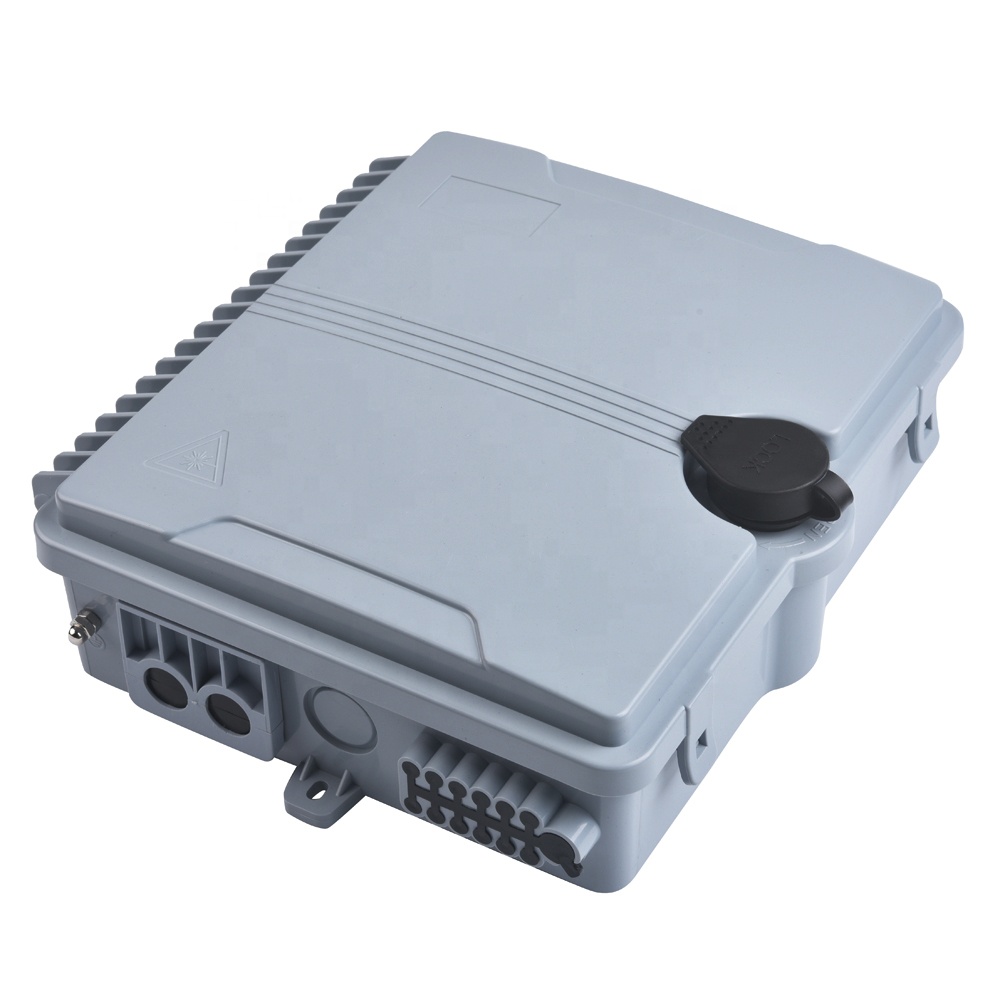

12core FTTH Fiber Optical Terminal Box
1.Overview
1.1 This distribution box terminates up to 2 fiber optic cables, offers spaces for splitters
and up to 12 fusions, allocates 12 SC adapters and working under outdoor
environments. It is a perfect cost-effective solution-provider in the FTTx networks.
2.Specifications
|
Dimensions and Capacity |
|
|
Dimensions (H*W*D) |
232mm*213mm*69mm |
|
Color |
Black or Gray |
|
Weight |
730 g |
|
Adapter Type |
SC Simplex/LC Duplex |
|
Adapter Capacity |
12 pcs |
|
Splitter Type |
1*4/1*8 mini type splitter |
|
Number of Cable Entrance(s) and Exit(s) |
2:12 |
|
Cable inlet caliber |
13mm |
|
Optional Accessories |
Adapters, Pigtails, Heat Shrink Tubes, Micro Splitter |
|
Working Temperature |
-40°C～+65°C |
|
Shipping Information |
|
|
Package Contents |
Fiber optics distribution box, 1 unit; Keys for lock, 2 keys; |
|
Package Dimensions(W*H*D) |
235mm*222mm*76mm |
|
Material |
Carton box |
|
Weight |
800 g |

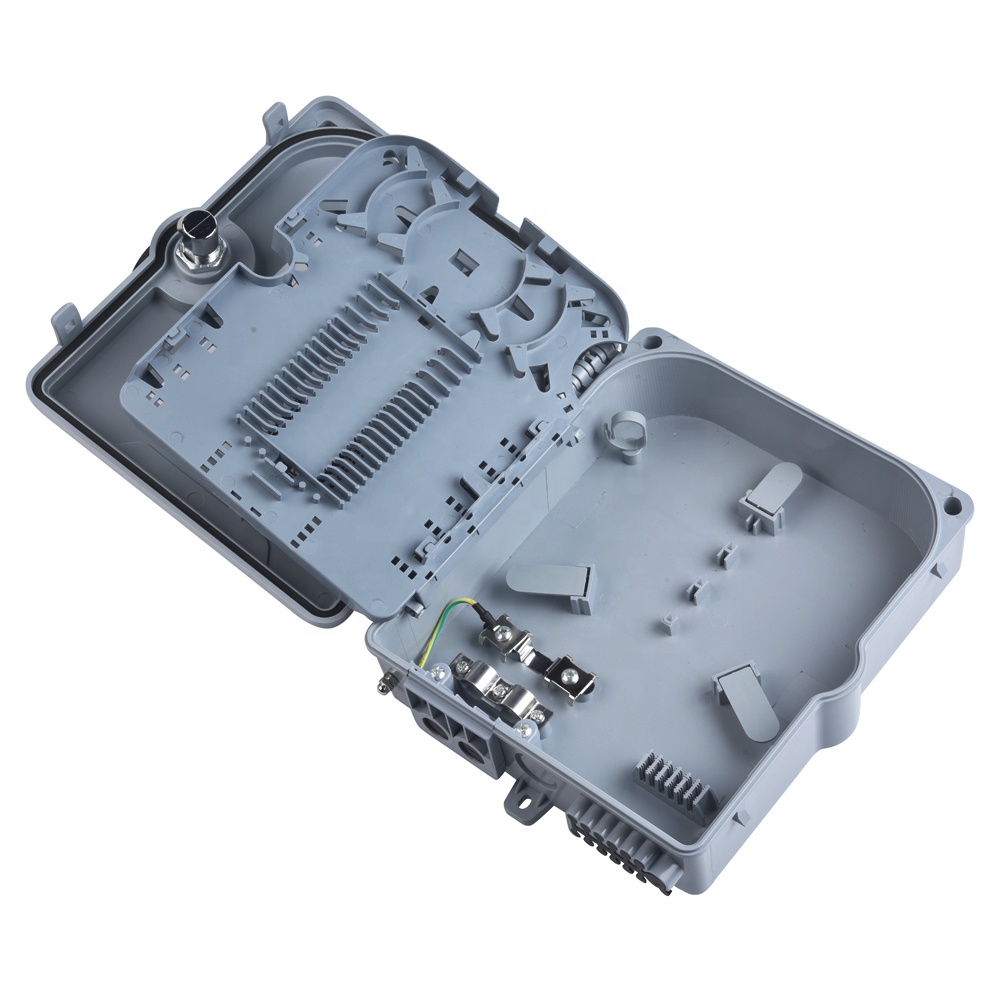

3.Structure and Features
3.1 Splice and patch cord use Separation structure, easy to Capacity expansion and maintenance；
3.2 High quality plastic,Beautiful appearance；
3.3 Internal turnover structure,easy to maintenance；
3.4 Can install 12 pcs of SC adapters；
3.5 Can install mini type splitter；
3.6 Could exit 12 pcs of drop cable；
3.7 Protection levels：IP65
4.Installation instructions
4.1Installation preparation
Checking the product :As per the packing list to check it one by one.
Documents Tools
|
No. |
type |
Tool’s name |
|
1 |
replacement tool |
spanner、sleeve、bolt driver、electric drill、small hammer and so on |
4.2 Fiber-optical stripping and fix.
As per the requirement,open the hole-at the bottom of the box,then install the seal rings
As per the cable size to cut seal rings, cable through the it
Adjust the length of cable, keep extra cable around 0.5m；
Clean the cable, cut the cable protector around 0.4m,keep armoured part around 30mm,keep the fiber around 60mm；
When strip the cable ,use insulating tape or heat shrink protector；
Put the fiber through the hole,fix it with clamp, then tighten the screws.
4.3 Trunk optical cable splice and route with pigtail
Strip the fiber and pigtail, 1.3m to 1.5m, then put the tube protector；
Open the tray, splice the fiber；
Put the finished fiber into the tray ；
Fixed the fiber and pigtail；
Remark the fiber and record it

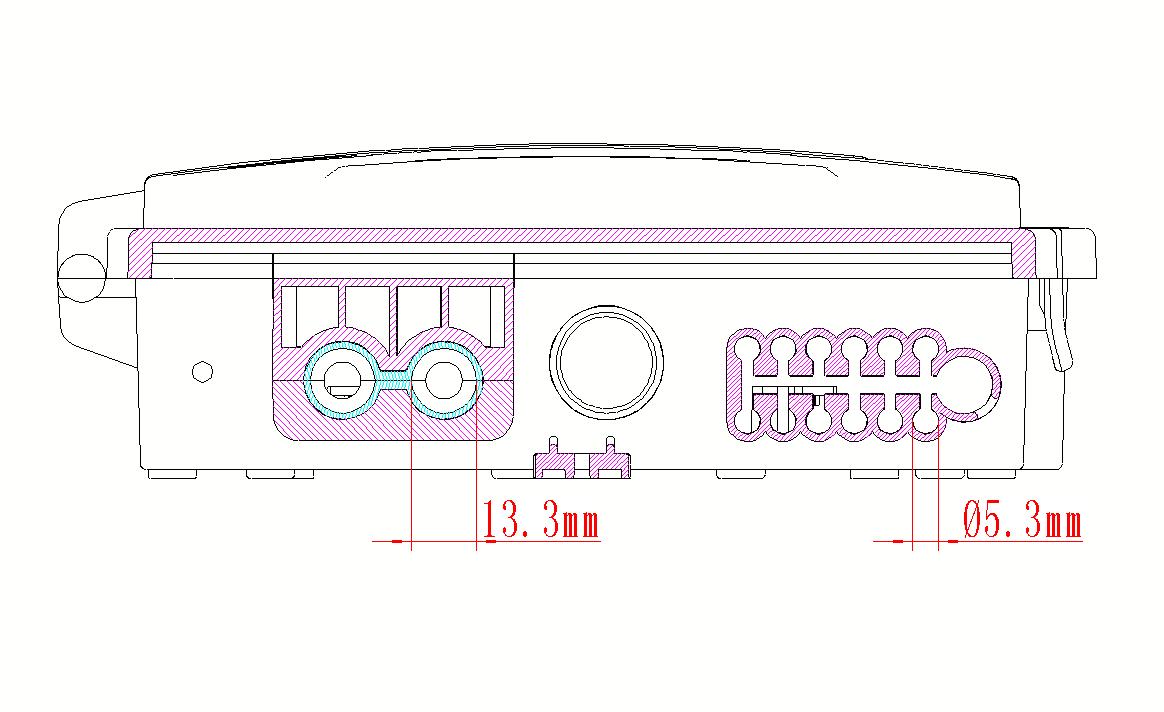

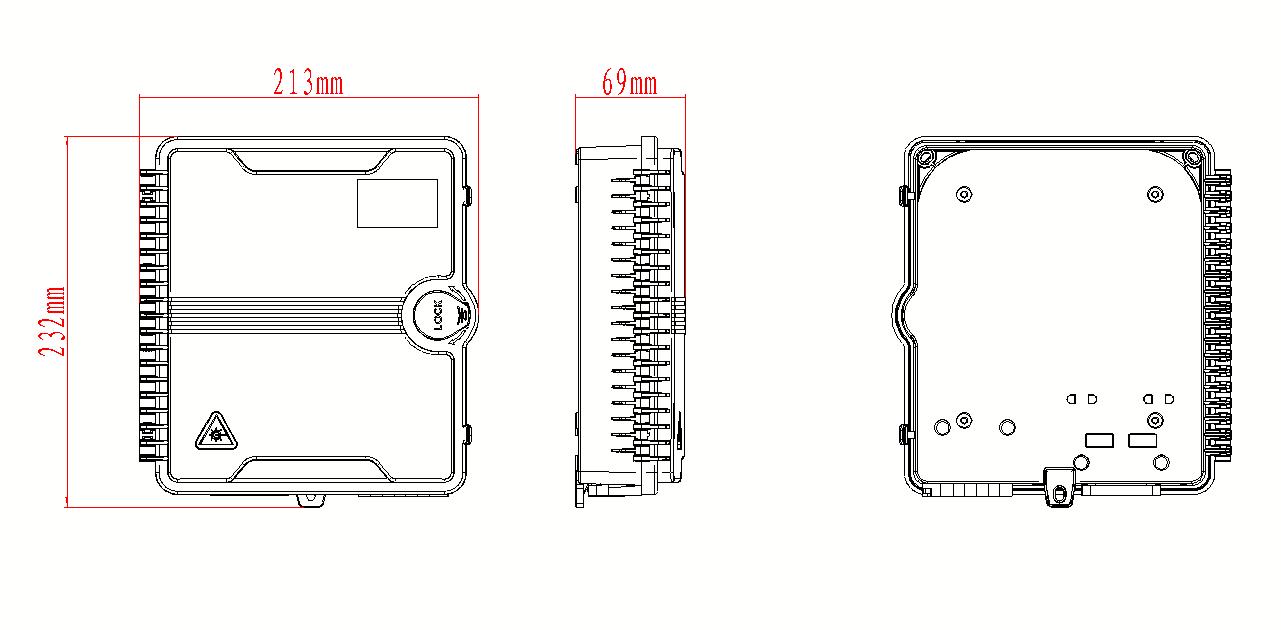

4.4 Mounting Size for reference
12core FTTH Fiber Optical Terminal Box
