Basic Info
| Brand Name | OEM |
| place of origin | China |
| Material | Plastic |
| Fiber Type | G657A or customized |
| Application | FTTX (FTTP, FTTH, FTTN, FTTC) |
| Certification | CE,RoHS,ISO9001 |
| Connector Type | SC, FC, LC or customized |
| Cable type | 0.9mm |
| No of fiber | 8,16,32,64 |
Product description
Introduction
LGX Cassette Fiber PLC hairsplitter is a product based on planar optical guideway technology. The product has the characteristics of low IL, polarization dependent loss and high channel uniformity.
JJT can provide customized designs to meet specialized feature applications, and also offers modular assemblies that integrated other components to form a full function module.
Application
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Network (PON) & CATV System
Telecommunication Network and Fiber Optic Sensors
Characteristics
The product is made of ABS ,It has the characteristics of small volume, compact structure, low IL, uniform polarization loss and power distribution, good environmental adaptability. Its performance meets GR-1209-CORE, GR-1221-CORE, YD / T 2000.1-2009 and Ohs specifications.
Technical Specification
|
Item |
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
|
|
L(mm) |
130 |
130 |
130 |
130 |
130 |
130 |
130 |
130 |
130 |
130 |
130 |
130 |
|
|
W(mm) |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
|
|
H(mm) |
25 |
25 |
25 |
50 |
102 |
206 |
25 |
25 |
25 |
50 |
102 |
206 |
|
|
Wavelength(NM) |
1260~1650 |
1260~1650 |
|||||||||||
|
IL (dB) |
Max |
4.1 |
7.4 |
10.8 |
14.3 |
17.3 |
21 |
3.8 |
7.1 |
10.2 |
13.5 |
16.8 |
20.5 |
|
Uniformity of IL (dB) |
Max |
0.8 |
0.8 |
0.8 |
1.0 |
1.5 |
2.0 |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2 |
|
Polarization dependent loss (dB) |
Max |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.4 |
0.2 |
0.2 |
0.2 |
0.3 |
0.3 |
0.35 |
|
Directivity(dB) |
Mini |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
|
RL(dB) |
Mini |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
|
Fiber type |
G657A or customized |
||||||||||||
|
Connector type |
SC, FC, LC or customized |
||||||||||||
|
Working temperature(℃) |
-40~85 |
||||||||||||
|
Storage temperature (℃) |
-40~85 |
||||||||||||

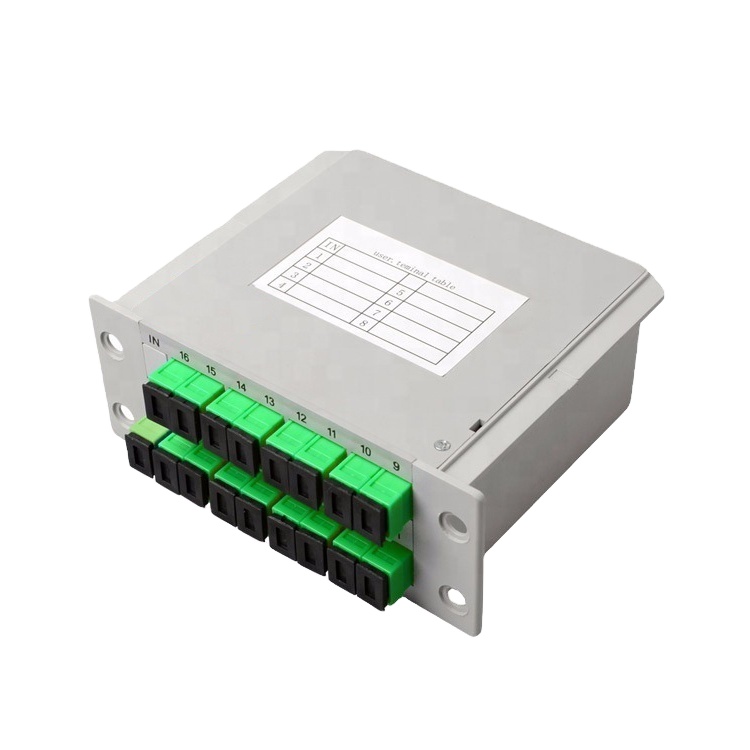

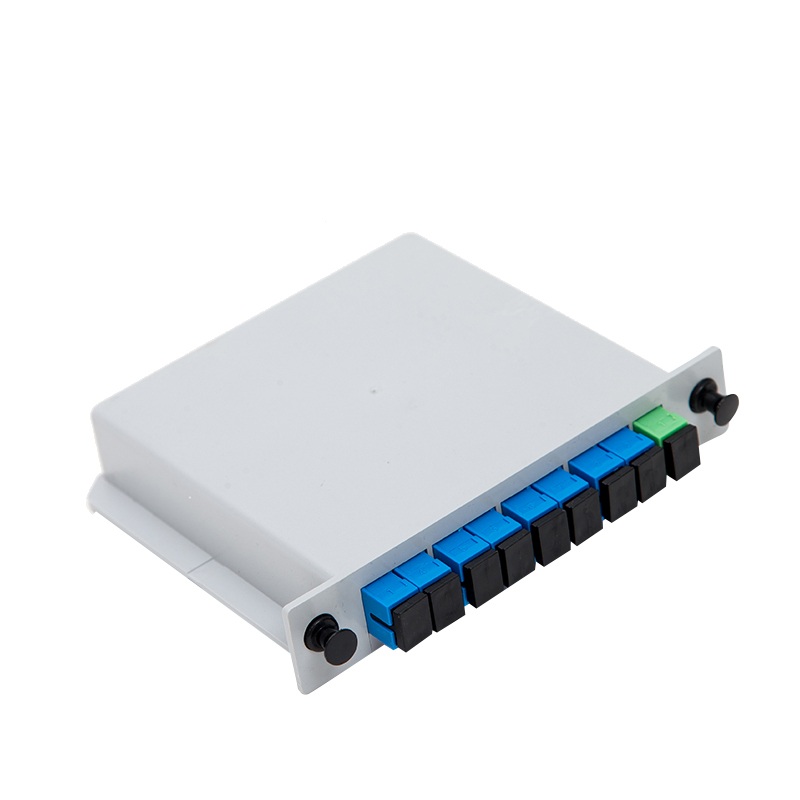

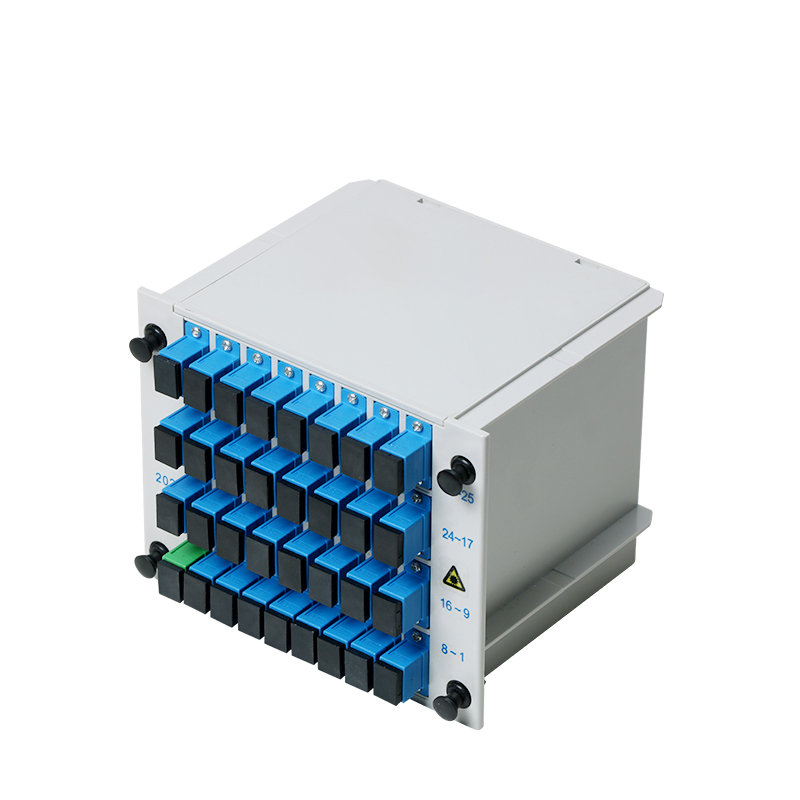

Plug In Plastic LGX Casstte
