| Model No. | FC SX Adapter with Rectangle Flange |
|---|---|
| Brand Name | oem |
| place of origin | China |
| Adapter Type | FC |
| Insertion Loss | ≤0.2dB |
| Body Style | Simplex |
| Aligment Sleeve Material | Ceramic |
| Material | Metal |
| RoHS Compliancy Status | Compliant |
| Mounting Type | Rectangle Flange |
Product description
FC Simplex Adapter.With metal body.Pleastic cap.
A fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. JJT supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters.
Features
> Low Insertion Loss
> Compliant with IEC
> High Precision of Mechanical Dimensions
> RoHS Compliance
> Available Ceramic Sleeves
>Integration design in housing, no welded point
>With / without inner shutter
Applications
> CATV System
> Local Area Networks
> Telecommunication Networks
> FTTH and FTTx
> Testing Equipment
> Fiber LAN
Specification
|
Connector Type |
FC Simplex |
Cap Color |
Red/white/black/yellow/Green |
|
Insertion Loss |
<0.20dB |
Sleeve |
Ceramic |
|
Durability |
<0.2dB Change 1000 times |
Repeatability |
<0.2dB |
|
Mounting Type |
Rectangle flange |
Compliance |
RoHS/CE/ISO 9001/IEC |
|
Operating Temp |
-40℃ to +75℃ |
Storage Temp. |
-40℃～+85℃ |
|
Flammability Rate |
UL94-V0 |
Package |
50 Pcs/Blister Box |

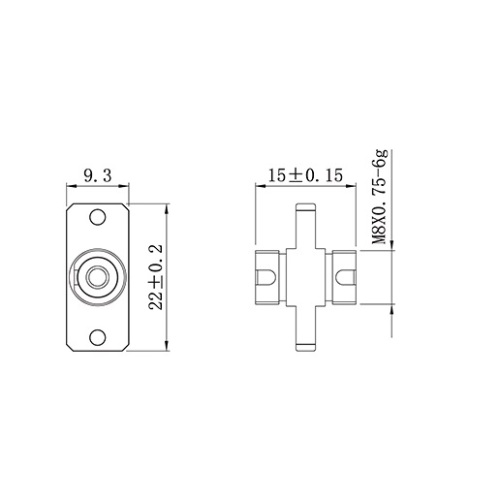

Drawing

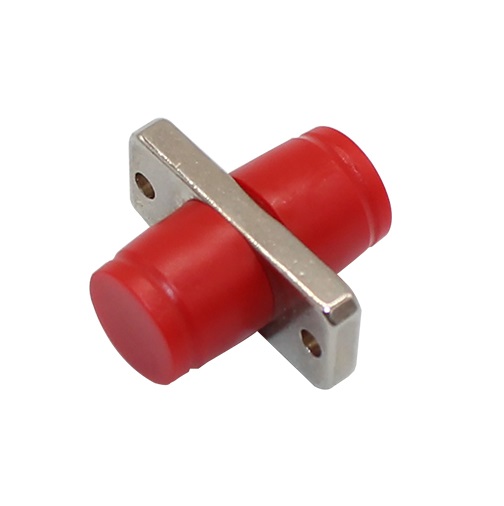

FC SX Adapter with Rectangle Flange
