Basic Info
| Model No. | JJ-MP-03 |
| Width | 200mm |
| Axle OD | Ø72mm |
| Remarks | Aluminium structure ,manpack type |
| Dimension | 410*440*400mm |
| Drum OD | Ø230mm |
| Packing Dimension | 440*500*460mm polywood case |
| Gross Weight | 10KGS |
| Net Weight | 5 |
Product description

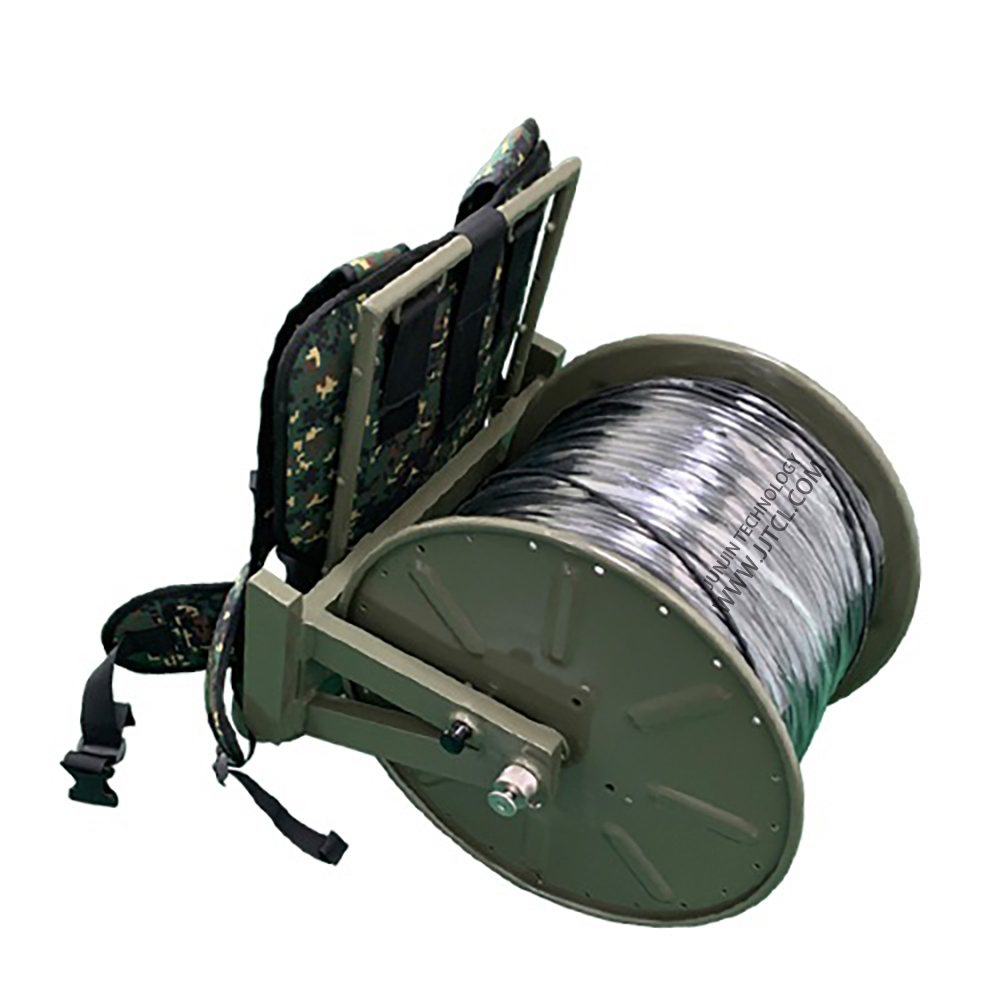

JJ-MP-03 manpack fiber optic cable reel roller
Introduction:
- Aluminium structure
- Manpack type
- Can hold on 3.0mm to 10.0mm cable OD
The mobile per-terminated armoured cable reel is developed for temporary field deployment where fiber connections are required. It comes in a portable cable reel for ease of transportation and deployment. The armoured cable is flexible and is able to withstand multiple usages without kinks. One end of the cable is fixed to the reel while the other end is coiled freely for patching to the equipments. Generally these will be customized base on user's requirement so there are options of various cable and connector type with any cable length which then will determine the size of the reel.
Application:
1.Military communication system
2.Passive optical networks (PON)
3. Coal, oil, natural gas, geological exploration
4.Broadcast television, temporary communication and so on.
Features:
1) Using flexible steel armor to protect optical fiber, making sure minimum damage
2)Prevents damage from improper twisting, high resistance to crush and high tensile strength
3) Mechanical protection against pest and rodent
4)Rotating reel for deploying and retracting of cable and comes with braking system
5)Various connectors are available such as FC/SC/ST/MU/LC/PDLC/ MPO..
6)Various cable are available, such CPRI cable, TPU Cable, Tactical cable, multicore indoor/outdoor cable etc.
General Specification
|
Type |
JJ-PP-03 |
Dimension |
410*440*400mm |
|||||
|
Drum OD |
Ø230mm |
Axle OD |
Ø72mm |
|||||
|
Width |
200mm |
Packing size |
440*500*460mm polywood case |
|||||
|
Gross Weight |
10KGS |
Net Weight |
5KGS(Exclude drum) |
|||||
|
Cable OD |
3.0mm |
4.0mm |
5.0mm |
6.0mm |
7.0mm |
8.0mm |
9.0mm |
10mm |
|
Capacity |
1800M |
1000M |
600M |
450M |
320M |
250M |
200M |
160M |
|
Remarks |
Aluminium structure ,manpack type |
|||||||
JJ-MP-03 Manpack fiber optic cable reel roller
