Basic Info
| Brand Name | OEM |
| place of origin | China |
| Number of cores | 2 |
| Length | Customized |
| Brand Name | OEM |
| Connector type | LC Uniboot |
| Fiber type | SM or MM |
| Polish type | UPC/APC/PC |
| Cable OD | 2.0mm or 3.0mm |
Product description

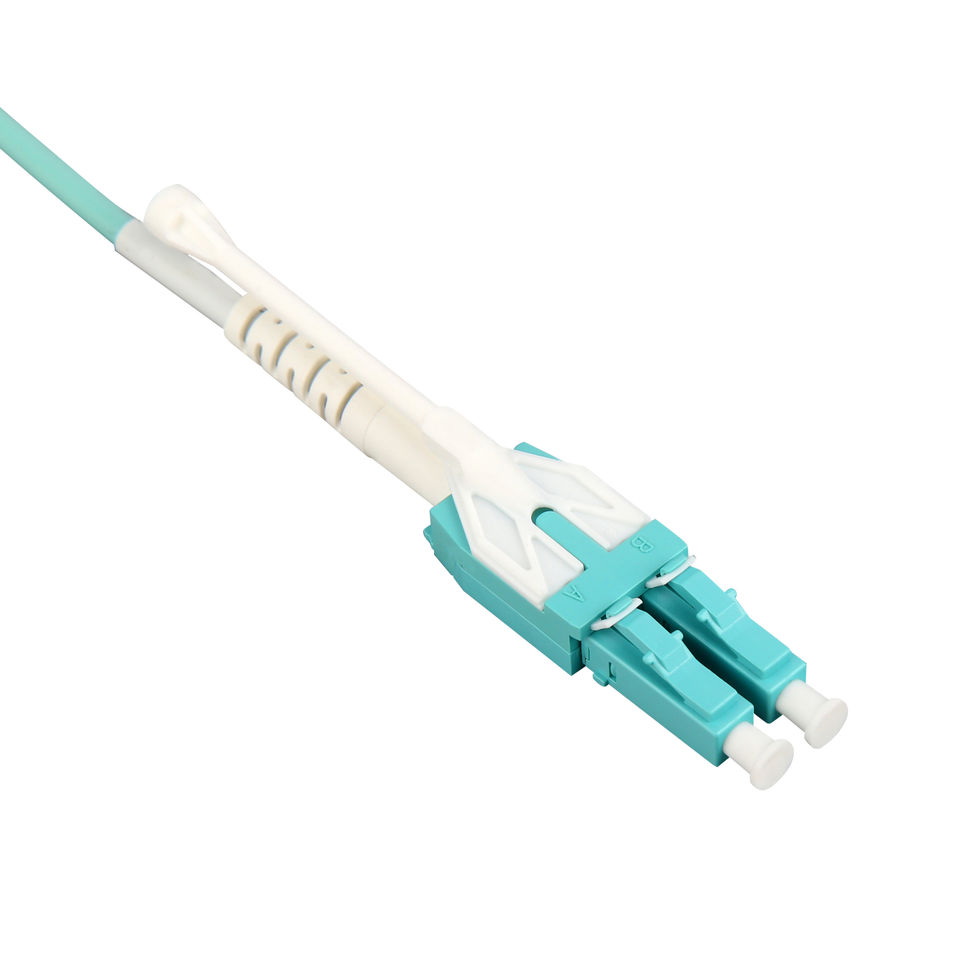

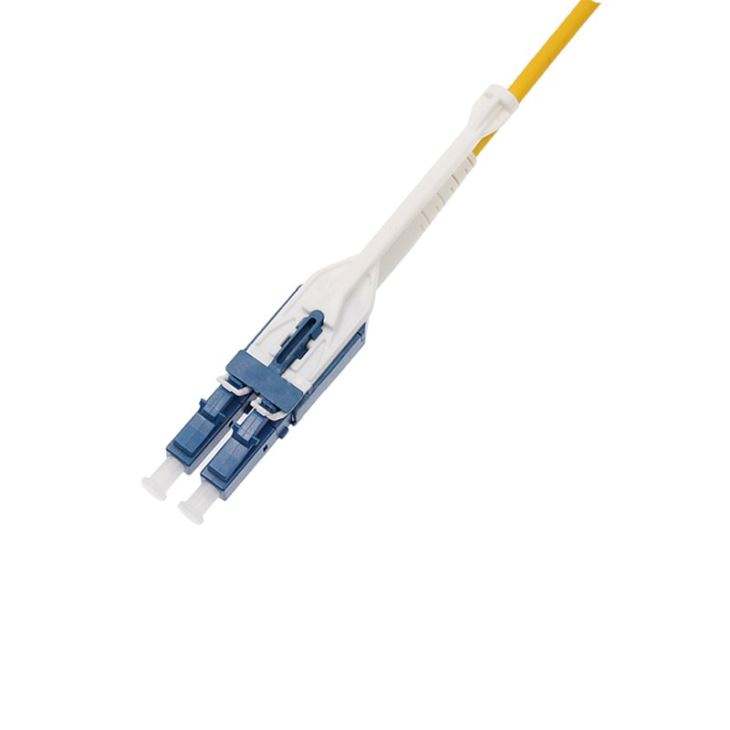

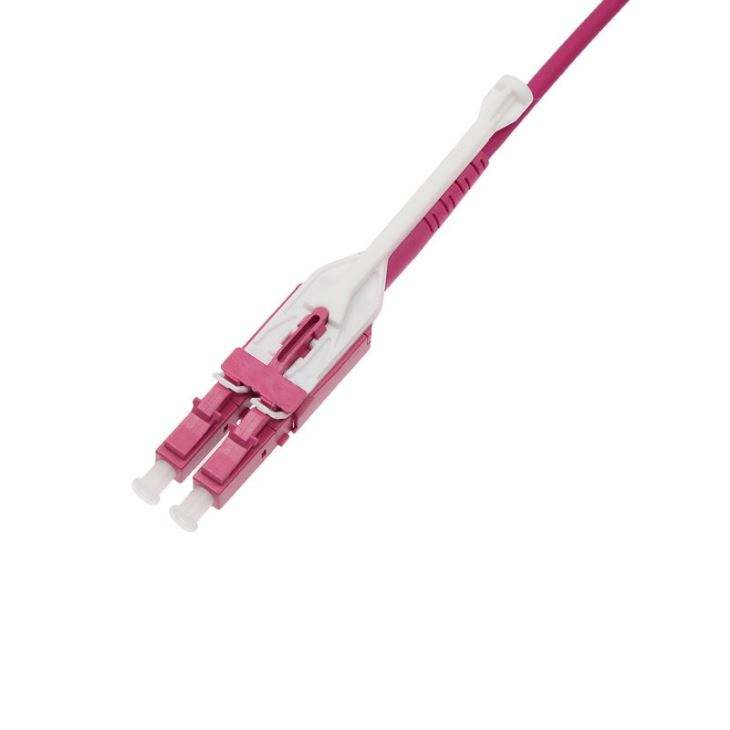

JJT’s range of LC Uniboot patchcords with integrated push/pull tab are the ideal solution for high density patching environments. The unique push pull tab allows easy finger access and a secure holding fixture for any patching or handling process. The attractive, low profile uniboot connector design utilises round 2 mm duplex cord for neater and denser cable management. For multimode OM4 and OM3 applications, low loss connectors are used to offer the lowest possible channel loss.
Features
• Integrated push pull tab for ease of access and handling
• Low profile design reduces patching footprint
• Round 2 mm DX fibre design minimizes patch cable volume and enhances looming neatness
• Low loss, high performance multimode connectors to minimize channel losses
Performance Index
|
Item |
SM(Single Mode) |
MM(Multimode) |
|||
|
Fiber Cable Type |
G652/G655/G657 |
OM1 |
OM2/OM3/OM4 |
||
|
Fiber Diameter (um) |
9/125 |
62.5/125 |
50/125 |
||
|
Cable OD (mm) |
0.9/1.6/1.8/2.0/2.4/3.0 |
||||
|
Endface Type |
PC |
UPC |
APC |
UPC |
UPC |
|
Typical Insertion Loss (dB) |
<0.2 |
<0.15 |
<0.2 |
<0.1 |
<0.1 |
|
Return Loss (dB) |
>45 |
>50 |
>60 |
/ |
|
|
Insert-pull Test (dB) |
<0.2 |
<0.3 |
<0.15 |
||
|
Interchangeability (dB) |
<0.1 |
<0.15 |
<0.1 |
||
|
Anti-tensile Force (N) |
>70 |
||||
|
Temperature Range (℃) |
-40~+80 |
||||
Applications
• Termination enclosure to equipment patching
• Equipment to equipment patching
• Cross-connect patching (for high density patching)
High Density LC Uniboot Patchcord with Pull/Push Tap
