Basic Info
| Model No. | LC |
| Brand Name | OEM |
| place of origin | China |
| Number of cores | 2 |
| Connector type | LC |
| Boot type | Uniboot |
| Polish type | UPC/APC/PC |
| Fiber type | SM or MM |
| Durability | 500 Cycles |
| AB Polarity Switchable | Available |
| Operating Temperature | -40 to + 85°C |
| Cable Length | Customized |
| Cable OD | 2.0mm or 3.0mm |
Product description

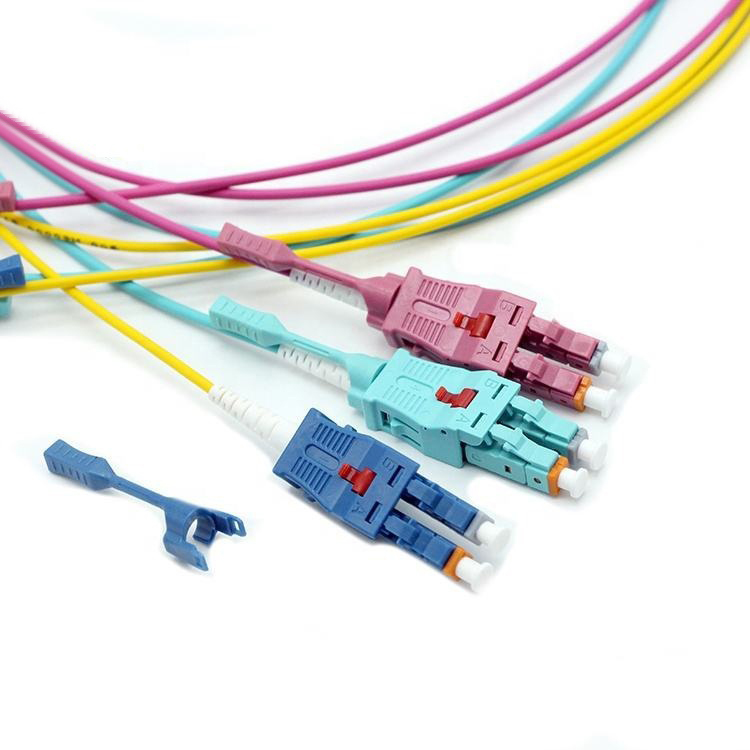

LC UNIBOOT CONNECTOR WITH SWITCHABLE POLARITY
This Polarity Switchable uniboot LC connector With Push/Pull Tap is a Chinese independent intellectual property rights connector. It has a unique design that allows to switch polarity without using any tooling. The Push/Pull Tap is very easy to grab to Insert and pull out from LC adapter. One more Great design is that the tap can be removed after insertion. Makes the installation Job become easy and high efficient.
The Uni-boot LC patch cable utilizes a special “round duplex” cable that allows duplex transmission within a single 2mm cable ,cable materials including LSZH, Plenum and Riser.
Our Polarity Switchable uniboot LC fiber patch cable reduces cable management space by up to 68% compared to standard patch cables. It reduces cable management space comparing to standard patch cables. As a result of these features our uniboot patch cable offers improved airflow and visibility of equipment within a high density network environment.
LC Uniboot cable assemblies offer the best solution for high-density applications, data centers, interconnect and cross connector, private networks and premise installations.
Products details
Optical Specifications
|
Fiber Connector |
Push/Pull Tab Uniboot LC
To
Push/Pull Tab LC Uniboot |
Fiber Type |
SM:Yellow/Blue/White; OM1&OM2: Orange; OM3:Aqua; OM4:Aqua/Violet/ Magenta |
|
Cable OD&Jacket |
1.6mm/1.7mm,/1.8mm/2.0 mm PVC/LSZH |
Fiber Counts |
2 Fibers |
|
Insertion Loss |
≤0.3dB(IEC Grade C) ≤0.12dB(IEC Grade B) |
Return Loss |
SM UPC ≥ 50dB(min) SM APC ≥ 60dB(min) MM PC ≥ 35dB(min) |
|
Pull-out Force |
100N |
Durability |
500 Cycles |
|
AB Polarity Switchable |
Available |
Operating Temperature |
-40 to + 85°C |
Geometric Specification( if Customer requested)
|
Items |
Parameter |
|||
|
Polishing |
PC |
APC |
||
|
ROC |
LC |
7~ 25 |
5 ~ 12 |
|
|
Apex Offset |
≤ 50 |
|||
|
Fiber Spherical Height |
±100 |
|||
|
Angle |
± 0.5 |
8 ± 0.5 |
||
End-face Quality (SM)
|
Zone |
Range (μm) |
Scratches |
Defects |
Reference |
|
A: Core |
0 to 25 |
None |
None |
IEC 61300-3 -35:2015 |
|
B: Cladding |
25 to 115 |
None |
None |
|
|
C: Adhesive |
115 to 135 |
None |
None |
|
|
D: Contact |
135 to 250 |
None |
None |
|
|
E: Rest of ferrule |
None |
None |
||
End-face Quality (MM)
|
Zone |
Range (μm) |
Scratches |
Defects |
Reference |
|
A: Core |
0 to 65 |
None |
None |
IEC 61300-3 -35:2015 |
|
B: Cladding |
65 to 115 |
None |
None |
|
|
C: Adhesive |
115 to 135 |
None |
None |
|
|
D: Contact |
135 to 250 |
None |
None |
|
|
E: Rest of ferrule |
None |
None |
||
High Density LC Uniboot Patch cord with Polarity Exchangable
