| Model No. | LC Quad Adapter with Full Flange |
|---|---|
| Brand Name | OEM |
| place of origin | China |
| Number of cores | 1 |
| Type | SM/MM |
| Insertion Loss | <0.20dB |
| Sleeve | Ceramic |
| Operating Temp | -40℃ to +75℃ |
| Durability | <0.2dB Change 1000 times |
| Mounting Type | With flange |
| Product Name | LC Quad adapter |
Product description

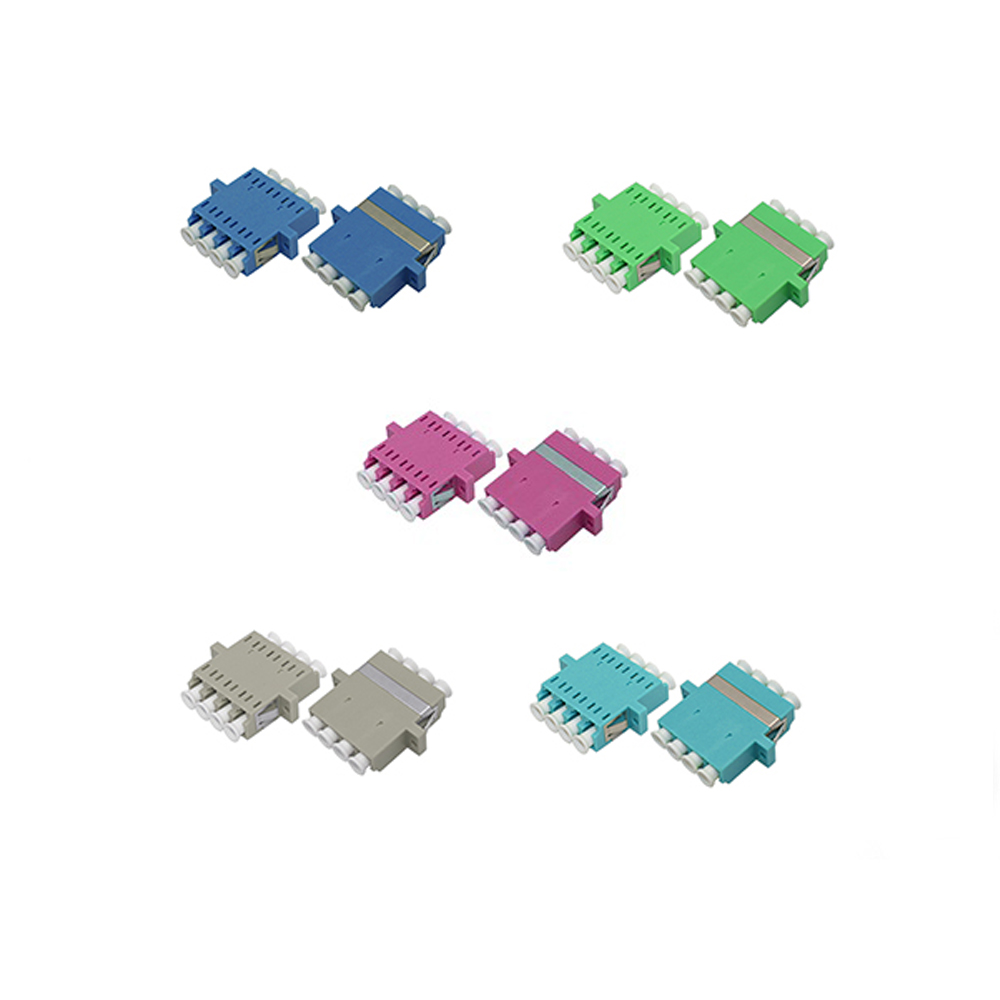

LC Quad ADAPTER with flange.SM UPC blue,APC green,MM with beige,aqua,violet or lime.
A fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. JJT supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters.
Features
> Low Insertion Loss
> Compliant with IEC
> High Precision of Mechanical Dimensions
> RoHS Compliance
> Available Ceramic Sleeves
>Integration design in housing, no welded point
>With / without inner shutter
Applications
> CATV System
> Local Area Networks
> Telecommunication Networks
> FTTH and FTTx
> Testing Equipment
> Fiber LAN
Specification
|
Connector Type |
LC Quad |
Color |
Green/blue/beige/aqua/violet/lime |
|
Insertion Loss |
<0.20dB |
Sleeve |
Ceramic |
|
Durability |
<0.2dB Change 1000 times |
Repeatability |
<0.2dB |
|
Mounting Type |
with flange |
Compliance |
RoHS/CE/ISO 9001/IEC |
|
Operating Temp |
-40℃ to +75℃ |
Storage Temp. |
-40℃～+85℃ |
|
Flammability Rate |
UL94-V0 |
Package |
20 Pcs/Blister Box |
Drawing
LC Quad Adapter with Full Flange
