| Model No. | LC Duplex RJ45 Type Adapter |
|---|---|
| Brand Name | OEM |
| place of origin | China |
| Number of cores | 1 |
| Type | SM/MM |
| Insertion Loss | <0.20dB |
| Sleeve | Ceramic |
| Operating Temp | -40℃ to +75℃ |
| Durability | <0.2dB Change 1000 times |
| Product Name | LC Duplex adapter |
| Mounting Type | With short flange |
Product description

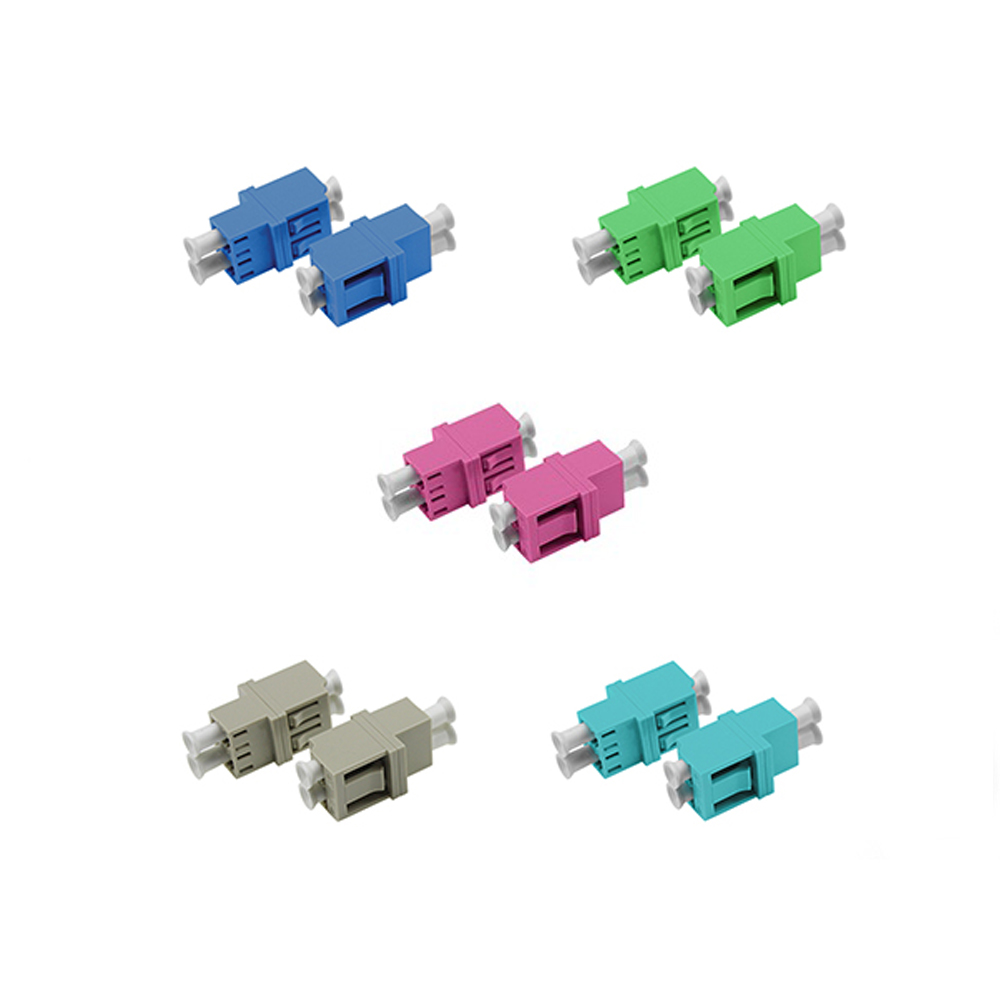

LC Duplex RJ45 Type Adapter.SM UPC blue,APC green.MM with beige,aqua,violet,lime.
A fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. JJT supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters.
Features
> Low Insertion Loss
> Compliant with IEC
> High Precision of Mechanical Dimensions
> RoHS Compliance
> Available Ceramic Sleeves
>Integration design in housing, no welded point
>With / without inner shutter
Applications
> CATV System
> Local Area Networks
> Telecommunication Networks
> FTTH and FTTx
> Testing Equipment
> Fiber LAN
Specification
|
Connector Type |
LC Duplex RJ45 Type |
Color |
Beige/green/blue/aqua/violet/lime |
|
Insertion Loss |
<0.20dB |
Sleeve |
Ceramic |
|
Durability |
<0.2dB Change 1000 times |
Repeatability |
<0.2dB |
|
Mounting Type |
with short flange |
Compliance |
RoHS/CE/ISO 9001/IEC |
|
Operating Temp |
-40℃ to +75℃ |
Storage Temp. |
-40℃～+85℃ |
|
Flammability Rate |
UL94-V0 |
Package |
50 Pcs/Blister Box |

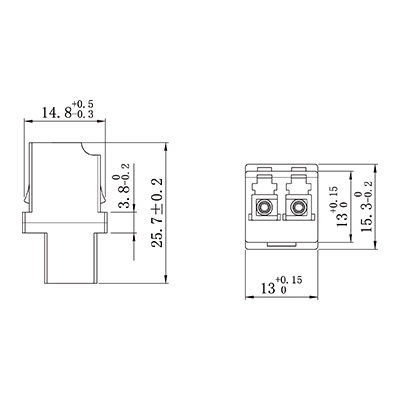

Drawing
LC Duplex RJ45 Type Adapter
