Basic Info
| Model No. | 72F SM pre-terminated mini cable |
| Brand Name | OEM |
| place of origin | China |
| Number of cores | ≥ 10 |
Product description

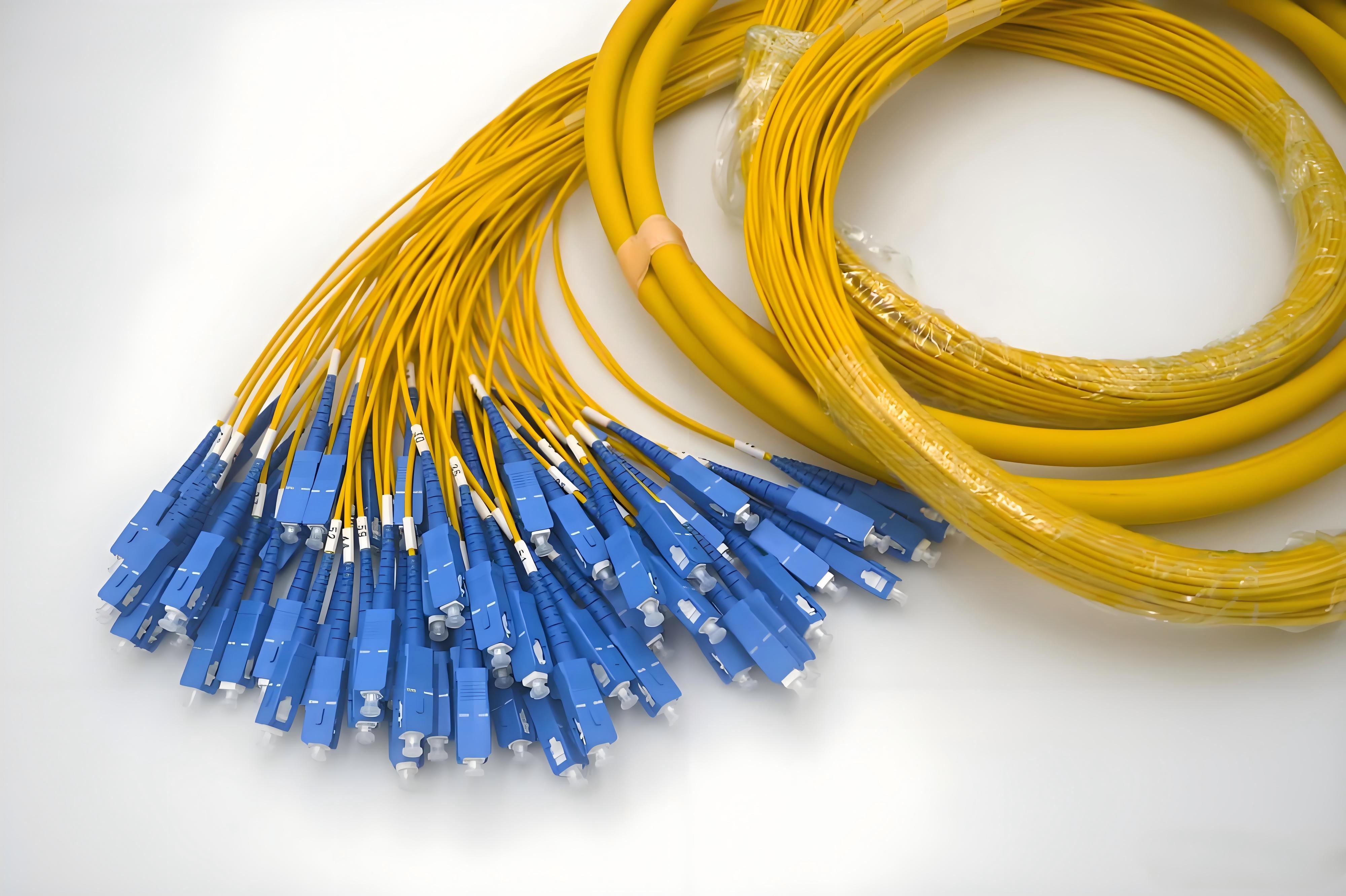

72F 12mm SCUPC-SCAPC Singlemode Pre-Terminated mini Distribution Cable.Customized OFNP/LSZH Jacket with Corning Fiber.
This Type Pre-terminated fiber cable assembly is designed to support today's data needs while meeting tomorrow's ever-advancing network requirements.
It's ideal for connecting the networks of two buildings through the use of an underground conduit, also installed in entrance facilities.
Applications
Data processing networks
Optical access network
Telecommunication networks
Fiber optic communication networks
CATV, LAN, WAN, Test &Measurement
Complied Standards
IL&RL TESTING:Compliant with IEC 61300-3-34 GEOMETRICAL CHARACHTERISTICS:Compliant with IEC 61755-3-1,Connector End face:Compliant with IEC 61300-3-35.Fire resistance comply with low smoking (IEC 61034), halogen free (IEC 60754-1), flame retardant (IEC 60332-1-2), and corrosion proof (IEC 60754-2)
General Specification
|
ConnectorType |
LC/SC/ST/FC |
Polish Type |
UPC/APC |
|
Fiber |
SM OM1 OM2 OM3 OM4 OM5 |
Fiber Count |
72Fibers |
|
Jacket Material |
LSZH OFNR OFNP TPU |
Minimum Bend Radius |
20/10D (Dynamic/Static) |
|
Jacket Color |
12 colors |
Main Cable OD |
12mm |
|
Breakout OD |
2.0mm |
Return Loss |
UPC≥50dB, APC≥60dB |
|
Insertion Loss |
≤0.3dB |
Max. Tension of Pulling Eye |
245N |
|
Cable Type |
mini Distribution Cable |
Operating Temperature |
-20~70°C |
Cable Structure
SCAPC-SCUPC 72F 12mm SM pre-terminated mini cable
