| place of origin | China |
|---|---|
| Number of cores | 8 |
| Fiber Color | Original |
| Fiber OD | 242±7 um |
| Buffered OD | 0.87±0.05㎜ |
| Buffered Thickens | 0.31±0.02 ㎜ |
| Outer jacket Material | PVC |
| Outer jacket OD | 5.8±0.20mm |
Product description
Specification

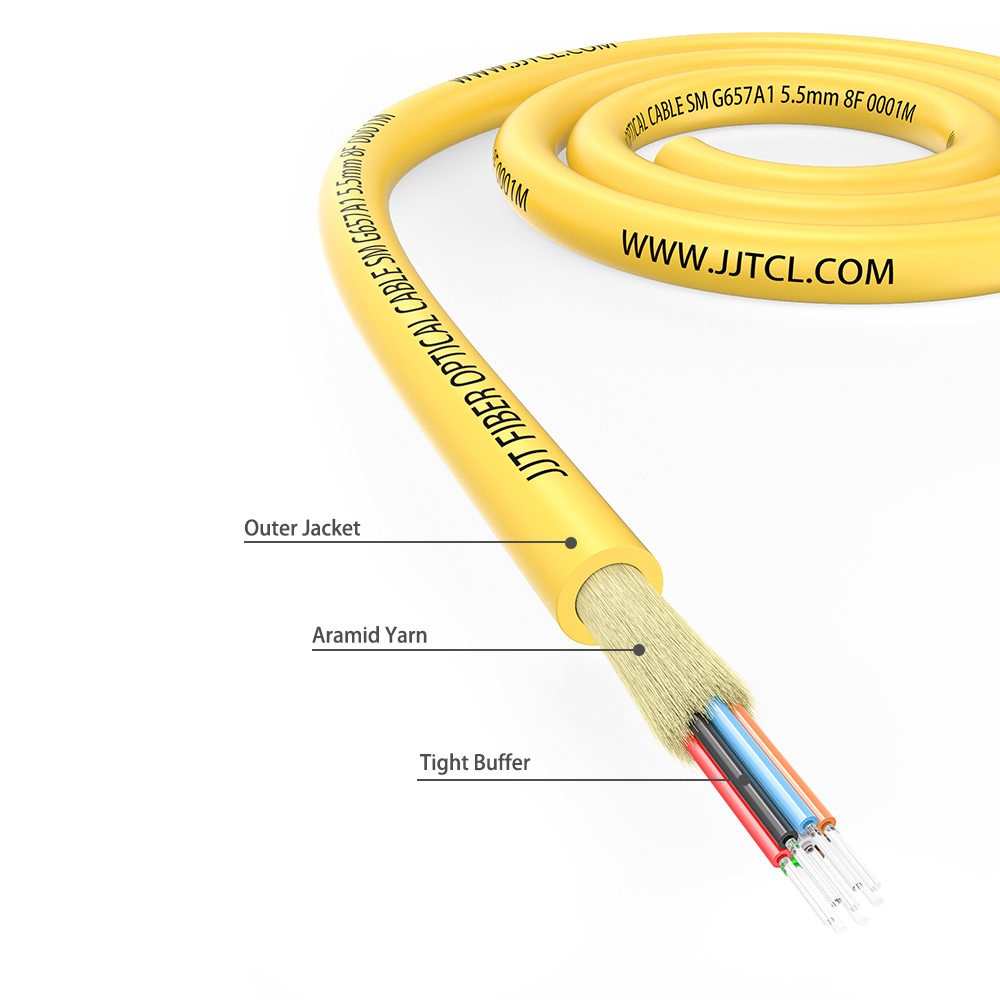

5.8mm 8-fiber Indoor Fiber Optical Cable
Description:
|
1 –Fiber count - 8
2 – Fiber characteristic - Color: original - OD: 242±7 um
3 – Characteristic of tight buffered - OD: 0.87±0.05mm - Thickness of buffered jacket: 0.31±0.02 mm
4 – Kevlar for round strength
5 – Out jacket - OD: 5.8±0.20mm - Material: PVC |
Other Demanding:
|
1 – Appearance - Slickness, without color difference, bumps and color transparent.
2 – Package - Wooden drum.
3 – Length per drum - More than 1000M per drum, nearly the same length per drum, other length upon customer demanding.
4 – Test report - Attached with the OTDR testing report,label with the style of fiber and the OD of out jacket. |
Fiber characteristic :

Application:
