| Model No. | Gel-Filled Drop Cable |
|---|---|
| Brand Name | OEM |
| place of origin | China |
| Number of cores | 1 |
| Cable Jacket | PE |
| Fiber Count | 1F |
| Fiber Type | G652D/G657A |
| Cable size (Height * width) | 7.0 mm x 4.0 mm |
| Cable weight | 30KG±1KG |

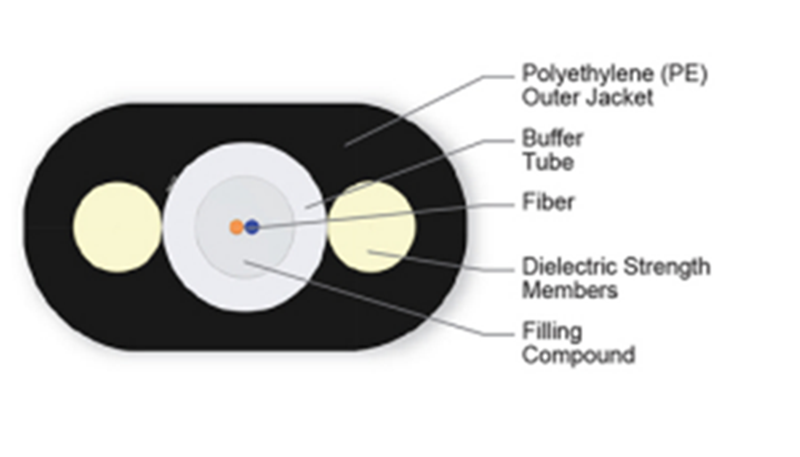

Product description
Flat drop cable offers compact, durable, and easy to locate optical fiber solution in a really accessible construction. The fiber optic cable's webbed design allows the locating wire to be easily separated from the main cable sheath by hands, providing simple, rapid routing and grounding of the locating wire.
Features and Benefits
Flexible, craft-friendly buffer tubes
Facilitate easy routing in closures
SZ-stranded, loose tube design
Isolates fibers from installation and environmental rigors
and facilitates mid-span access
Dielectric central strength member
No preferential bend and requires no bonding or grounding
Polyethylene jacket
Rugged, durable and easy to strip (while providing superior
protection against UV radiation, fungus, abrasion and other
environmental factors)
Data sheet
|
Fiber Count |
1 |
|
Buffer Tube Color Coding |
Natural |
|
Outer Jacket Color |
Black |
|
Outer Jacket Material |
Polyethylene (PE) |
|
Tensile Strength Elements and/or Armoring - Layer 1 |
Dielectric strength members |
|
Buffer Tube Diameter |
2.3 mm |
|
Fiber Coloring |
Blue |
| Nominal Outer Diameter | 7.0 mm x 4.0 mm |
| Max. Tensile Strength, Long-Term | 400 N |
| Max. Tensile Strength, Short-Term | 1350 N |
| Environment |
Outdoor |
| Cable Type | Drop |
|
Product Type |
Self-Supporting |
|
Fiber Category |
Single-mode (G657A2) |
1F Single-Tube Gel-Filled Drop Cable Single-mode (G657A2)
