| Brand Name | OEM |
|---|---|
| place of origin | China |
| Number of cores | 1 |
| Cable Jacket | LSZH |
| Fiber Count | 1F |
| Fiber Type | G652D/G657A |
| Strength Member | Steel Wire/FRP |
| Cable size (Height * width) | 2.0(±0.1) mm × 5.0(±0.2)mm |
| Cable weight | 22KG±1KG |
| Messenger sheath thickness | 0.5mm |
Product description
FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the centre. Two parallel strength member are placed at the two sides. The cable is completed with a black LSZH sheath.
Application
1.Adopted to outdoor level and vertical distribution.
2.Suitable for connect with communication equipment.
3.Long distance and local area network communication.
Characteristics
1. Good mechanical and environmental characteristic
2. Anti-UV characteristics meet the requirements of relevant standards
3. The mechanical characteristics meet the requirements of relevant standards
4. Soft ,flexible ,easy to lay and splice,and with big capacity data transmission
5. Meet various requirements of market and clients
Cable construction details
| Items | Description | |
| Number of fiber | 1cores/2cores | |
| Fiber type | G652D/G657A | |
| Strength member | material |
Non-Metallic Fiber reinforced plastic(FRP) |
| diameter |
2*0.5mm |
|
| Outer sheath | material | LSZH |
| diameter | 1.8±0.2mm | |
| Cable size (Height * width) | 2.0(±0.1) mm × 5.0(±0.2)mm | |
| Cable weight | 22KG±1KG | |

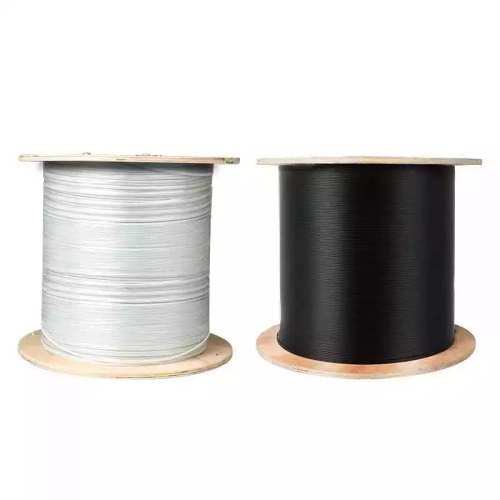

Self Supporting Outdoor 1core FTTH Drop Cable
