Basic Info
| Model No. | 24F MPO-LC Cassette Module |
| Brand Name | OEM |
| place of origin | China |
| Number of cores | ≥ 10 |
| Color | Black |
| Size | 482x360x44.3mm |
| Max capacity | 96F |
| Weight | 3.5kg |
| Material | cold roll steel |
| Cassette | ABS+PC plastic |
| Cassette Size | 123.41*97.49*32.8mm |
| MTP/MPO cassette Capacity | can load 12pcs LC duplex adapters & 1 or 2pcs MTP/MPO adapter, max. 24fibers. |
Product description

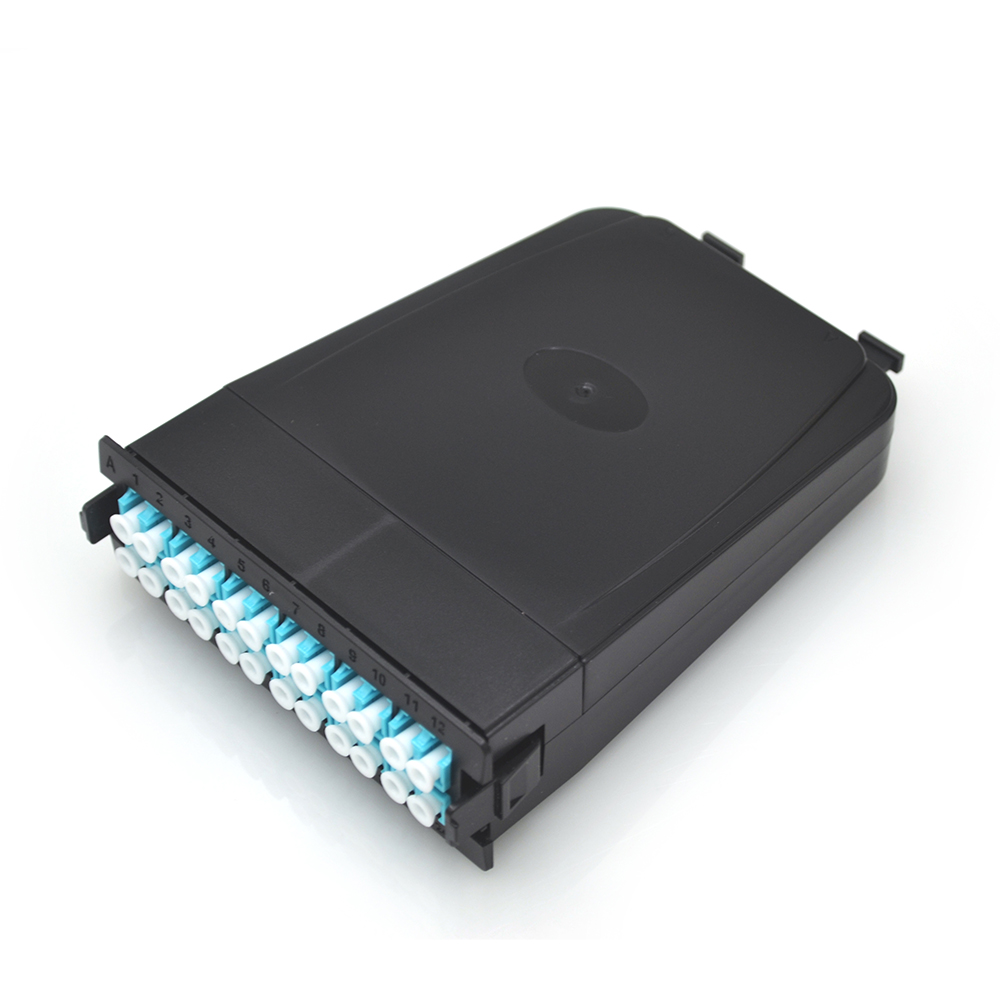

24F MPO-LC Plastic Cassette Module for MPO Patch panel.This type cassettes with plastic body,Each MTP/MPO cassette can load 12pcs LC duplex adapters & 1 or 2pcs MTP/MPO adapter, max. 24fibers.Mostly used in the 1U to 4U frames for the data center cabling.
This high capacity fiber optic distribution frame support fiber cable fast connection and distribution. It load MTP/MPO and ribbon fiber cable inside, easy to use by connector plug. It is an ideal equipment for supporting the fiber distribution in high-density capacity data center. It has simple & fast installation, compact design, high precision, plug and play etc. advantages.
Features
Patch panel is made of cold roll steel, electrostatic powder spraying.
cassette is made of ABS+PC plastic (Size:123.41*97.49*32.8mm).
Fixed type, the rear without cover, convenient for observation and maintenance.
It is simple and light,convenient for air shipment.

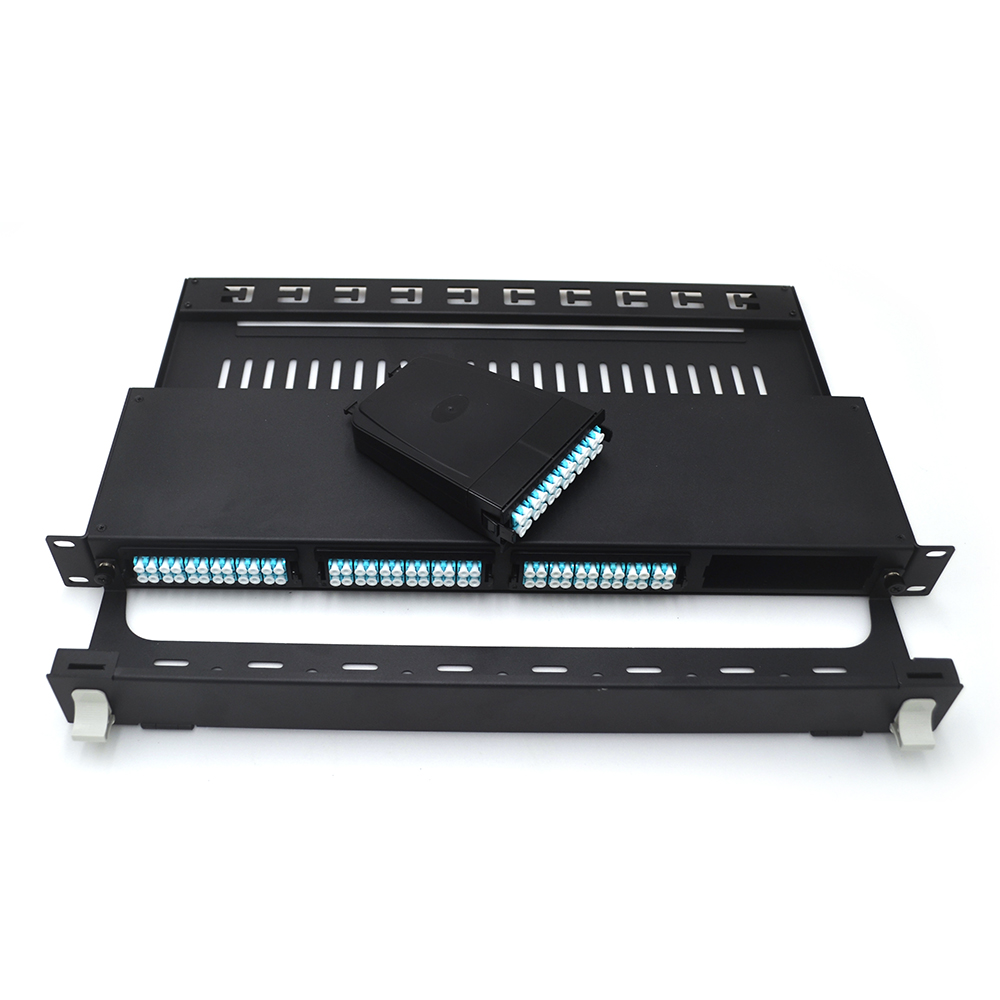

Load max. 4pcs MTP/MPO cassettes.
Each MTP/MPO cassette can load 12pcs LC duplex adapters & 1 or 2pcs MTP/MPO adapter, max. 24fibers.
Application
-Data Center infrastructure;
-Optical system access network;
-Storage area networking fiber channel;
-High density architectures.

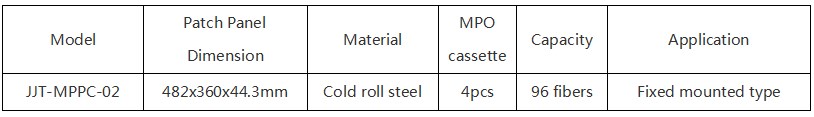

Specification
24F MPO-LC Cassette Module for MPO Patch panel
