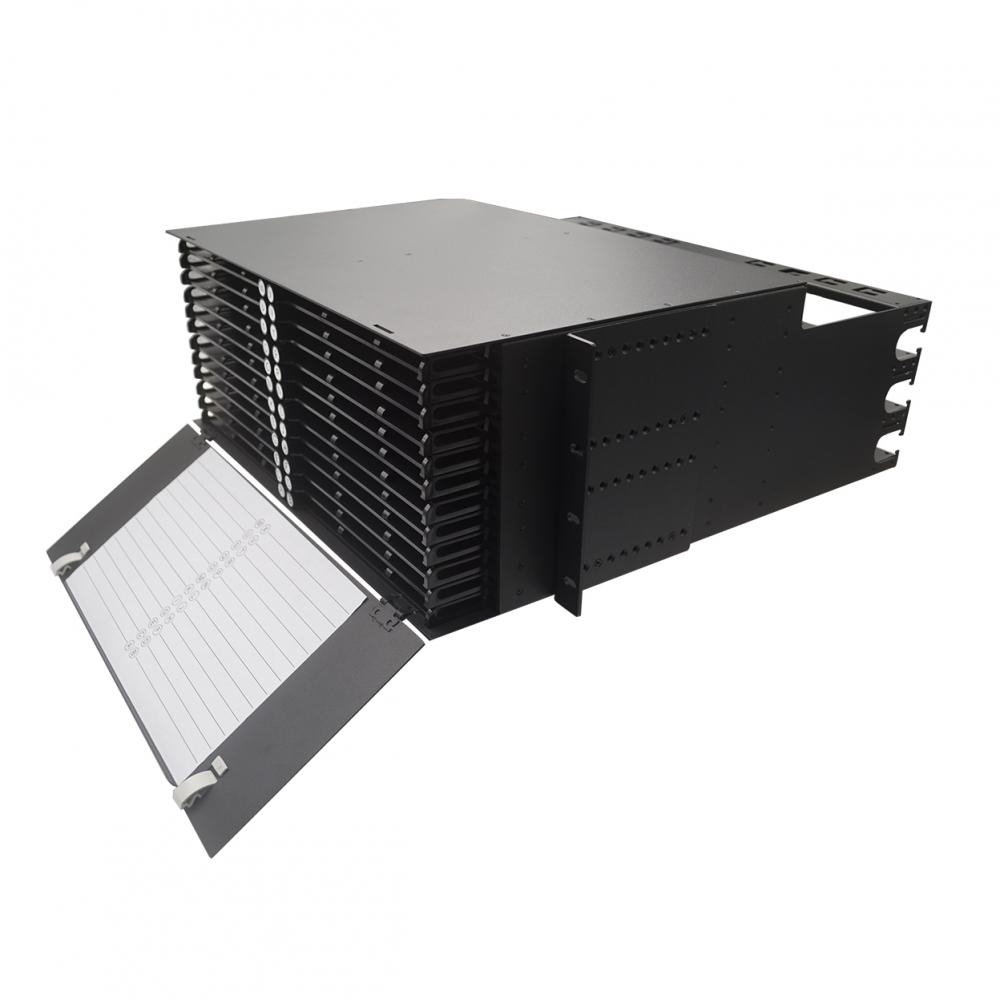

Basic Info
| Model No. | 4U MPO Patch Panel for HD Cabling |
|---|---|
| Brand Name | OEM |
| Dimension | 435x470x176mm |
| Weight(contain cassette) | 11.2kgs |
| Packing box | 539x336x226mm |
| Capacity | MDC 1152F /LC 576 F/ SC 288F |
| Operating Temperature | -20℃～+60℃ |
| Applications | MPO HD solutions/PLC splitters/Splicing Connection |
| Patch cord Category | MPO/MTP-MDC/LC/SC Fan out or MDC/LC/SC trunk patch cord |
| Product Name | 2U ODF |
| Cassette QTY | 24 pcs |
Product description
JJT high density unique design patch panel,with maximum LC connecting & cabling, adopt the high-strength environmental light weight material and superior surface treatment technique, which make the panel achieved complete function and various flexible cabling solution.
Features
Composition：
• Aluminum or cold rolled steel patch panel
• Plug-in cassette module with self-lock institutes
• Fibre adapter
• MPO/MTP and MDC trunk cable
• MPO-LC/MDC fan out or LC/SC/MDC trunk patch cord
Features
Super Density Cabling
• 1U/288F MDC / 144F LC / 72F SC
• 2U/576F MDC / 288F LC / 144F SC
• 4U/1152F MDC / 576F LC / 288F SC
Easy Operation
• Standard 19”Patch Panel
• Environmental light weight
Aluminum material
• Independent plug-in cassette

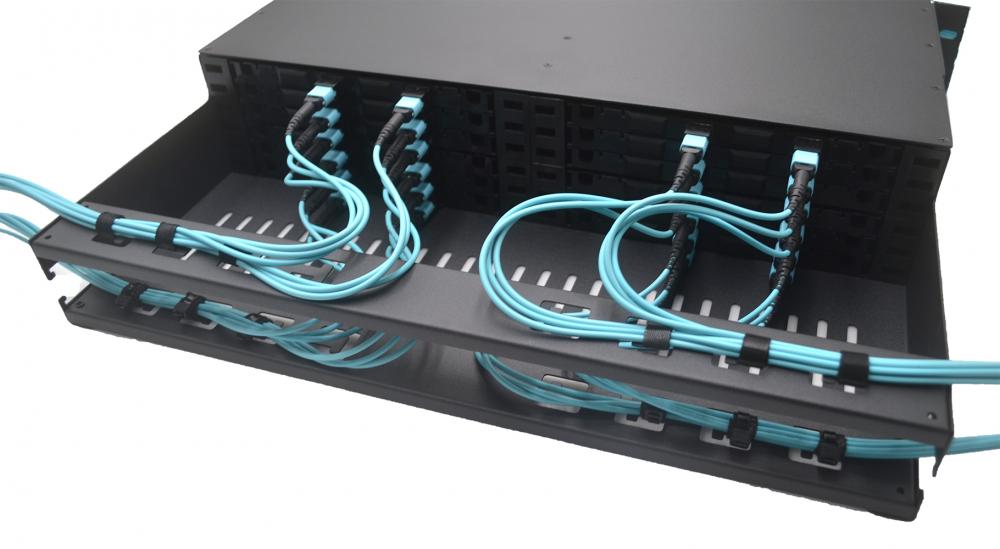

• Front-end cable management
• Stable adapter structure
Various Flexible Cabling
• Compatible with 8F&12F solution
• Replaceable label and layer remark
• Duplex and Quad adapter available
• Various connectors are optional
• MPO-LC fan out and LC/SC trunk cable
• Multi-applications in Data centre and FTTX
Specification
| Item |
1U ODF |
2U ODF |
4U ODF |
|
Dimension |
435x470x44mm |
435x470x88mm |
435x470x176mm |
|
Weight（contain cassette） |
3.7 kgs |
6.4 kgs |
11.2kgs |
|
Packing box |
539x366x94mm |
539x366x139mm |
539x336x226mm |
|
Cassette QTY |
6 pcs |
12 pcs |
24 pcs |
|
Capacity |
MDC 288F /LC 144 F/ SC 72 F |
MDC 576F /LC 288 F/ SC 144F |
MDC 1152F /LC 576 F/ SC 288F |
|
Operating Temperature |
-20℃～+60℃ | ||
|
Applications |
MPO HD solutions/PLC splitters/Splicing Connection | ||
|
Patch cord Category |
MPO/MTP-MDC/LC/SC Fan out or MDC/LC/SC trunk patch cord | ||

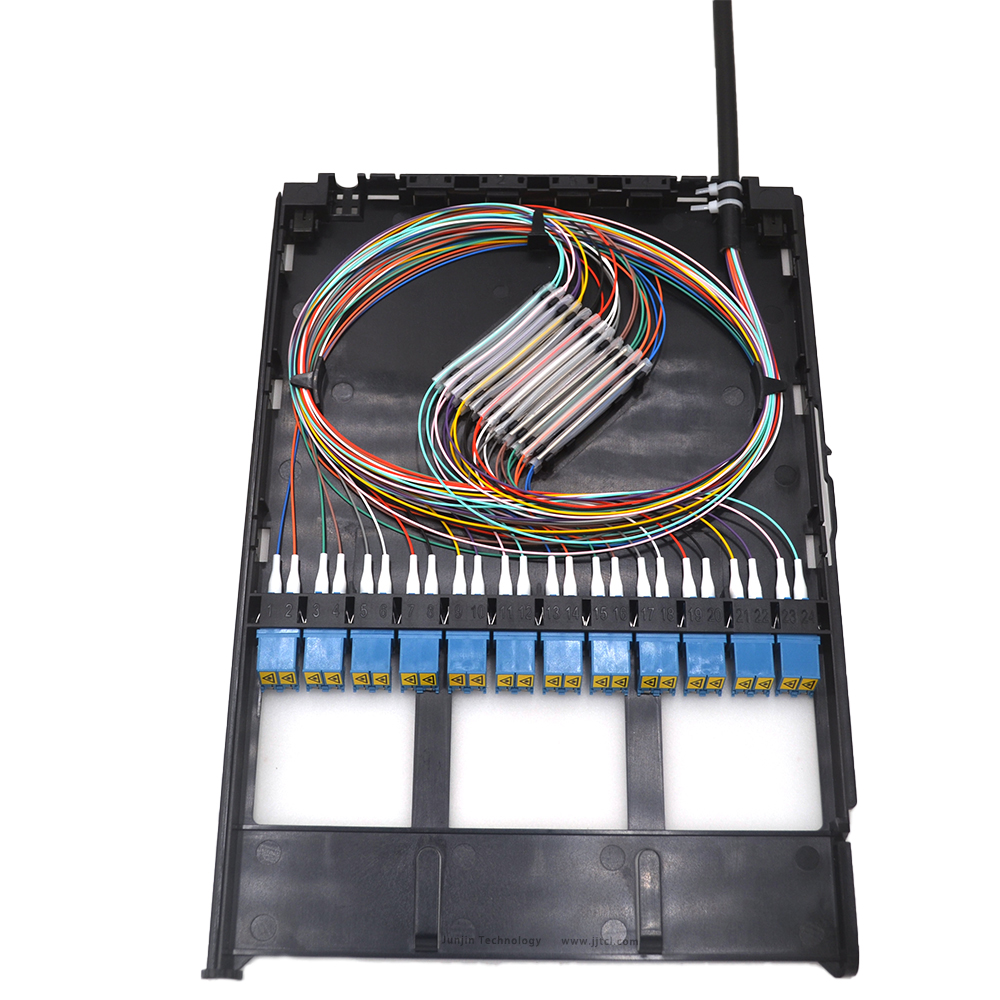

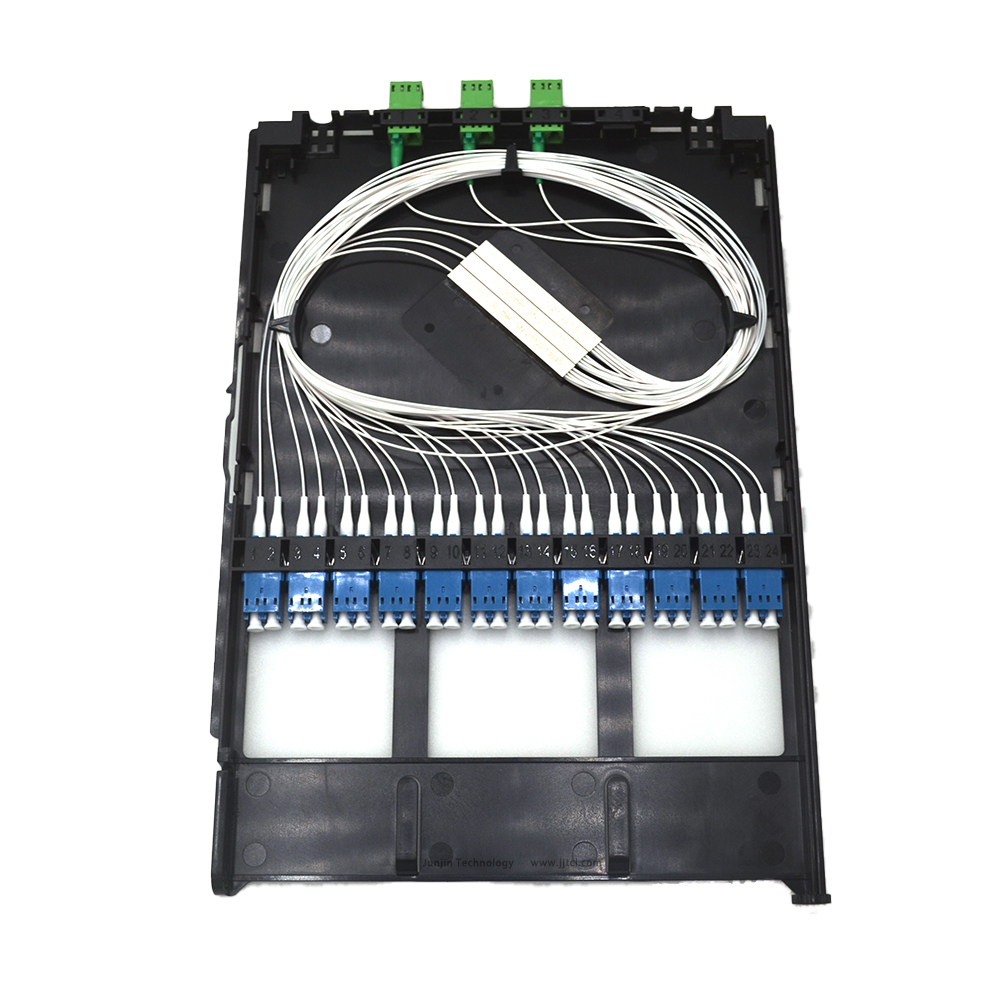

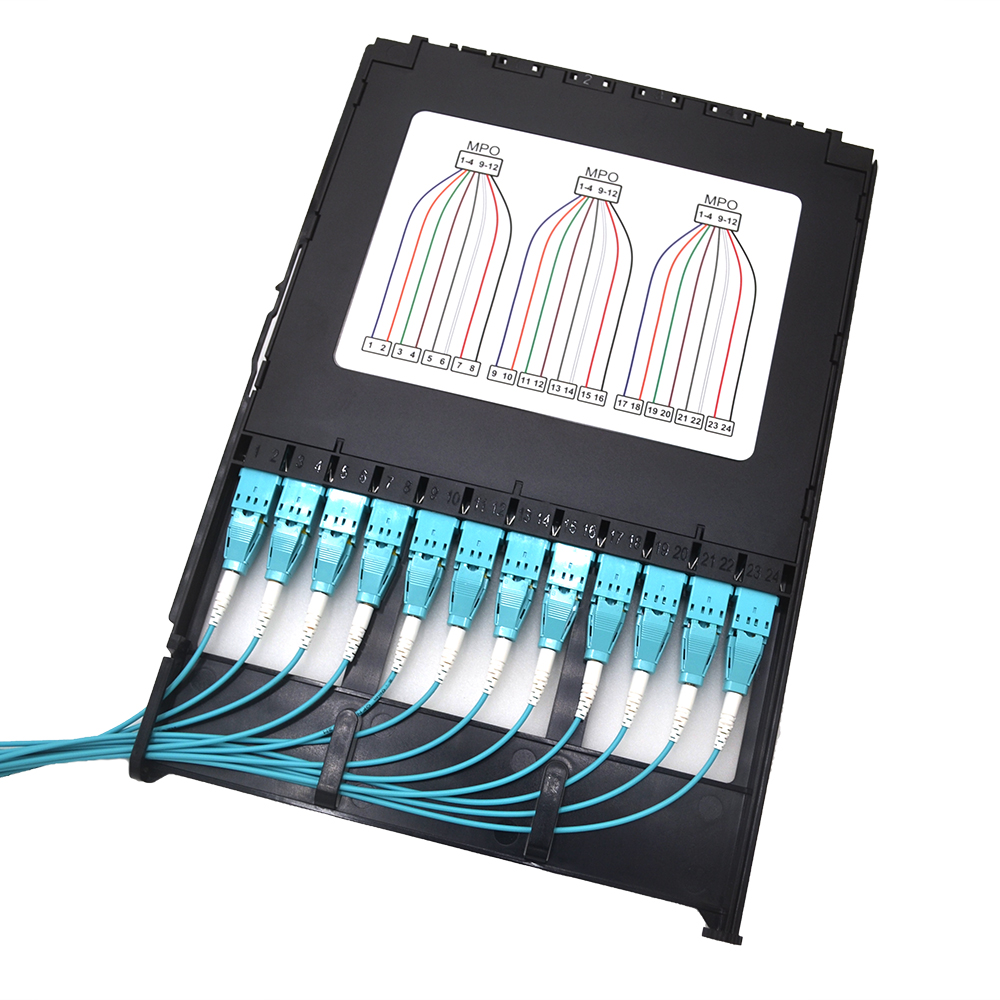

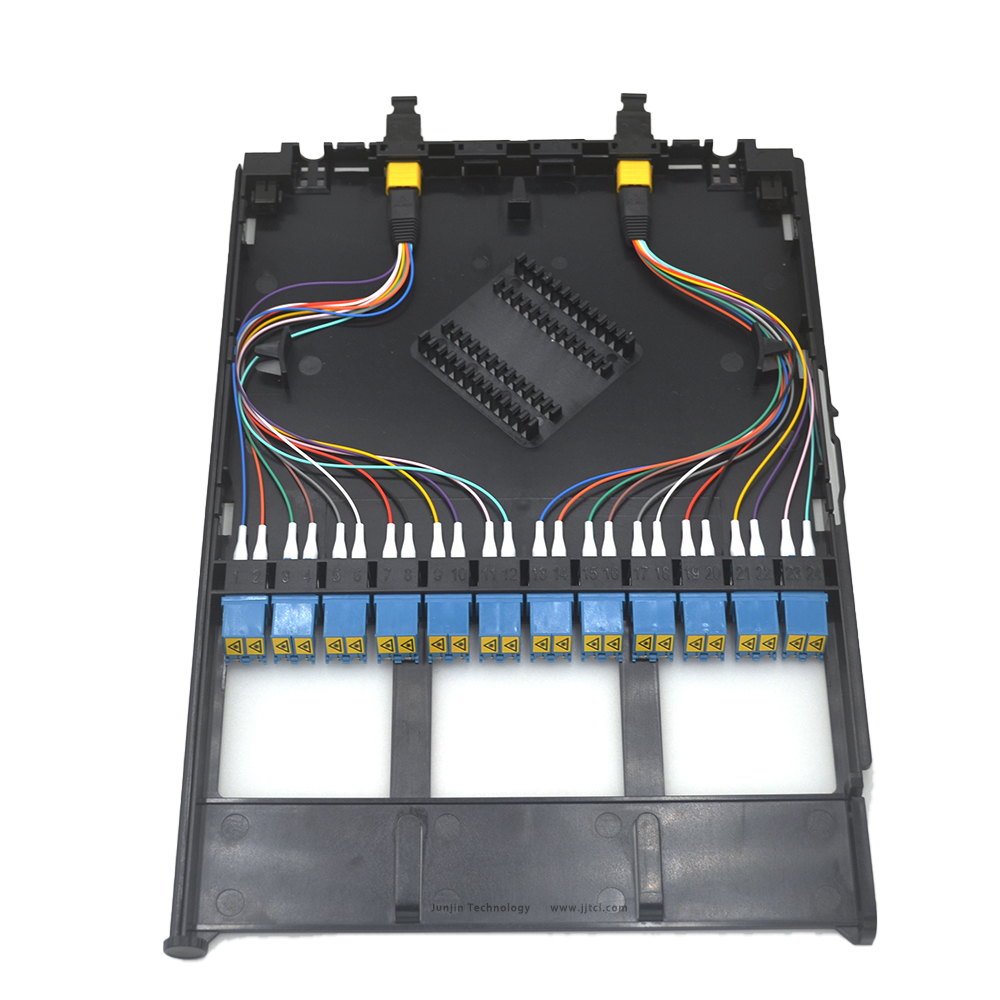

Cassette Module
