Basic Info

Model No.	MPO PATCH PANEL
Brand Name	OEM
Product Name	1U ODF
Dimension	435x470x44mm
Weight(contain cassette)	3.7 kgs
Packing box	539x366x94mm
Cassette QTY	6 pcs
Capacity	MDC 288F /LC 144 F/ SC 72 F
Operating Temperature	-20℃～+60℃

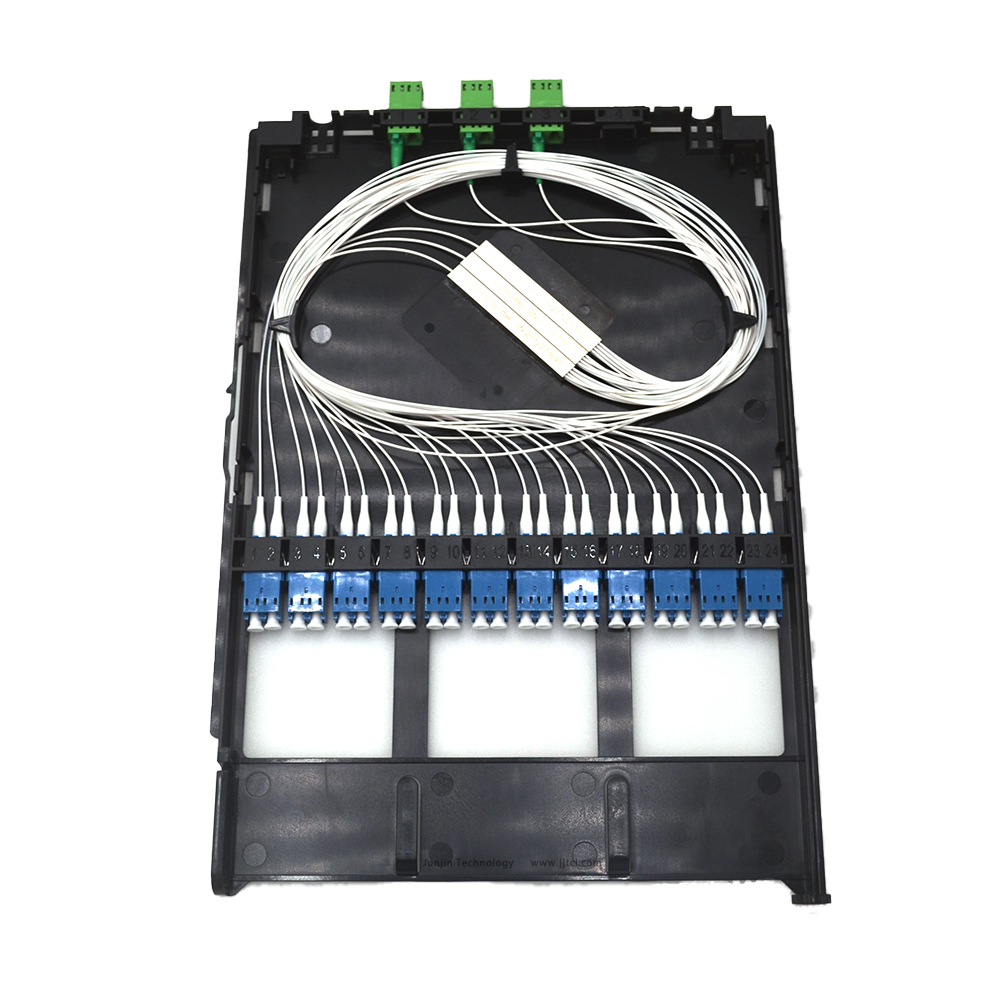

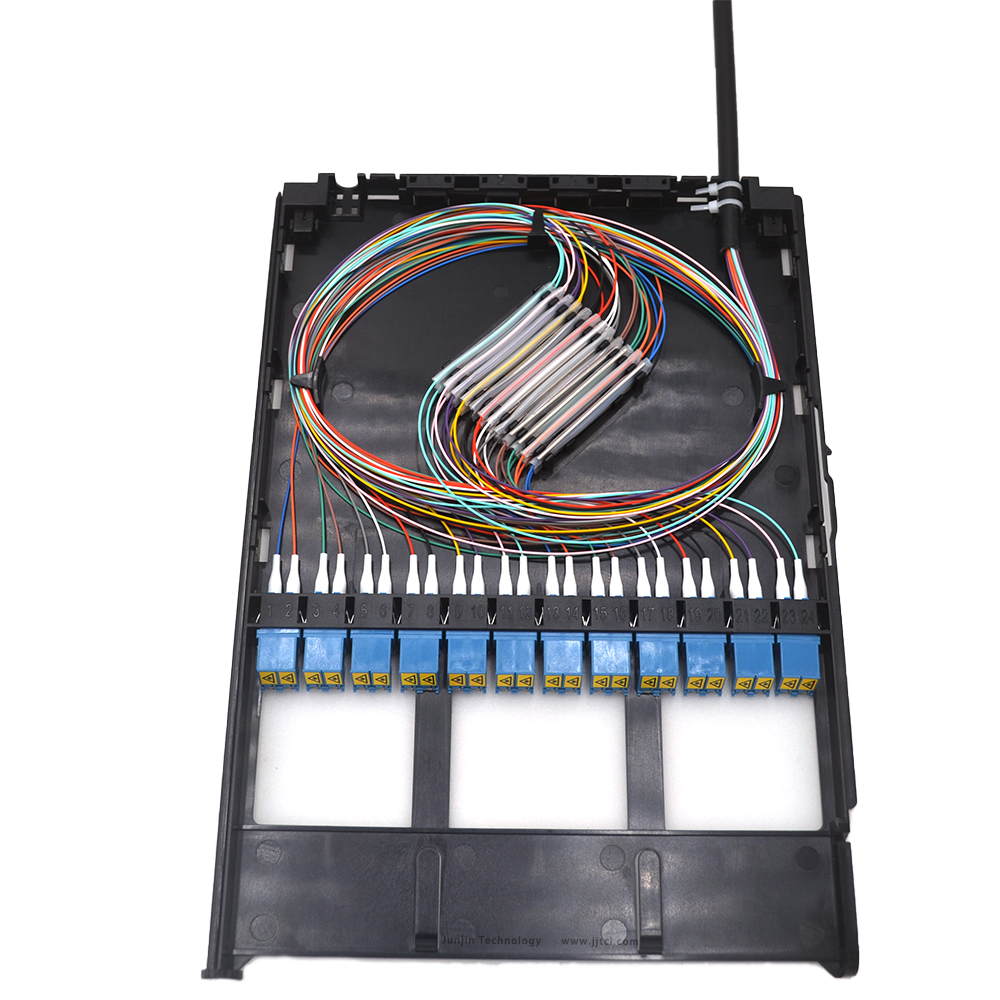

Applications	MPO HD solutions/PLC splitters/Splicing Connection
Patch cord Category	MPO/MTP-MDC/LC/SC Fan out or MDC/LC/SC trunk patch cord

Product description

JJT high density unique design patch panel,with maximum LC connecting & cabling, adopt the high-strength environmental light weight material and superior surface treatment technique, which make the panel achieved complete function and various flexible cabling solution.

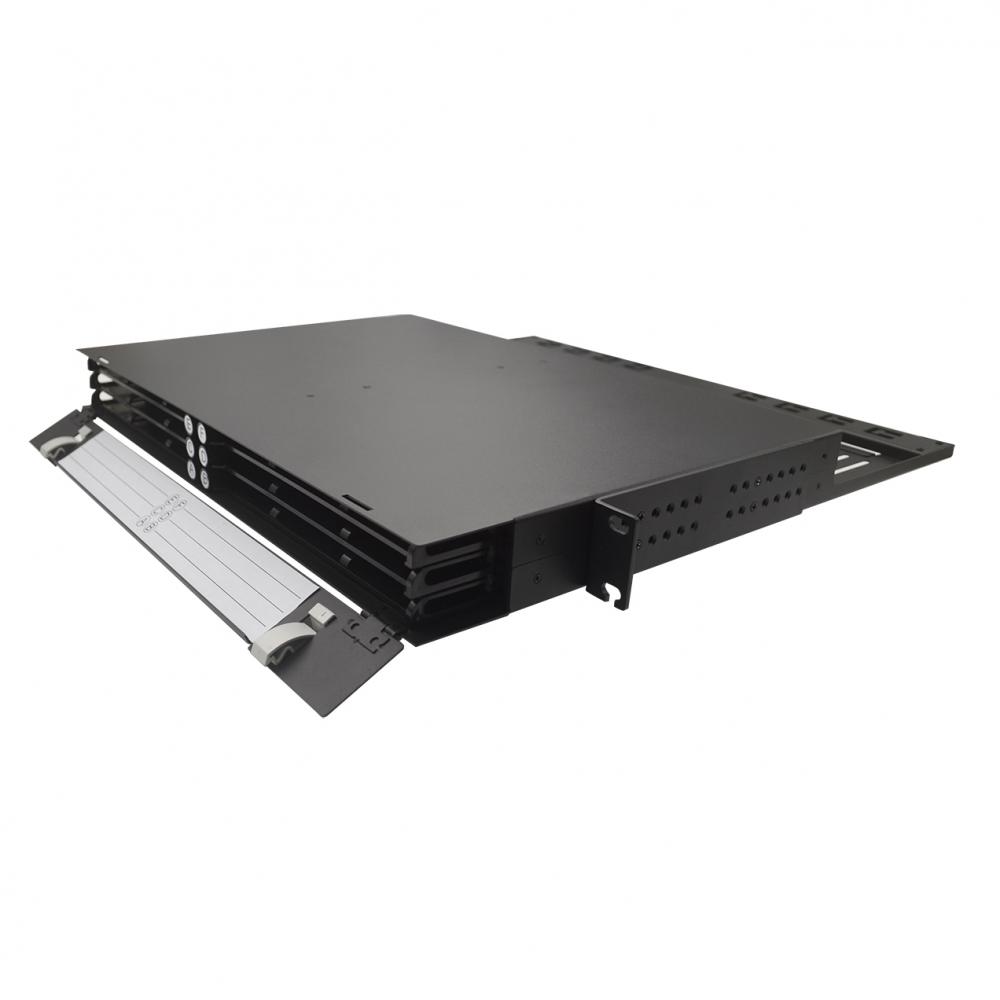

1u Odf Jpg

Composition：

• Aluminum or cold rolled steel patch panel

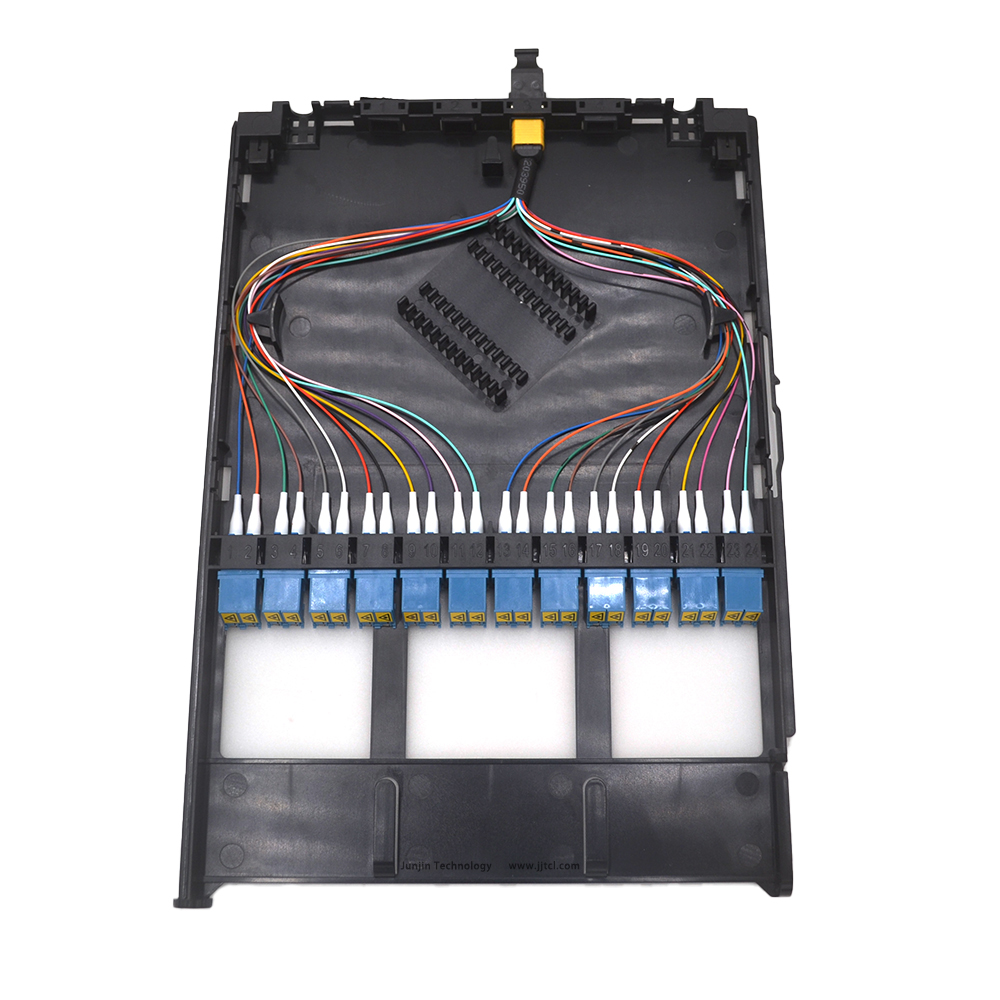

• Plug-in cassette module with self-lock institutes

• Fibre adapter

• MPO/MTP and MDC trunk cable

• MPO-LC/MDC fan out or LC/SC/MDC trunk patch cord

Features

Super Density Cabling

• 1U/288F MDC / 144F LC / 72F SC

• 2U/576F MDC / 288F LC / 144F SC

• 4U/1152F MDC / 576F LC / 288F SC

Easy Operation

• Standard 19”Patch Panel

• Environmental light weight Aluminum material

• Independent plug-in cassette

• Front-end cable management

• Stable adapter structure

Various Flexible Cabling

• Compatible with 8F&12F solution

• Replaceable label and layer remark

• Duplex and Quad adapter available

• Various connectors are optional

• MPO-LC fan out and LC/SC trunk cable

• Multi-applications in Data centre and FTTX

Specification

Item	1U ODF	2U ODF	4U ODF
Dimension	435x470x44mm	435x470x88mm	435x470x176mm
Weight（contain cassette）	3.7 kgs	6.4 kgs	11.2kgs
Packing box	539x366x94mm	539x366x139mm	539x336x226mm
Cassette QTY	6 pcs	12 pcs	24 pcs
Capacity	MDC 288F /LC 144 F/ SC 72 F	MDC 576F /LC 288 F/ SC 144F	MDC 1152F /LC 576 F/ SC 288F
Operating Temperature	-20℃～+60℃
Applications	MPO HD solutions/PLC splitters/Splicing Connection
Patch cord Category	MPO/MTP-MDC/LC/SC Fan out or MDC/LC/SC trunk patch cord
