Basic Info
| Model No. | JJT-MPPC-03 |
| Brand Name | OEM |
| place of origin | China |
| Number of cores | ≥ 10 |
| Color | Black |
| Size | 482x380x132mm |
| Max capacity | 288F |
| Weight | 5kg |
| Material | cold roll steel |
Product description

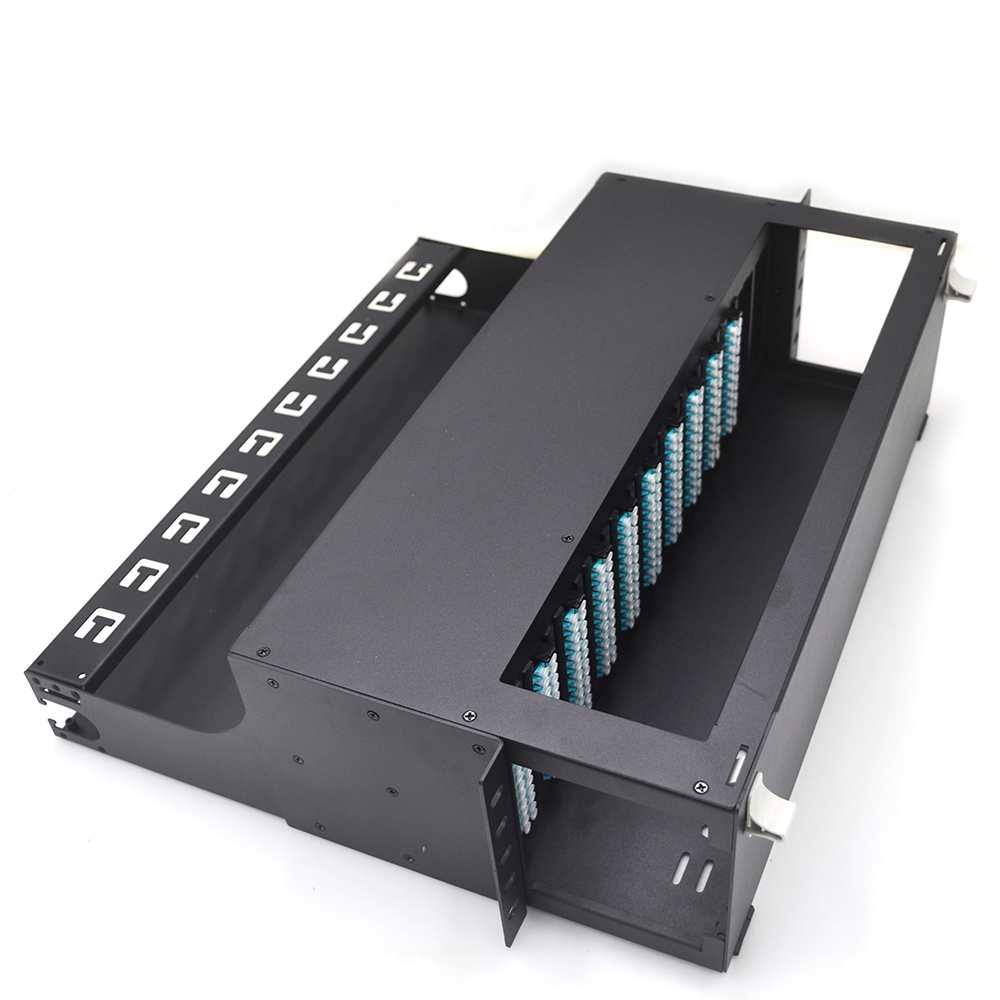

288F MPO Patch panel(JJT-MPPC-03)
Made in cold roll steel,This high capacity fiber optic distribution frame support fiber cable fast connection and distribution.Which could installing 12pcs MPO-LC cassette module,each module max capacity 24F.This Frame max capacity 288F.
It load MTP/MPO and ribbon fiber cable inside, easy to use by connector plug. It is an ideal equipment for supporting the fiber distribution in high-density capacity data center. It has simple & fast installation, compact design, high precision, plug and play etc. advantages.
Features
Patch panel is made of cold roll steel, electrostatic powder spraying.
cassette is made of ABS+PC plastic (Size:123.41*97.49*32.8mm).
Fixed type, the rear without cover, convenient for observation and maintenance.
It is simple and light,convenient for air shipment.
Load max. 12pcs MTP/MPO cassettes.
Each MTP/MPO cassette can load 12pcs LC duplex adapters & 1 or 2pcs MTP/MPO adapter, max. 24fibers.
Application
-Data Center infrastructure;
-Optical system access network;
-Storage area networking fiber channel;
-High density architectures.
Specification
288F MPO Patch Panel For Data Center
