Basic Info
| Model No. | 1U 144core Patch Panel |
| Brand Name | OEM |
| place of origin | China |
| Number of cores | ≥ 10 |
| Size | 1U |
| Max capacity | 144F |
| Color | Black |
| Weight | 6.8kg |
| Material | SPCC, 1.2mm Black（RAL9005) |
Product description

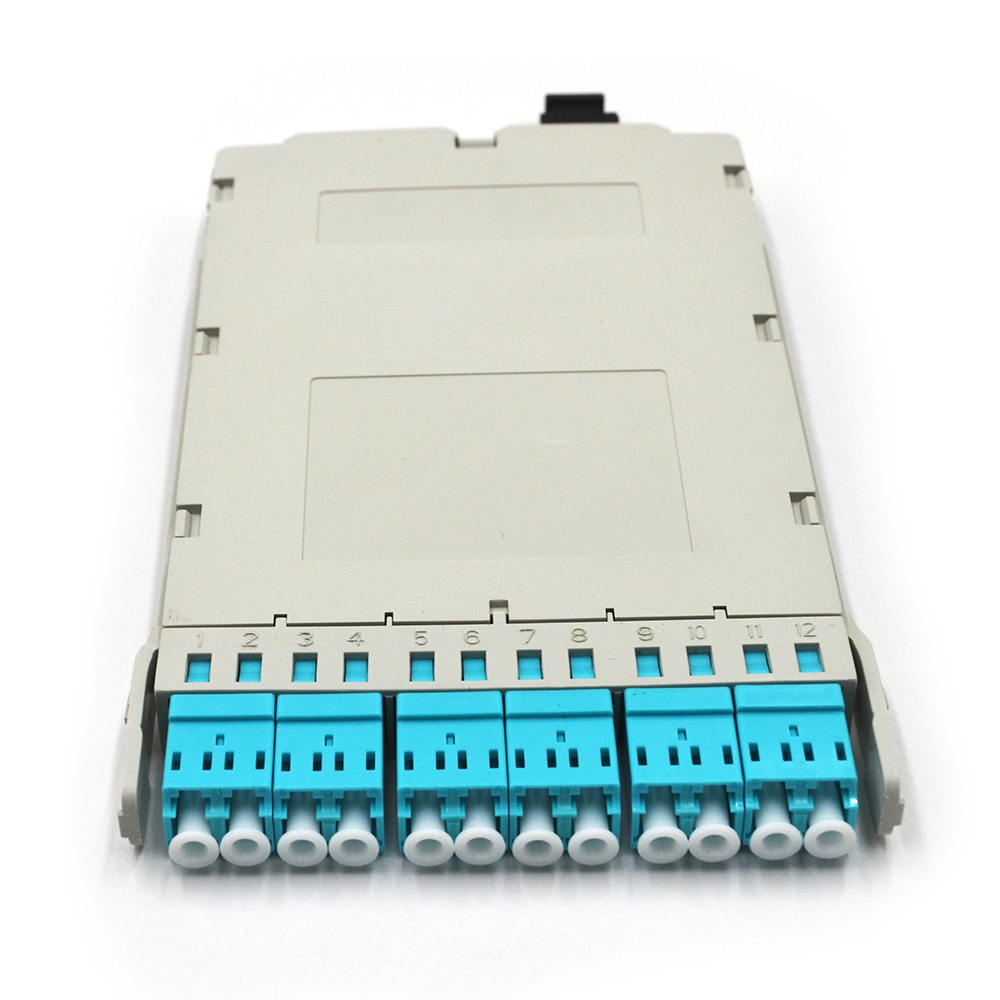

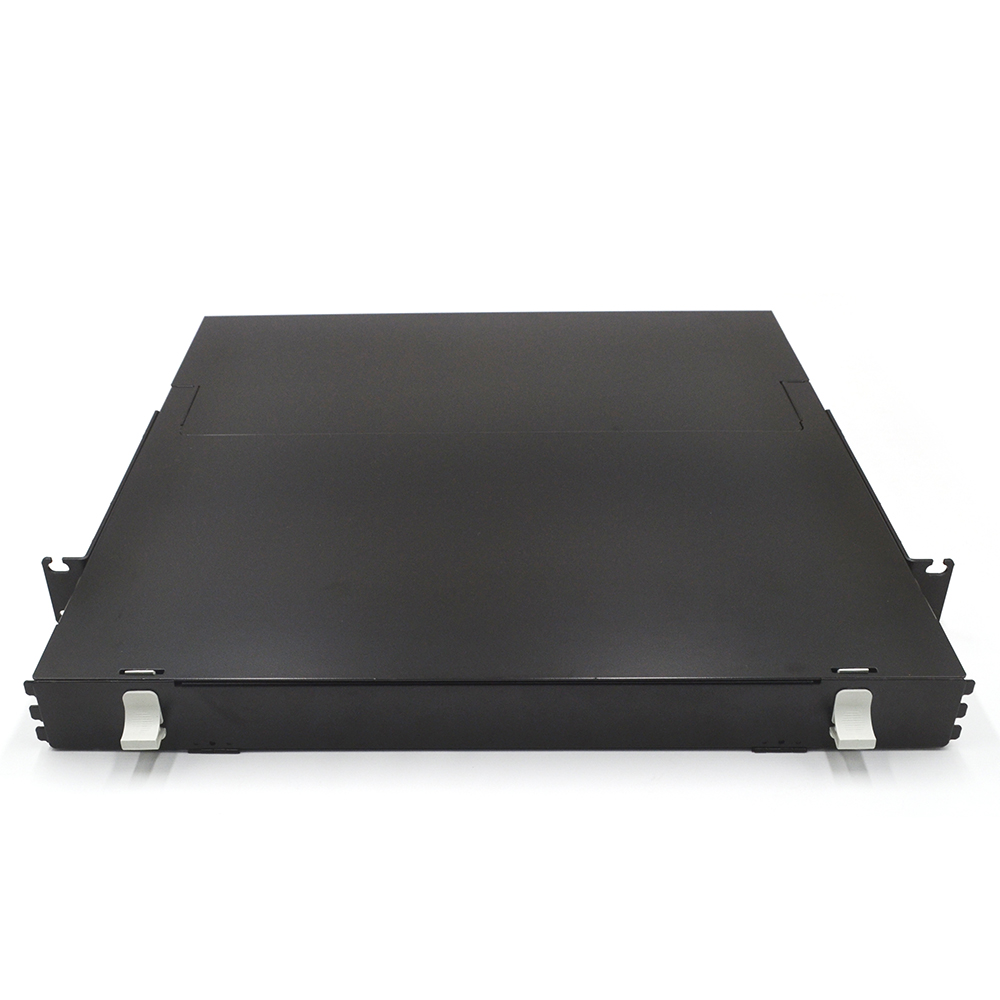

1U 144core high density patch panel.This type high density patch panel max capacity 144F for data center application.Which has three slidable layer,each layer installing 4pcs 12F MPO-LC cassette module.Total 144F.
MPO/MTP cassette module possess optical fiber branching patch cords inside to split the 12-core MPO / MTP connector into simplex or duplex LC connector. Simplex or duplex connectors are placed infront of the modules, and one or two MPO/ MTP connectors are placed at the back of the modules.
The branching patch cord connect the front LC and the near MPO/MTP connectors. This type modules can be easily installed in 1U and 4U Chassis.
APPLICATIONS
1.Data center infrastructure
2.High Density Fiber Management
3.Building telecommunication cabling system
4.LAN, WAN, CATV and metro Test equipment
DATA SHEET
| Item No. | Item Name | Specification |
| 1 |
High density fiber optic patch panel 1U-144 cores |
1, Width: 482.6mm |
| 2, Depth: 464.9mm | ||
| 3, 1U Height: 44.2mm | ||
| 4, Material: SPCC, 1.2mm Black（RAL9005) | ||
| 5, Weight:6.8kg | ||
| 2 |
High density fiber optic cassette module 12 core LC, OS2/OM3/OM4 |
1, Width*Depth*Height: 88*144*12mm |
| 2, Material: PC+ABS V0 grade | ||
| 3, Color: Light grey | ||
| 4, LC adapter: 6pcs installed, V0 grade, IL≤0.2dB. Color option: OS2 Blue/OM3 Aqua/OM4 Pink | ||
| 5, MPO adapter: 1pcs installed, V0 grade, black | ||
| 6, MPO/LC patch cord: 1pcs, low loss |
FEATURES AND BENEFITS
Factory pre-termination, 100% tested to ensure the transmission performance
Modular design, easy for expansion
Reasonable of optical fiber cable route
Minimize structure and ensure fiber bending radius not less than 30mm
Rapid configuration, reduce installation time
Rapid upgrading, support parallel transmission
COMPLIED STANDARDS
Comply with TIA/EIA 604-5, IEC 61754 series standards.
High Density 1U 144F MPO-LC Patch Panel
