Basic Info
| Model No. | MPO-LC 12F OM1 Pink 2.0mm Hybrid |
| Brand Name | OEM |
| place of origin | China |
| Number of cores | ≥ 10 |
| Wavelength | 1300/850nm |
| MPO Connector Brand | US Conec,Hankusan,Nissin |
| LC Connector IL | ≤0.2dB |
| MPO Connector IL | 0.35dB Max (0.20dB Typical) |
| Fiber Count | 12F |
| Fiber Type | MM OM1 |
| Fanout Length | 0.5m |
| Connector | 12F MPO(Beige),LCUPC(Beige) |
| Cable Jacket | LSZH |
| Jacket OD | 4.5mm double sheath |
Product description

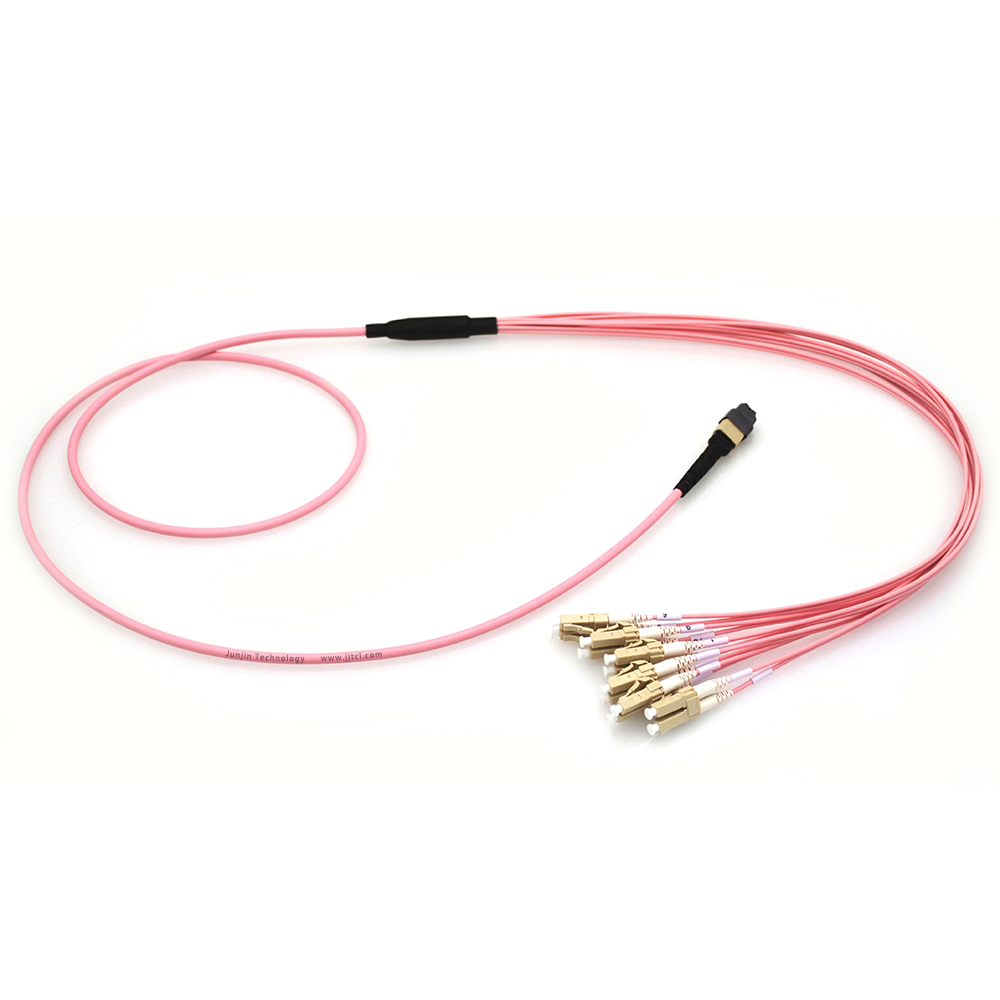

MPO-LC 12F 4.5mm double sheath Hybrid Cable.Female MPO/MTP Us Conec to 6LC duplex.With double sheath jackets,makes cable more stronger.It used a lot in data center and High-Density Fiber Management.
MPO-LC hybrid cable are dedicated for direct connection between MPO trunk cables and equipment with SFP+ ports via an MPO adapter.Available in polarity A, B or C, these MPO-LC harness cables as well enable connection to SFP+ ports in adjacent racks.
MPO-LC hybrid cables are compatible with all other MPO module cassette-based systems without any loss of optical performance.
MPO-LC hybrid cable is typically constructed with a mini cable that features by small diameter, low weight, and low bend radius. In a typical scenario, it’s used to make connections within the same rack or go-between adjacent racks via overhead cabling trays, slots or open ducting systems.
Application
● Data Center Interconnect
● High-Density Fiber Management
● Telecommunication Networks and CATV networks
● LAN/WAN Premises
Complied Standards
Comply with IEC 61754-7,TIA/EIA 604-5, Telcodia GR-1435-CORE Issue 2 standards.
Fire resistance comply with low smoking (IEC 61034), halogen free (IEC 60754-1), flame retardant (IEC 60332-1-2), and corrosion proof (IEC 60754-2)
General Specification
|
Connector A |
MTP/MPO Female |
Connector B |
LC Duplex |
|
Fiber Mode |
OM1 |
Wavelength |
1300/850nm |
|
MPO Connector Low loss IL |
≤0.35dB Max (0.20dB Typical) |
MPO Connector Standard loss IL |
≤0.7dB Max(0.40dB Typical) |
|
MPO Connector RL |
≥30dB |
LC Connector IL |
≤0.2dB |
|
MPO Connector Brand |
US Conec,Hankusan,Nissin |
LC Connector RL |
≥30dB |
|
MPO Housing Color |
Beige |
LC Connector Housing Color |
Beige |
|
Cable Jacket |
OFNR/OFNP/LSZH |
Fiber Count |
12 Fibers |
|
Jacket OD |
4.5mm double sheath |
Fan-Out Diameter |
2.0mm (simplex or duplex) |
|
Jacket Color |
Pink |
Polarity |
A,B,C or Customized |
|
Installation Tensile Load |
66N |
Tensile Strength (Long/Short Term) |
80/240N |
|
Storage Temperature |
-40 to +85°C |
Operating Temperature |
-20 to +70°C |
MPO-LC 12F 4.5mm double sheath Hybrid Cable
