Basic Info
| place of origin | China |
| Number of cores | ≥ 10 |
| Connector B | MTP/MPO |
| MPO Connector Low loss IL | ≤0.35dB Max (0.20dB Typical) |
| MPO Connector RL | ≥30dB |
| MPO Connector Brand | US Conec,Hankusan,Nissin |
| Cable Jacket | OFNR/OFNP/LSZH |
| Connector A | MTP/MPO |
| MPO Housing Color | Lime |
| Jacket Color | Lime |
| Fiber Mode | OM5 50/125μm |
| Wavelength | 1300/850nm |
Product description
MPO-MPO 12/24F OM4 Trunk Cable
MTP/MPO trunk cabling connects MTP/MPO modules together as a permanent link. They facilitate rapid deployment of high-density backbone cabling in data centers and other high-density fiber environments, reducing network installation or reconfiguration time and cost. Its efficient plug-and-play structure greatly reduces the initial installation and routine maintenance costs. Pre-terminated trunk cables can also be used with plug-and-play modules or MTP/MPO connector panels to achieve multi-level connection. Pre-terminated trunk cable can also be extended by MTP/MPO panel with the plug-and-play module. They are used to interconnect module cassettes, panels or ruggedized MTP/MPO fanouts, spanning MDA, HDA and EDA zones.
Application
● Data Center Interconnect
● High-Density Fiber Management
● Telecommunication Networks and CATV networks
● LAN/WAN Premises
Complied Standards
Comply with IEC 61754-7， TIA/EIA 604-5, Telcodia GR-1435-CORE Issue 2 standards.
Fire resistance comply with low smoking (IEC 61034), halogen free (IEC 60754-1), flame retardant (IEC 60332-1-2), and corrosion proof (IEC 60754-2)
General Specification
|
Connector A |
MTP/MPO |
Connector B |
MTP/MPO |
|
Fiber Mode |
OM5 50/125μm |
Wavelength |
1300/850nm |
|
MPO Connector Low loss IL |
≤0.35dB Max (0.20dB Typical) |
MPO Connector Standard loss IL |
≤0.7dB Max(0.40dB Typical) |
|
MPO Connector RL |
≥30dB |
MPO Connector Brand |
US Conec,Hankusan,Nissin |
|
MPO Housing Color |
Lime |
Jacket Color |
Lime |
|
100G WDM |
150M at 850nm |
40G WDM |
440M at 850nm |
|
Cable Jacket |
OFNR/OFNP/LSZH |
Fiber Count |
12/24 Fibers |
|
Jacket OD |
5.0mm double sheath |
Polarity |
A,B,C or Customized |
|
Storage Temperature |
-40 to +85°C |
Operating Temperature |
-20 to +70°C |

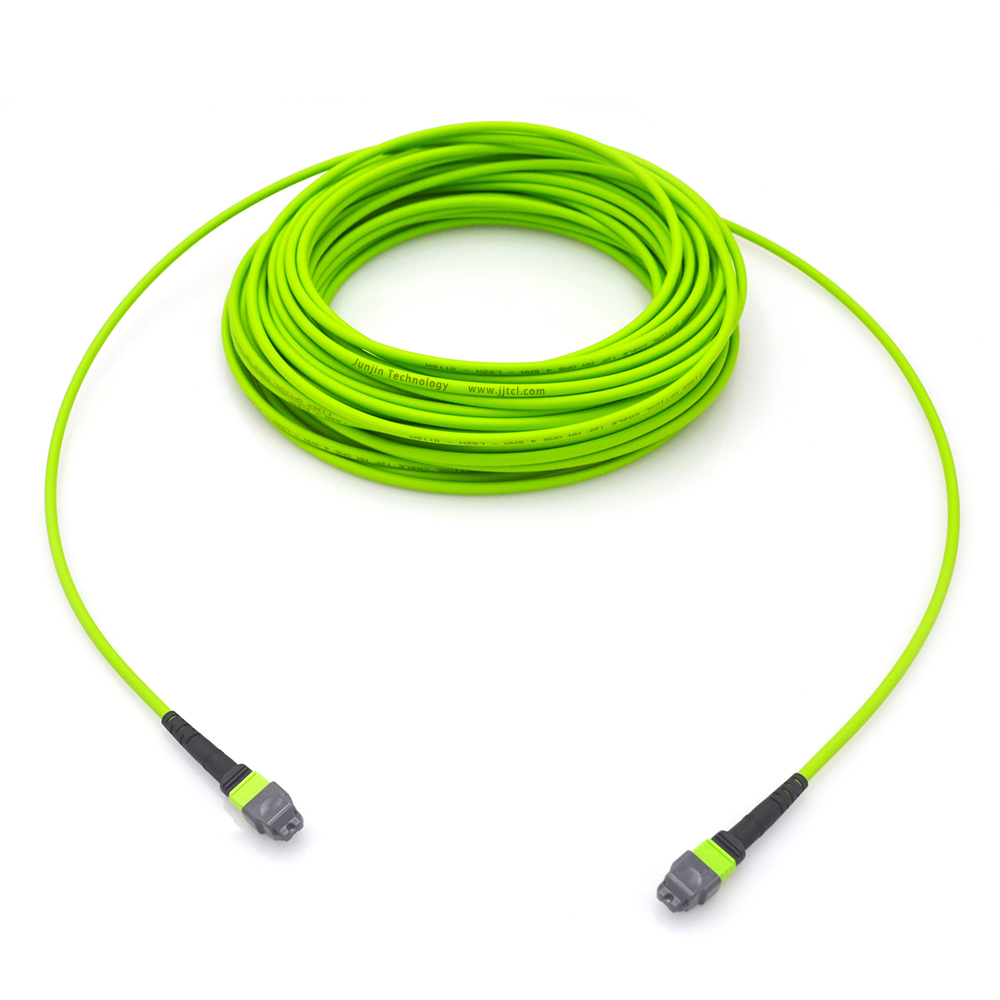

MPO Trunk cable 12F 24f OM5 Lime 5.0mm
