Basic Info
| Model No. | Fullaxs fiber optic patch cord |
| Brand Name | OEM |
| place of origin | China |
| Number of cores | 1 |
| Fiber Count | 1F |
| Fiber Type | G652D/G657A |
| Cable Jacket | LSZH/PE |
Product description
FullAXS Fiber-to-the-Antenna Connector next generation WIMAX technology features a Long Term Evolution fiber to antenna connection design.This allows for the usage of strong cable assemblies on the outdoors.
Direct connections allow for the cable assembles through the bulkhead construction to be plugged directly into the optical transceivers.
This accommodates a large Z tolerance, which allows the usage of the widest range of transceivers available on the market. End users now have the ability to choose from multiple transceivers.Plug directly into the optical transceivers though a bulkhead construction Excellent for Fiber To The Antenna (FTTA)Cable accessories and bulkheads.Excellent for outdoor installations
Features
· Open bulkhead for easy access to SFP
· Positive mechanical feedback to operator when fully mated
· One-hand mating ,Duplex LC interface
· Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open PRH for transceiver replacement)
· Robust bayonet locking for easy, fast, and secure mating
· Water proof, dust proof and corrosion resistant
· Expansion to RJ45 and Power possible
· Plug has tolerance free design, fully free floating on Z-axis
· No Cable buckling during or after installatoin
· Cost effective metal die cast bulkhead
· Field installable version available
Applications
· WiMAX and LTE Base Stations
· Remote Radio Heads (RRH)
· Industrial outdoor applications
· Robotics
· Aerospace & Defense
Specification
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||

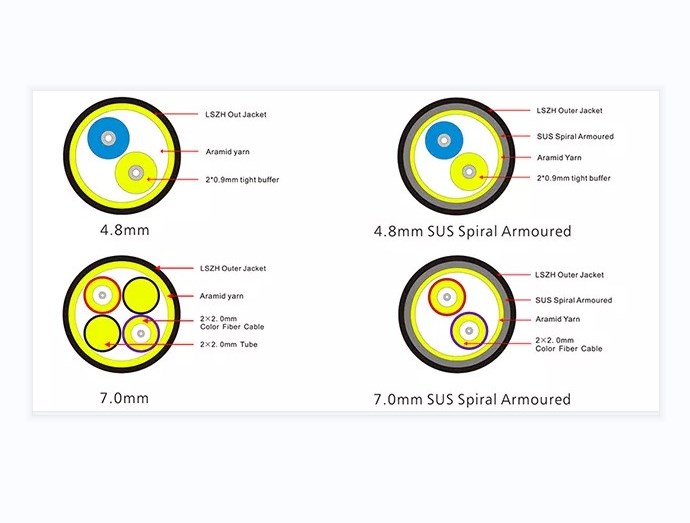

Cable Structure

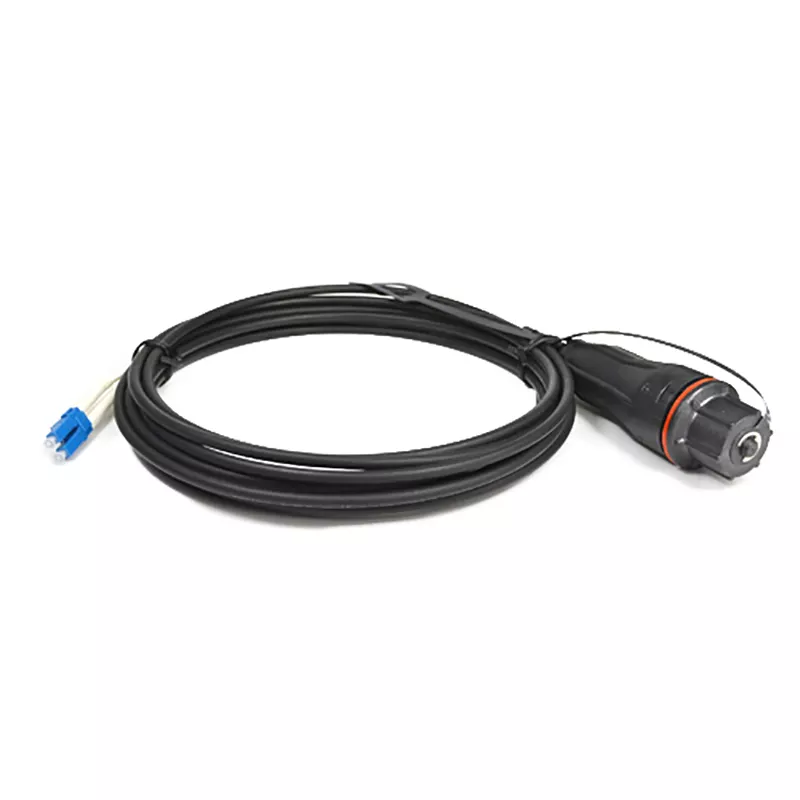

FTTA Outdoor Fullaxs fiber optic patch cord
