Basic Info
| Model No. | FTTA NSN Patch Cord |
| Brand Name | OEM |
| place of origin | China |
| Number of cores | 1 |
| Fiber Count | 2F |
| Fiber Type | G652D/G657A |
| Cable Jacket | LSZH/PE |
Product description

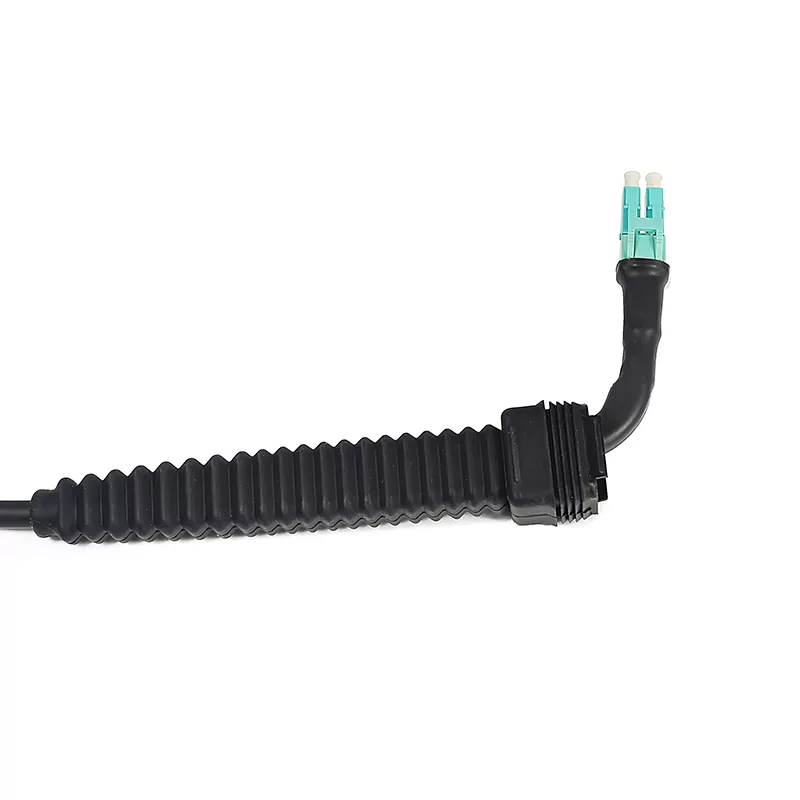

NSN RRU(RRH) and Baseband Uniboot with Rubber Boot Duplex Patch Cord.This type patch cable used in FTTA base station.With waterproof connector for outdoor use.Easy, reliable and cost-effective installation.
Features

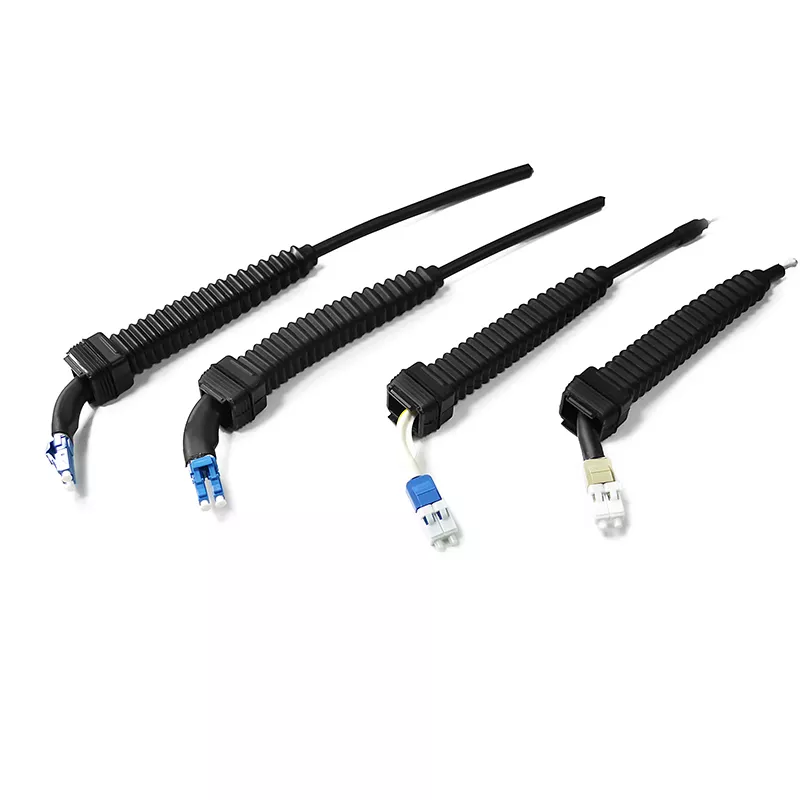

1.Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism
2.IP68 protection, salt-mist proof, and EMI protection
3.High shock, vibration, and mechanical resistance
4.Broad temperature range and wide range of indoor and outdoor cables
5.Easy, reliable and cost-effective installation
Application
1.Harsh environments where chemicals, corrosive gases and liquids are commonplace
2.Inside and outside industrial plant and equipment that interface with industrial Ethernet networks
3.Remote interface applications such as towers and antennae as well as FTTX in PON and at the home applications
4.Mobile routers and internet hardware
Specification
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||
Cable Structure

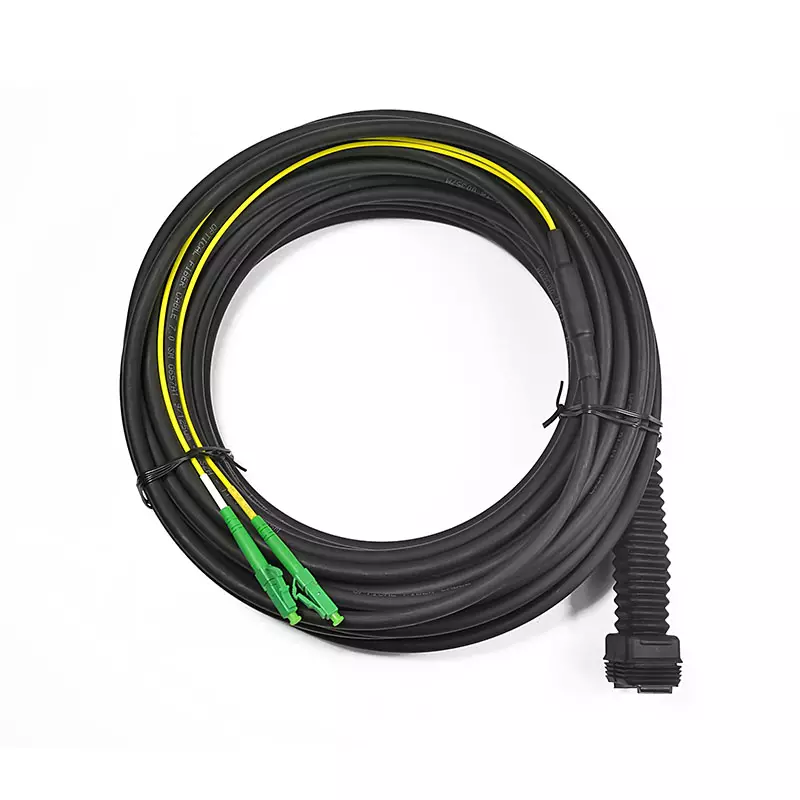

FTTA NSN LC-LC fiber Optic Outdoor Patch Cord
