Basic Info
| Model No. | ODVA Patch Cord |
| Brand Name | OEM |
| place of origin | China |
| Number of cores | 1 |
| Fiber Type | G652D/G657A |
| Cable Jacket | LSZH/PE |
| Fiber Count | 2F |
Product description

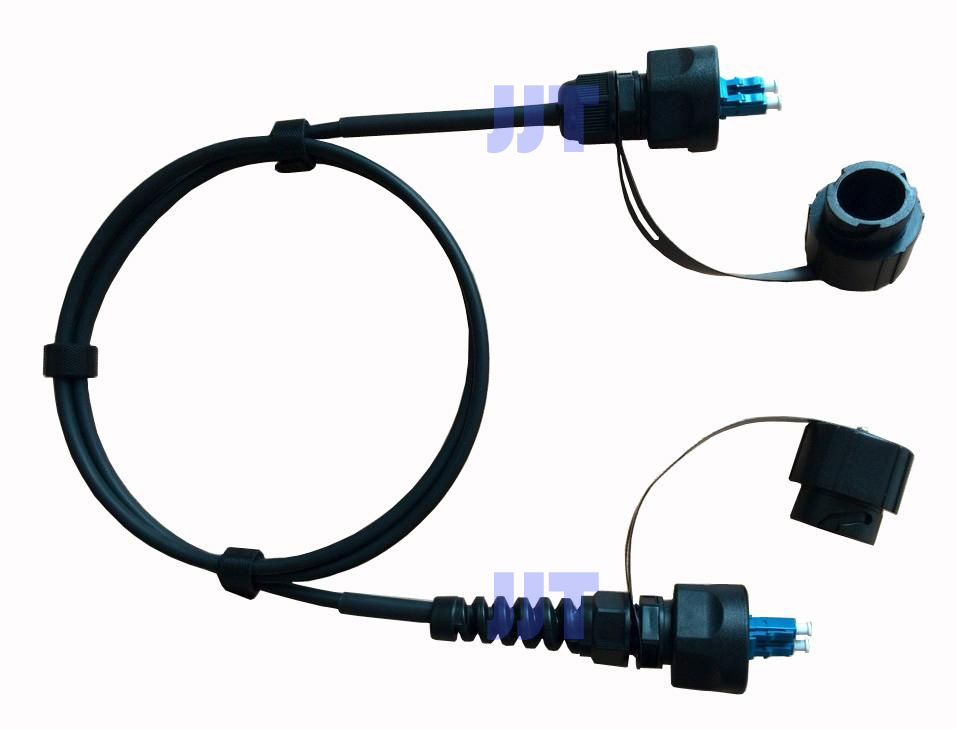

The ODVA-LC connectors,together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications.The product however,is not limited to the above applications.The ODVA-LC cable assemblies have passed tests like salt mist,vibration and shock and meet protection class IP67.They are well suited for Industrial and Aerospace and Defense.
Applications&Features
● Standard DuplexLC connector, well connected with standard LC adaptor
● Available Single mode and Multimode
● IP67 protection, salt-mist proof, humidity proof, dust proof
● Aluminum housing, compact design
● Broad temperature range and wide range of indoor and outdoor cables
● Easy Operation, reliable and cost-effective Installation Specifications
Specification
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||
GYFJH 7.0mm fiber cable Specification
|
Item |
Item |
|
Fiber |
Single mode G.657A1 or G.657A2 |
|
Fiber diameter |
7.0mm |
|
Material & color for jacket |
Black color, LSZH jacket |
|
Tension member |
Aramid Yarn |
|
Max. attenuation |
≤ 0.4dB/km at 1310nm ≤0.3dB/km at 1550nm |
|
Tensile resistance(short term) |
500N(no breakage) |
|
Crush resistance(short/long term) |
1000N/100mm |
|
Inflaming retarding |
IEC 60332-3 |
|
Temperature |
-40~+70°C |
|
Authentication |
Meet with RoHS & UL |
ODVA LC/SC/MPO Fiber Optic Patch Cord
