Basic Info
| Model No. | PDLC-DLC Patch Cord |
| Brand Name | OEM |
| place of origin | China |
| Number of cores | 1 |
| Fiber Type | G652D/G657A |
| Cable Jacket | LSZH/PE |
| Fiber Count | 2F |
Product description

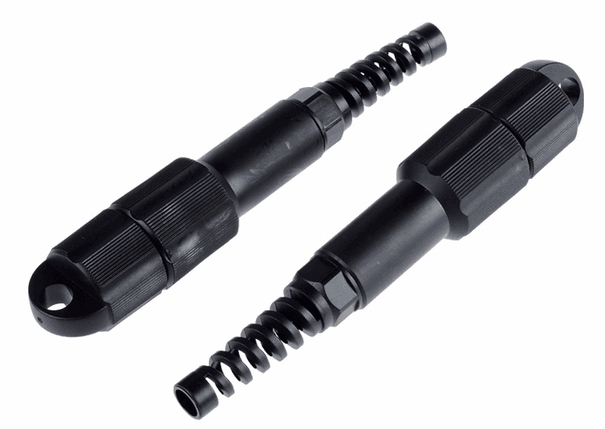

PDLC Waterproof fiber optic patch cord has standard size for Duplex LC Connectors,and the outer housing with metal protective device.
The connecting is safe and reliable.Also have the functions of waterproof, dustpoof.
PDLC fiber patch cord is widely used in FTTA,Base station,and the outdoor waterpoof condition.
Features
Standard Duplex LC connector, well connected with standard LC adaptor
Broad temperature range and wide range of indoor and outdoor cables
Easy Operation, reliable and cost-effective Installation
IP67 protection, salt-mist proof, humidity proof,dust proof
Available Single mode and Multimode
Light weight,waterproof, dustproof, moistureproof , Metal hard housing.
Wall seal design,easy operation, strong and durable.
Applications
Telecommunication networks
Used in connecting commnication equipment
Used in FTTA
Used in bad outdoor condition
Specification
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||
GYFJH 7.0mm fiber cable Specification
|
Item |
Item |
|
Fiber |
Single mode G.657A1 or G.657A2 |
|
Fiber diameter |
7.0mm |
|
Material & color for jacket |
Black color, LSZH jacket |
|
Tension member |
Aramid Yarn |
|
Max. attenuation |
≤ 0.4dB/km at 1310nm ≤0.3dB/km at 1550nm |
|
Tensile resistance(short term) |
500N(no breakage) |
|
Crush resistance(short/long term) |
1000N/100mm |
|
Inflaming retarding |
IEC 60332-3 |
|
Temperature |
-40~+70°C |
|
Authentication |
Meet with RoHS & UL |
FTTA Outdoor PDLC-DLC Waterproof Patch Cord
