Basic Info
| Model No. | FTTA CPRI Fiber Optic Patch Cord |
| Brand Name | OEM |
| place of origin | China |
| Number of cores | 1 |
| Fiber Type | G652D/G657A |
| Cable Jacket | LSZH/PE |
| Fiber Count | 2F |
Product description

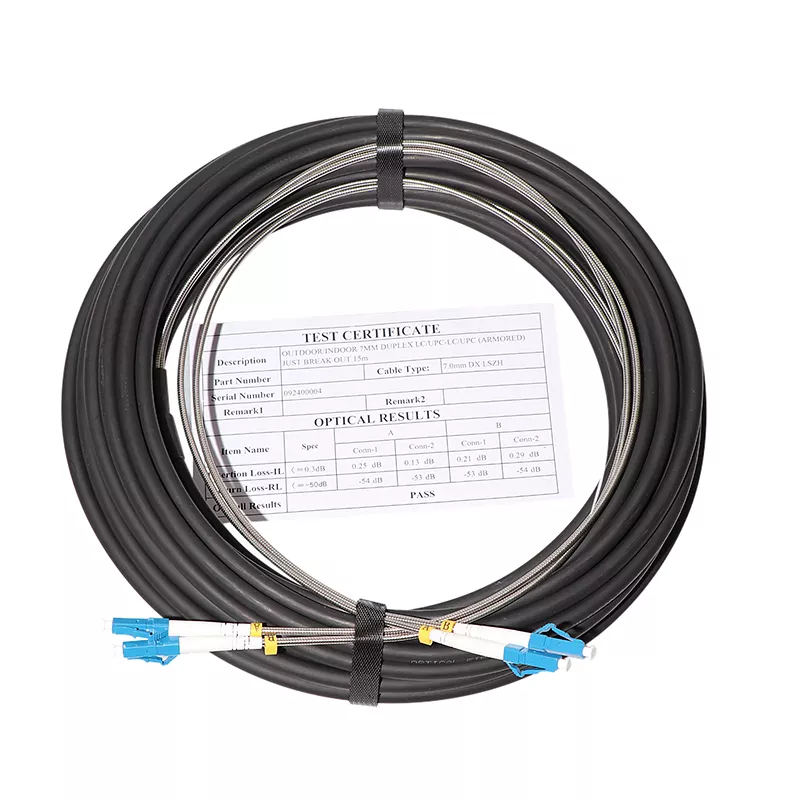

Waterproof Outdoor Duplex LC Single Mode 2 Core CPRI Armored/Unarmored Fiber Optic Patch Cord.The fiber to the antenna remote base station patch cable, consists of Duplex LC with amored outer housing to withstand harsh environment conditions when being used in outdoor application,duplex round far transmittion outdoor cable(water blocking aramid yarns and UV resistant black out jacket),sometimes with pulling eye. Her LC open bulkhead for easy access to SFP Module to realize the singal path from BBU to RRU.
APPLICATION
Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications
FEATURES
Easily add/install jumper cables for a future expansion
Factory-assembled cables for a fast on-site installation
IP67 water and dust protection
Flexibility with small bending radius and excellent cable routing properties
Equipped with customer specific power and fiber-optic connectors
Features
Standard Duplex LC connector, well connected with standard LC adaptor
Broad temperature range and wide range of indoor and outdoor cables
Easy Operation, reliable and cost-effective Installation
IP67 protection, salt-mist proof, humidity proof,dust proof
Available Single mode and Multimode
Light weight,waterproof, dustproof, moistureproof , Metal hard housing.
Wall seal design,easy operation, strong and durable.
Applications
Telecommunication networks
Used in connecting commnication equipment
Used in FTTA
Used in bad outdoor condition
Specification
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||
GYFJH 7.0mm fiber cable Specification
|
Item |
Item |
|
Fiber |
Single mode G.657A1 or G.657A2 |
|
Fiber diameter |
7.0mm |
|
Material & color for jacket |
Black color, LSZH jacket |
|
Tension member |
Aramid Yarn |
|
Max. attenuation |
≤ 0.4dB/km at 1310nm ≤0.3dB/km at 1550nm |
|
Tensile resistance(short term) |
500N(no breakage) |
|
Crush resistance(short/long term) |
1000N/100mm |
|
Inflaming retarding |
IEC 60332-3 |
|
Temperature |
-40~+70°C |
|
Authentication |
Meet with RoHS & UL |
Outdoor 2 Core CPRI Fiber Optic Patch Cord
