Basic Info
| Model No. | LC 24F pre-terminated distribution cable |
| Brand Name | oem |
| Jacket Color | 12 colors |
| Fiber Count | 24F |
| Jacket Material | LSZH OFNR OFNP TPU |
| Breakout OD | 0.9mm |
| Insertion Loss | ≤0.3dB |
| Return Loss | UPC≥50dB, APC≥60dB |
| Connector Type | LCUPC |
| Main Cable OD | 8.4mm |
| Fiber Type | MM |
Product description

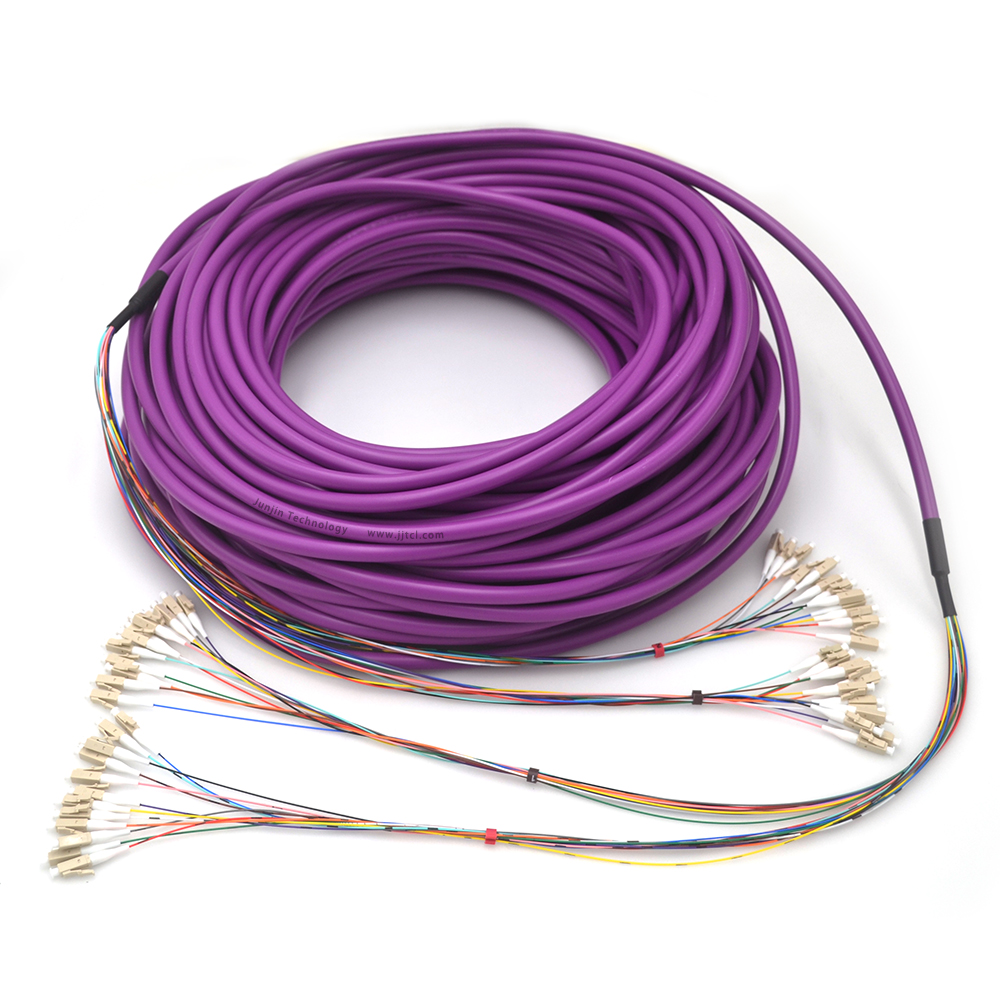

24F 8.4mm LCUPC-LCUPC Multimode OM4 Pre-Terminated Distribution Cable.Customized OFNP Jacket with Corning Fiber.
This Type Pre-terminated indoor/outdoor fiber cable assembly is designed to support today's data needs while meeting tomorrow's ever-advancing network requirements.
It's ideal for connecting the networks of two buildings through the use of an underground conduit, also installed in entrance facilities.
Applications
Data processing networks
Optical access network
Telecommunication networks
Fiber optic communication networks
CATV, LAN, WAN, Test &Measurement
Complied Standards
IL&RL TESTING:Compliant with IEC 61300-3-34 GEOMETRICAL CHARACHTERISTICS:Compliant with IEC 61755-3-1,Connector End face:Compliant with IEC 61300-3-35.Fire resistance comply with low smoking (IEC 61034), halogen free (IEC 60754-1), flame retardant (IEC 60332-1-2), and corrosion proof (IEC 60754-2)
General Specification
|
ConnectorType |
LC/SC/ST/FC |
Polish Type |
UPC/APC |
|
Fiber |
SM OM1 OM2 OM3 OM4 OM5 |
Fiber Count |
24 Fibers |
|
Jacket Material |
LSZH OFNR OFNP TPU |
Minimum Bend Radius |
20/10D (Dynamic/Static) |
|
Jacket Color |
12 colors |
Main Cable OD |
8.4mm |
|
Breakout OD |
0.9mm |
Return Loss |
UPC≥50dB, APC≥60dB |
|
Insertion Loss |
≤0.3dB |
Max. Tension of Pulling Eye |
245N |
|
Cable Type |
Distribution Cable |
Operating Temperature |
-20~70°C |
Cable Structure
LC 24F 8.4MM pre-terminated distribution cable
